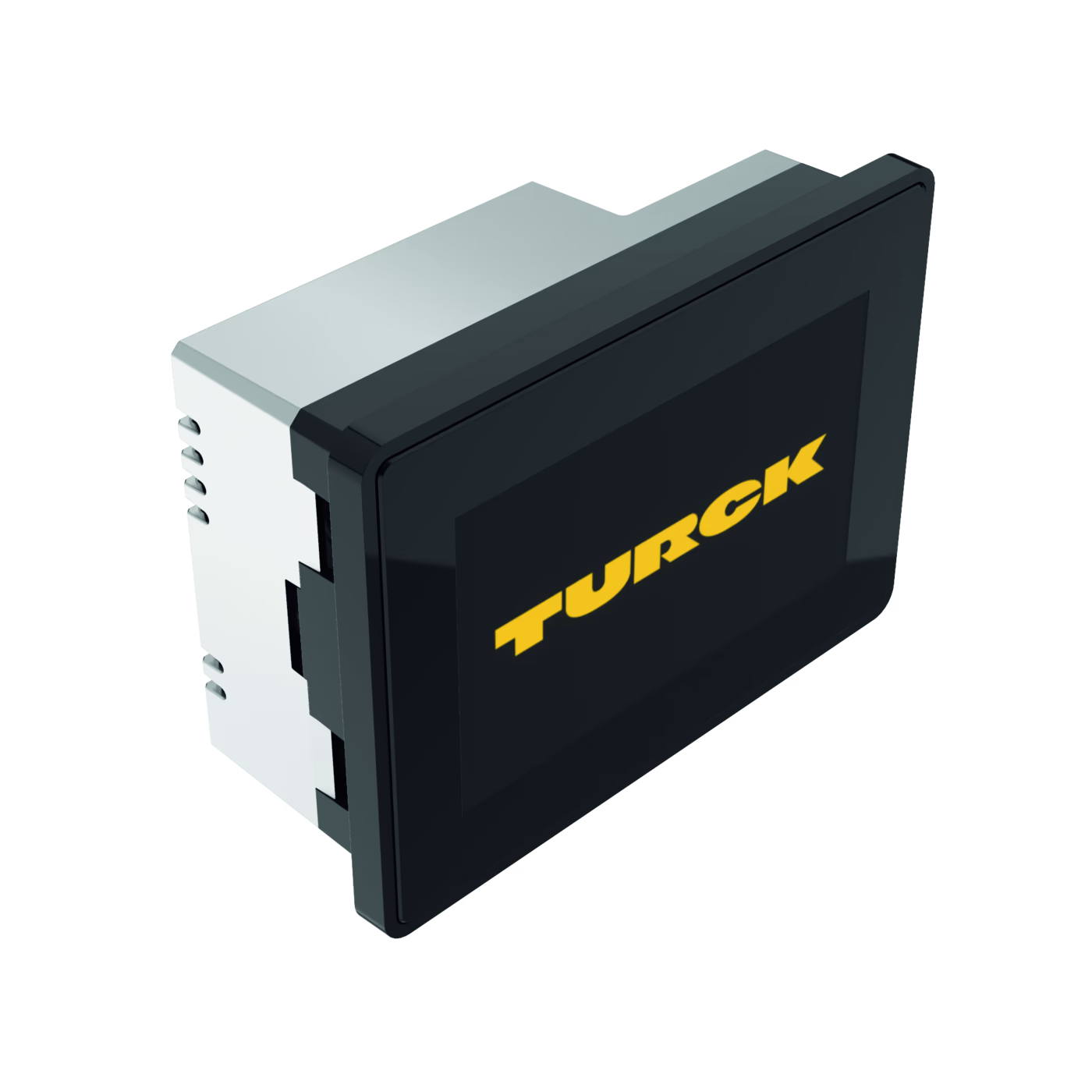

TX700 HMI/PLC Series TX705-P3CV01
TX700 HMI/PLC Series
| Application area | Factory Automation |
|---|---|
| Approvals | CE, cULus, DNV GL, LR |
| Device function | HMI/PLC |
| Device type | Cloud Gateway, Industrial Control |
| Dimensions | 107 mm x 147 mm x 52 mm |
| Dimmable | Yes |
| Fieldbus master | PROFINET |
| Fieldbus slave | Modbus TCP |
| Programming | CODESYS V3 |
| Protection class | IP20 rear, IP66 front |
| Resolution | 800×480 pixels Pixel |
| Diagonal screen size ? | 5 |
| Radio interface | Optionally expandable |
| Touchscreen | Capacitive, Glass front |
