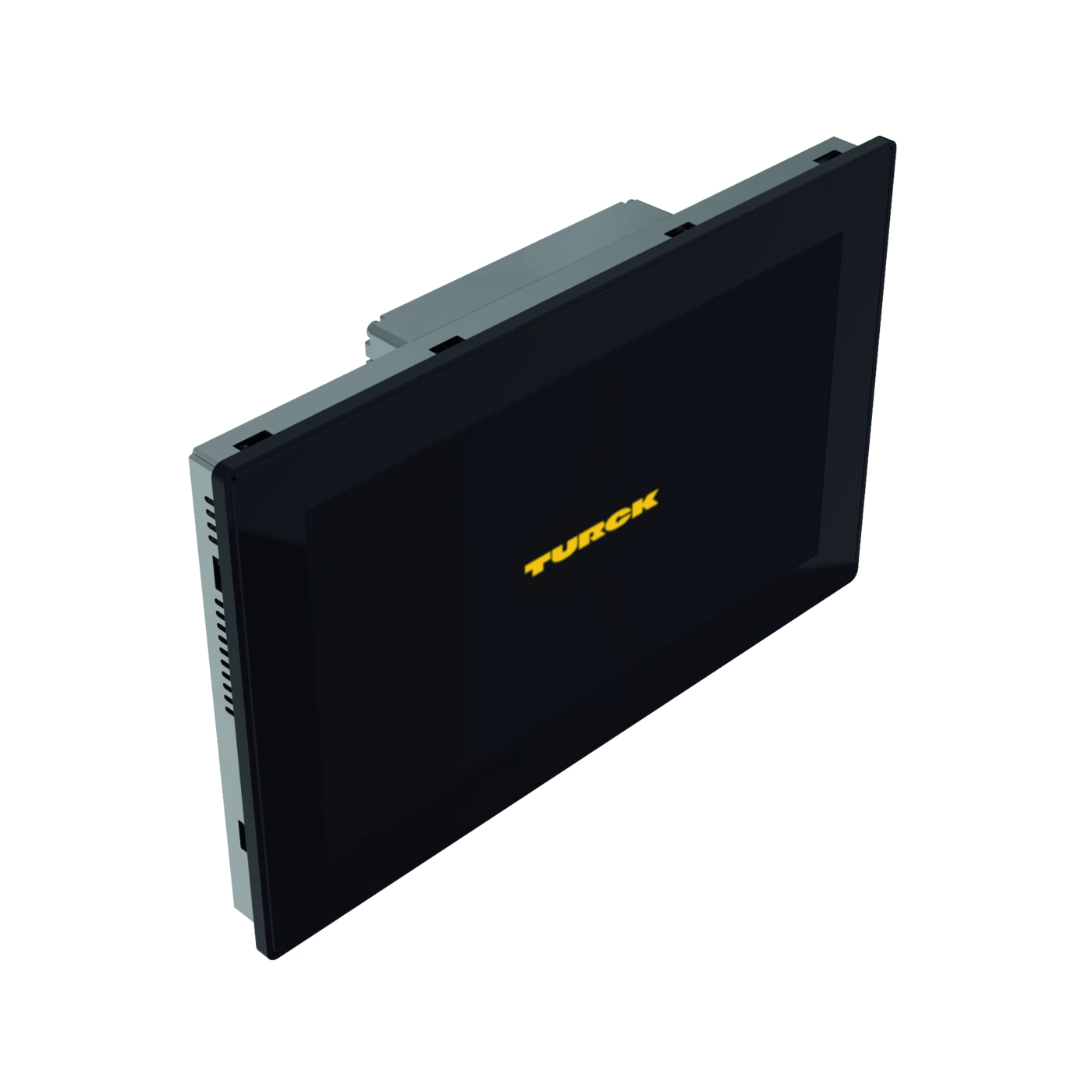

TX800 HMI/PLC Product Series TX815-P3CV01
TX800 HMI/PLC Product Series
| Application area | Factory Automation |
|---|---|
| Approvals | CE, cULus, DNV |
| Device function | HMI/PLC |
| Device type | Cloud Gateway, Industrial Control |
| Dimensions | 267 mm x 422 mm x 56 mm |
| Dimmable | Yes |
| Fieldbus master | PROFINET |
| Fieldbus slave | Modbus TCP |
| Programming | CODESYS V3 |
| Protection class | IP20 rear, IP66 front |
| Resolution | 1366×768 pixels Pixel |
| Diagonal screen size ? | 15.6 |
| Radio interface | Optionally expandable |
| Touchscreen | Capacitive, Glass front |
