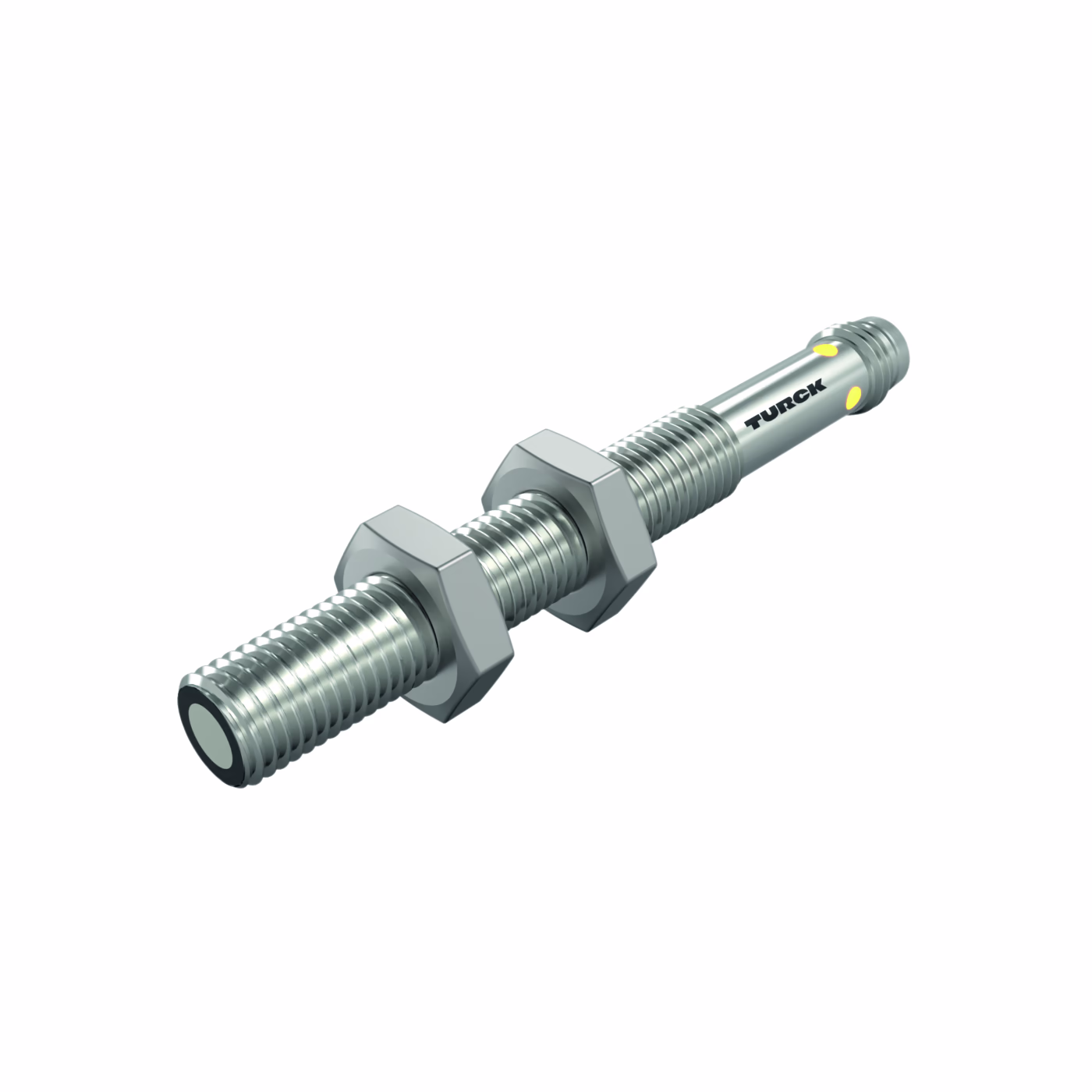

Ultrasonic Sensor RU10L-M08-UN8X-V1141
Ultrasonic Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | |
| Communication protocol | IO-Link |
| Connector type | M8 x 1 |
| Design | Threaded barrel |
| Detection type | contactless |
| Dimensions | 8 mm x 70 mm |
| Electrical output | Connector |
| Function | Retroreflective Sensor |
| Housing material | Metal |
| Housing quality | CuZn |
| Max. range (mm) | 100 |
| Measuring principle | Ultrasonic |
| Medium | Bulk goods, liquids |
| Operating mode | Time-of-Flight |
| Output function | NPN |
| Protection class | IP67 |
| Resolution | 0.2 mm |
| Setting option | IO-Link, Remote Teach |
| Special features | Compact |
| Switching element function | NO/NC |
