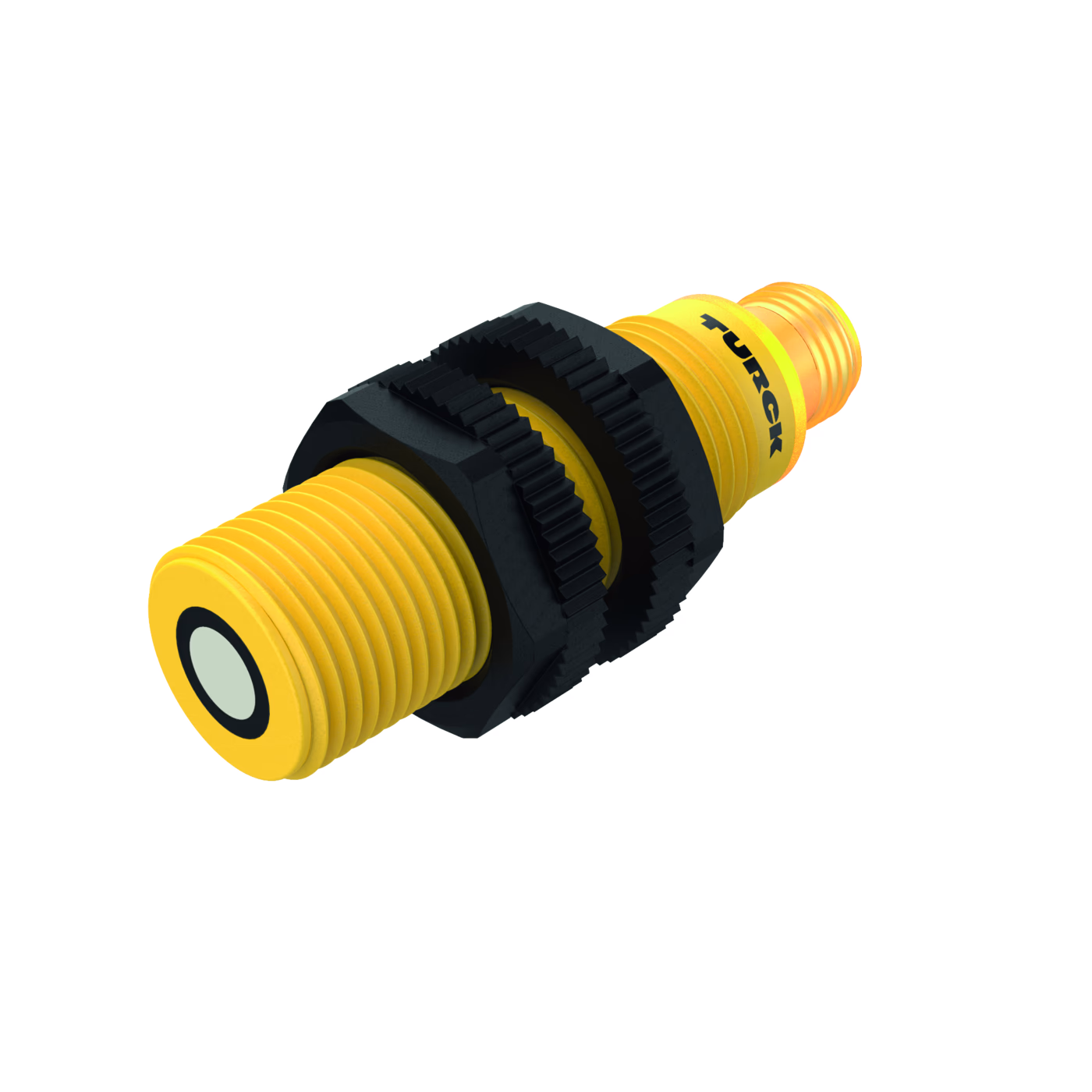

Ultrasonic Sensor RU50U-S18-AP8X-H1141
Ultrasonic Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connector type | M12 × 1 |
| Design | Threaded barrel |
| Detection type | contactless |
| Dimensions | 18 mm x 62 mm |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | LCP |
| Max. range (mm) | 500 |
| Measuring principle | Ultrasonic |
| Medium | Bulk goods, liquids |
| Operating mode | Time-of-Flight |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | Epoxy |
| Radiation direction | straight |
| Resolution | 0.2 mm |
| Setting option | Remote Teach |
| Special features | Compact |
| Switching element function | NO contact |
