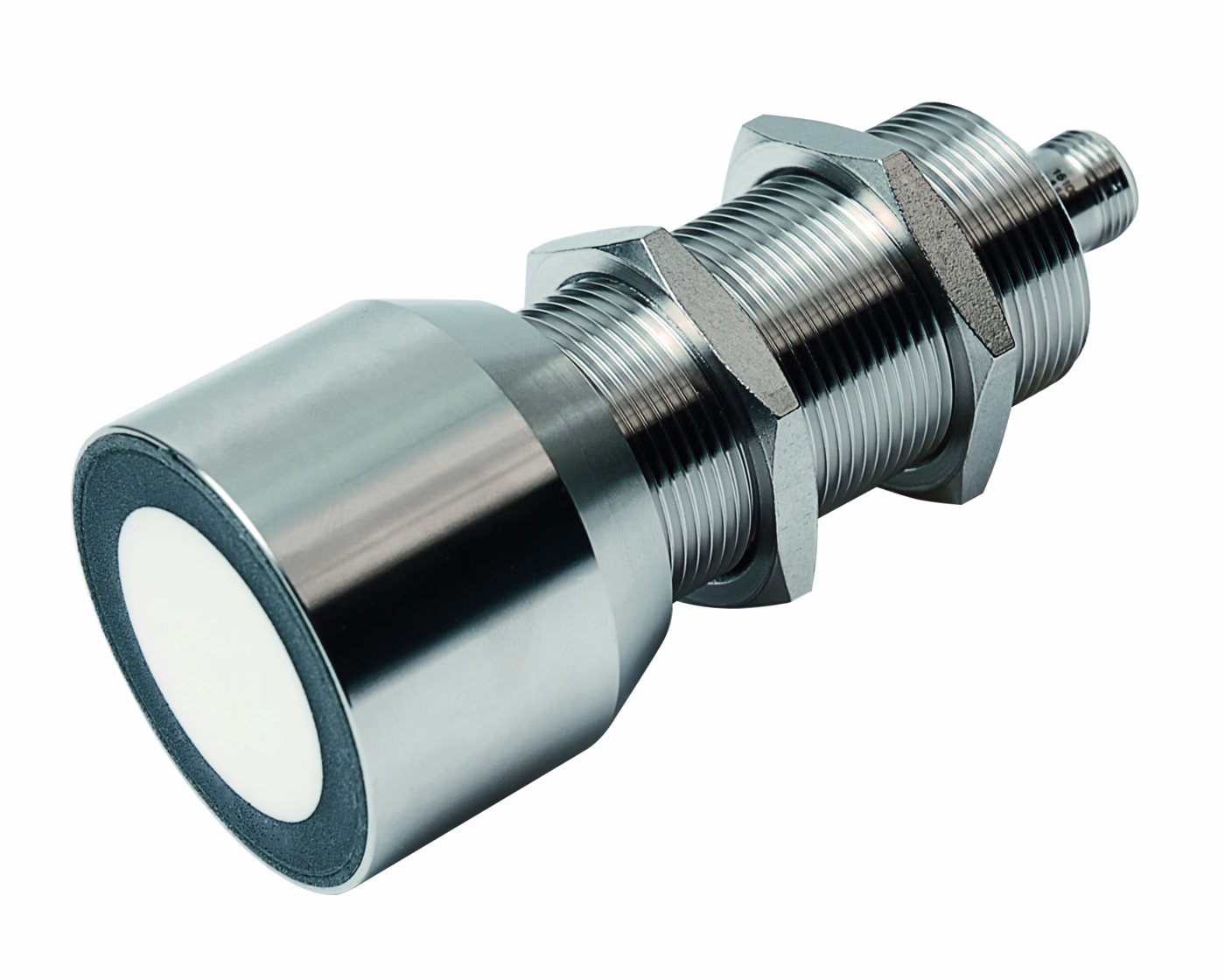

Ultrasonic Sensor RU600U-M30M-2AP8X2-H1151
Ultrasonic Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Threaded barrel |
| Detection type | contactless |
| Dimensions | 44.7 mm x 104.3 mm |
| Electrical output | Connector |
| Function | Proximity switch |
| Housing material | Metal |
| Housing quality | CuZn |
| Max. range (mm) | 6000 |
| Measuring principle | Ultrasonic |
| Medium | Bulk goods, liquids |
| Operating mode | Time-of-Flight |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | Epoxy |
| Radiation direction | straight |
| Resolution | 1 cm |
| Setting option | IO-Link, Remote Teach |
| Special features | Teach input |
| Switching element function | NO/NC |
