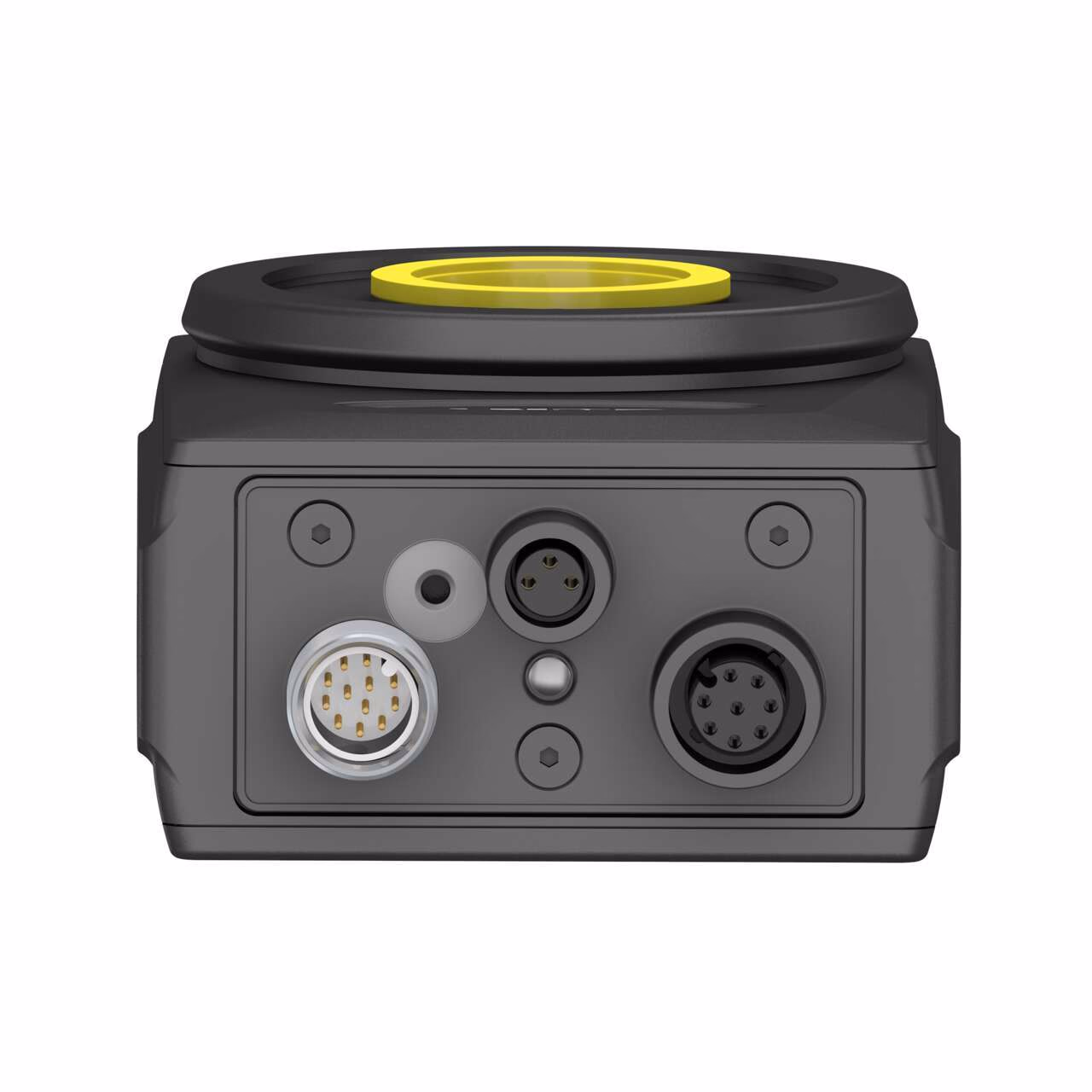

VE Smart Camera – Banner – VE202G1A
VE Series Smart Camera for Vision
Pixels: 1600 x 1200
I/O: 6 Optically Isolated
Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens
| Device type | Vision |
|---|---|
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Feature | PC Interface, Washdown Rated |
| Item Status | RELEASED |
| Network protocol | No |
| PROFINET | Yes |
| Protection class shaft | IP67 |
| Receptacle housing material B | Aluminum |
| RS-232 | Yes |
| USB | No |
| PCCC | Yes |
| RS-422 | No |
| Camera Housing Size (HxWxL mm) | 88 x 67 x 41 |
| Imager Type | Grayscale |
| FTP | Yes |
| Autofocus | No |
| Lens (mm) | C-Mount |
| Image Resolution | 1600 x 1200 pixels |
| Options Available | Modbus |
Description
VE Series Smart Camera for Vision
Pixels: 1600 x 1200
I/O: 6 Optically Isolated
Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens
