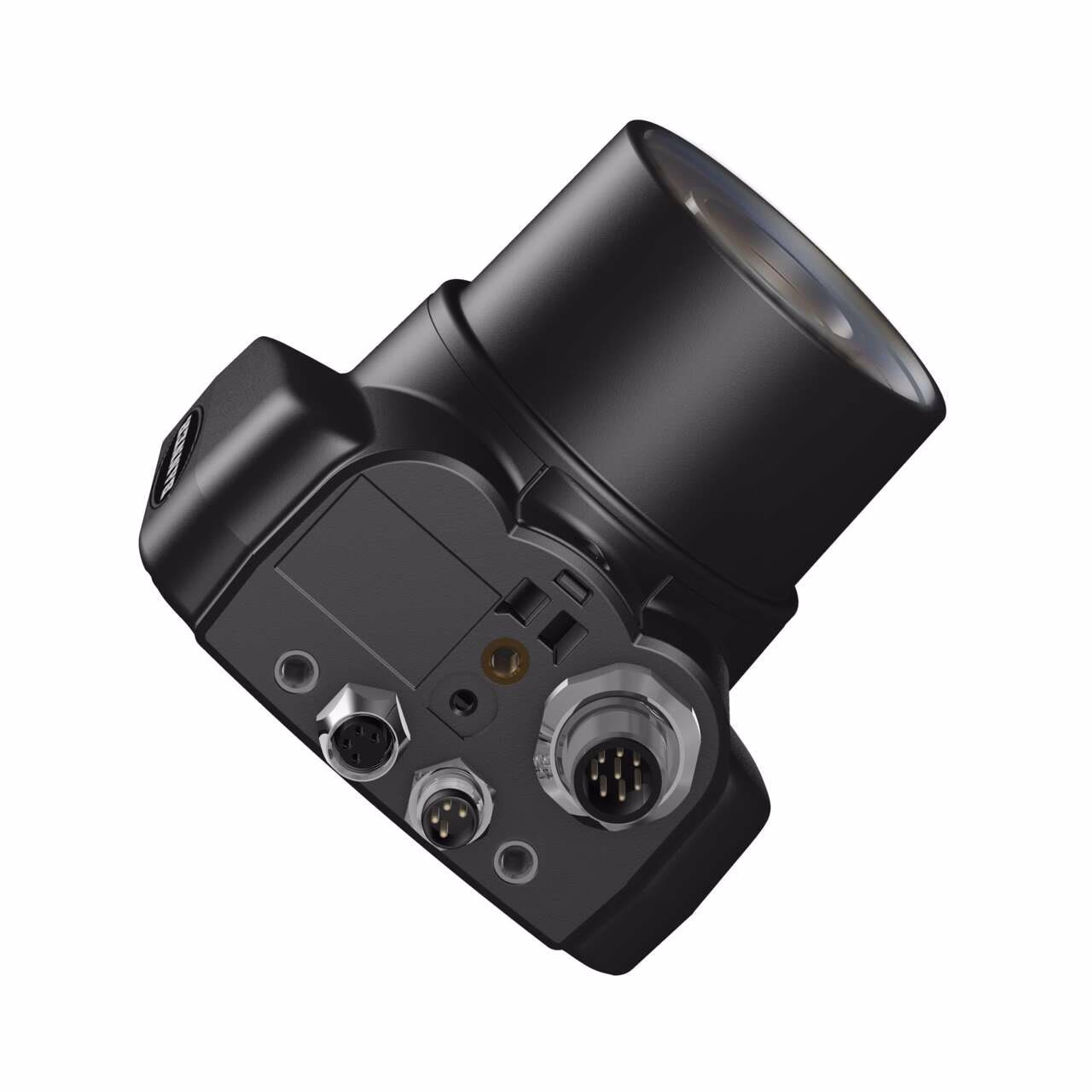

Vision Sensor: iVu Series – Banner – IVU2PTGXC
iVu PLUS TG Gen2 Sensor with Ethernet
For C-Mount Lens
Requires Power Cordset and Bracket
Ethernet and USB Cordset Optional
| Device type | Vision |
|---|---|
| EtherNet/IP | Yes |
| Feature | PC Interface, Touchscreen Interface, Washdown Rated |
| Item Status | RELEASED |
| Network protocol | No |
| PROFINET | Yes |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| RS-232 | Yes |
| USB | No |
| PCCC | Yes |
| RS-422 | No |
| Camera Housing Size (HxWxL mm) | 79 x 81 x 52 |
| Imager Type | Grayscale |
| FTP | No |
| Autofocus | No |
| Lens (mm) | C-Mount |
| Image Resolution | 752 x 480 pixels |
| Light Color | No Light |
| Touchscreen Display | Integrated |
| Options Available | Modbus |
Description
iVu PLUS TG Gen2 Sensor with Ethernet
For C-Mount Lens
Requires Power Cordset and Bracket
Ethernet and USB Cordset Optional
