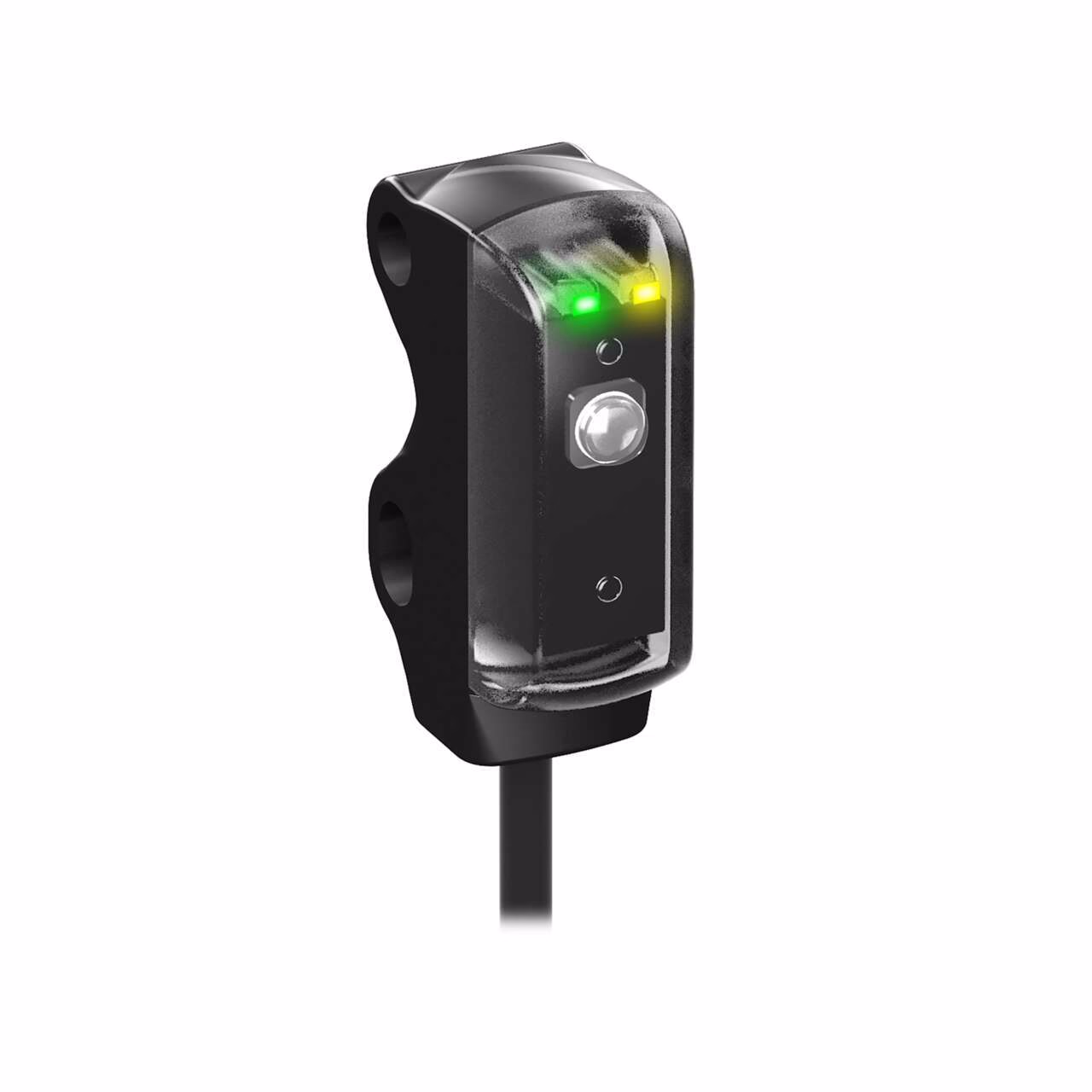

VS3 Series Miniature Sensor With Advanced Optics – Banner – VS3AP5XLV
VS3 Series: Non-Polarized Retro
Range: 250 mm; Input: 10-30 V dc
Output: PNP Light Operate
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Retroreflective |
| Connection technology signal | Non-Polarized |
| DeviceNet | No |
| Homerun Exit Location | 1 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 150 |
| Max Sensing Distance (mm) | 250 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 80% @ 50°C |
| Repeatability (µs) | 160 |
Description
VS3 Series: Non-Polarized Retro
Range: 250 mm; Input: 10-30 V dc
Output: PNP Light Operate
2 m (6.5 ft) Cable
