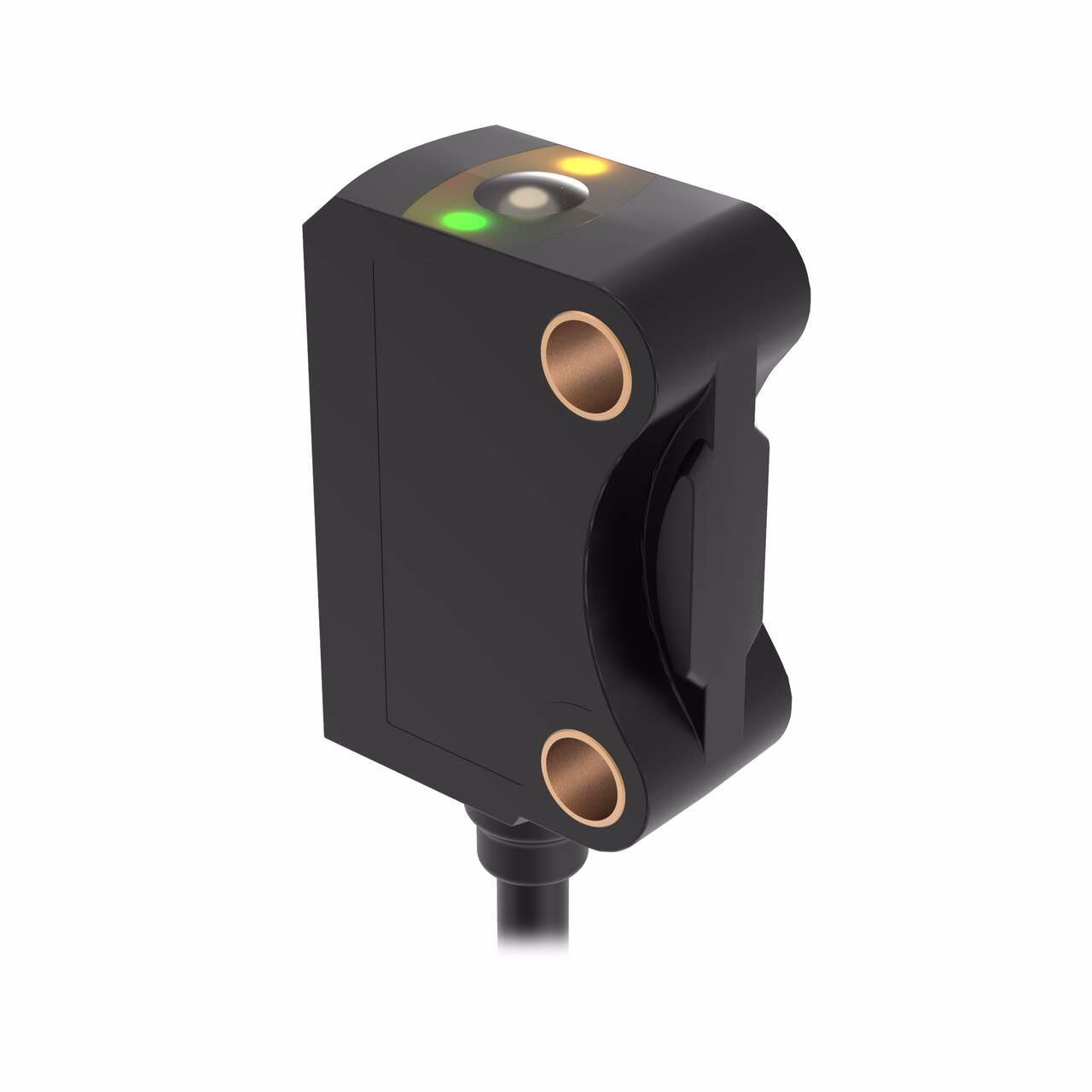

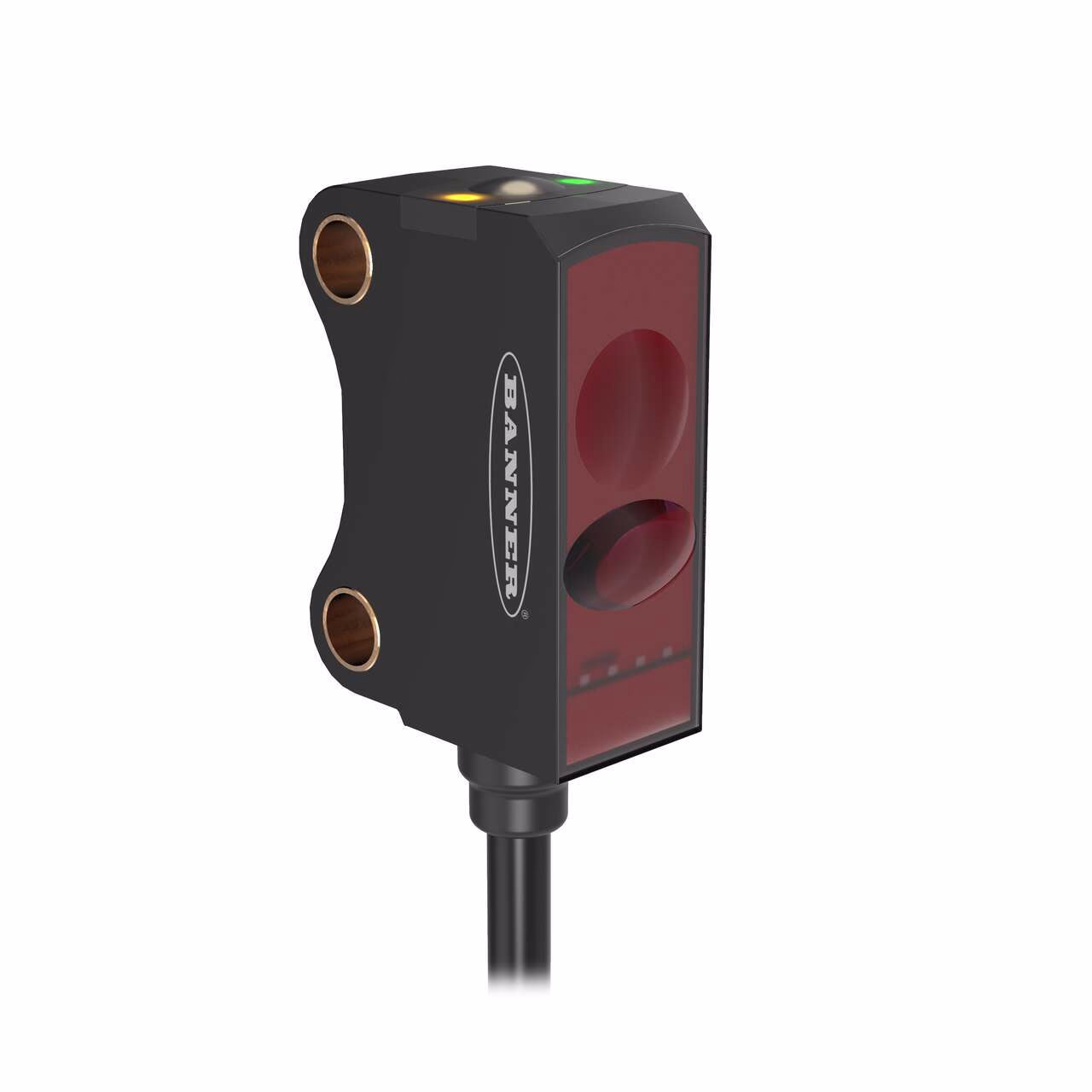

VS8 Series Miniature Sensor for Precise Detection – Banner – VS8APFF30
VS8 Series: Fixed Field
Range: 2 mm to 30 mm; Input: 10-30 V dc
Output: PNP
4-conductor 2 m Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Background Suppression (Fixed) |
| DeviceNet | No |
| Homerun Exit Location | 0.5 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PUR |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 650 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 300 |
| Max Sensing Distance (mm) | 30 |
| Max Op. Temp. (C) | 60 |
| Small Visible Spot | LED |
Description
VS8 Series: Fixed Field
Range: 2 mm to 30 mm; Input: 10-30 V dc
Output: PNP
4-conductor 2 m Cable
