VTB Series Verification Pick-To-Light Touch Buttons – Banner – VTBP6YQ-816493

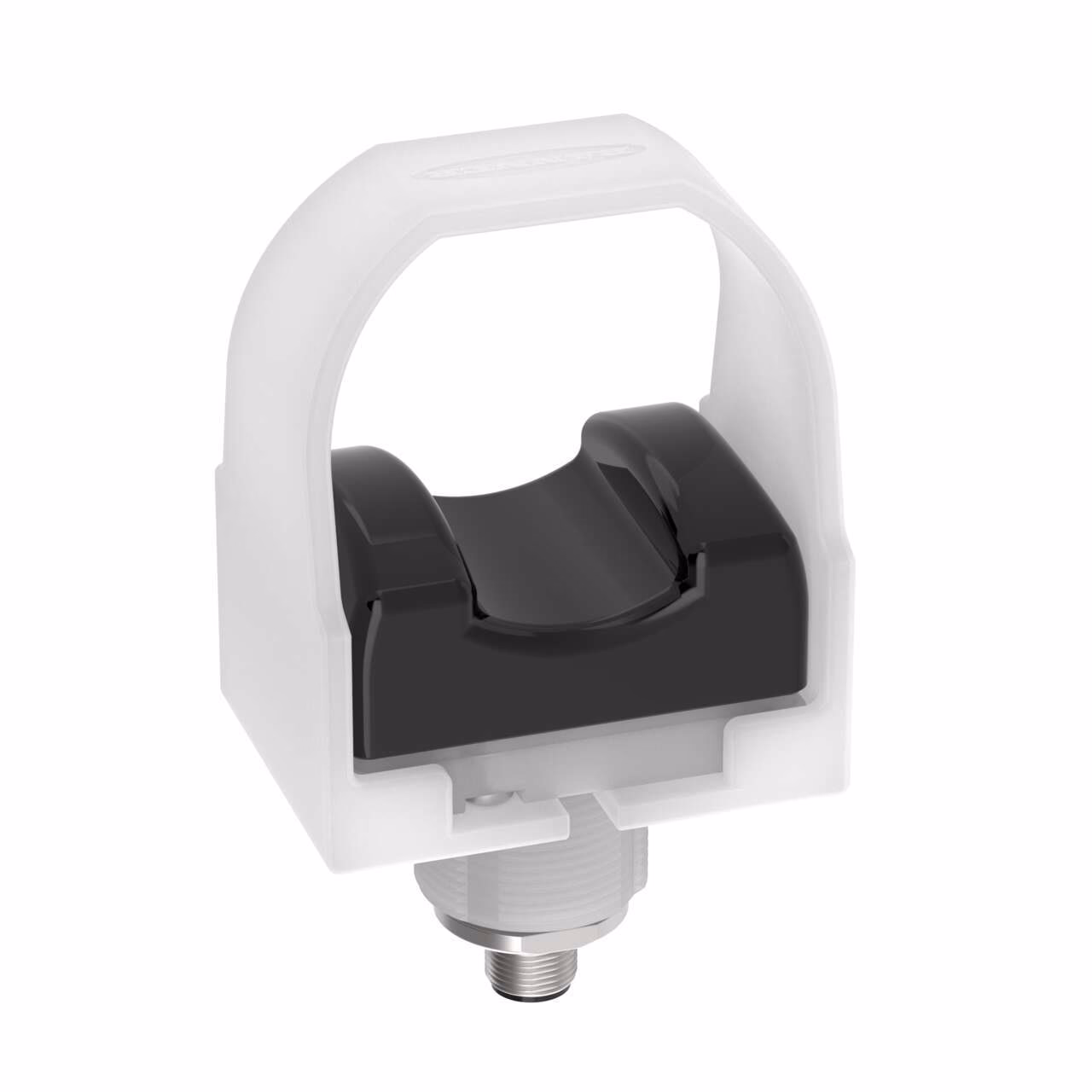

VTB Series: Verification Touch Button 1-Color
Input: 12-30 V dc; Upper Housing: Polysulfone; No Field Cover
Output: PNP; Job Light Input: +10-30 V dc; Color: Yellow
4-pin M12 Integral QD
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Sensing Mode (General) | Single Point Optical |
| Actuation | Yes |
| Animation Option 1 | Multiple |
| Button Operation | Momentary |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Yellow |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Saddle |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 55°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of beams | 1.0 |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating mode | Optical |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | PNP |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 59.9 x 43.2 x 48.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66 |
| Radio interface | No |
| Receptacle housing material B | Thermoplastic Polysulfone |
| Touchscreen | No |
| USB | No |
| Product Size (mm) | Other |
| Max Current Color (mA) | 120.0 |
| Storage Temp (C) | -40 to 70 |
| Max Output Response Time (ms) | 100.0 |
Description
VTB Series: Verification Touch Button 1-Color
Input: 12-30 V dc; Upper Housing: Polysulfone; No Field Cover
Output: PNP; Job Light Input: +10-30 V dc; Color: Yellow
4-pin M12 Integral QD
