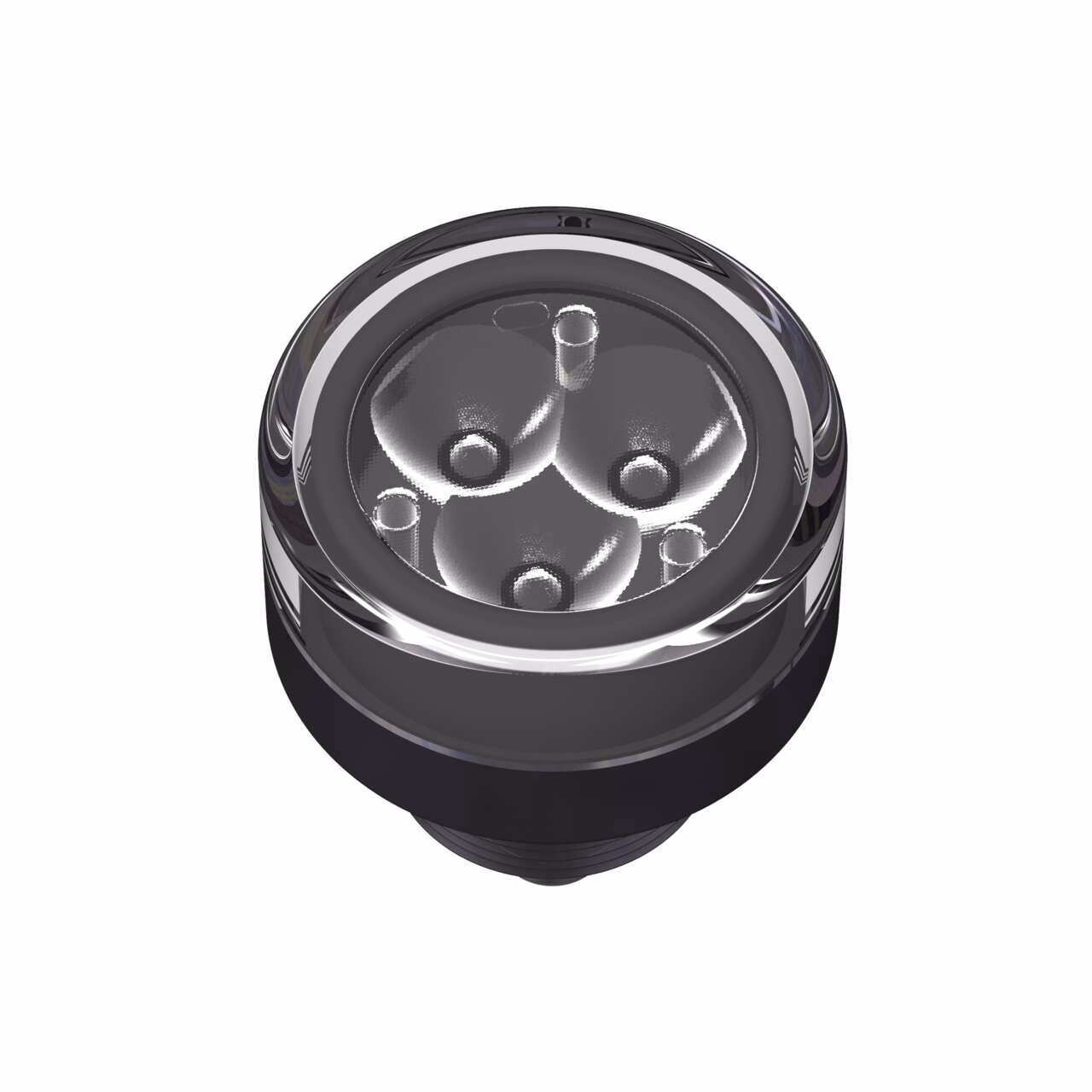

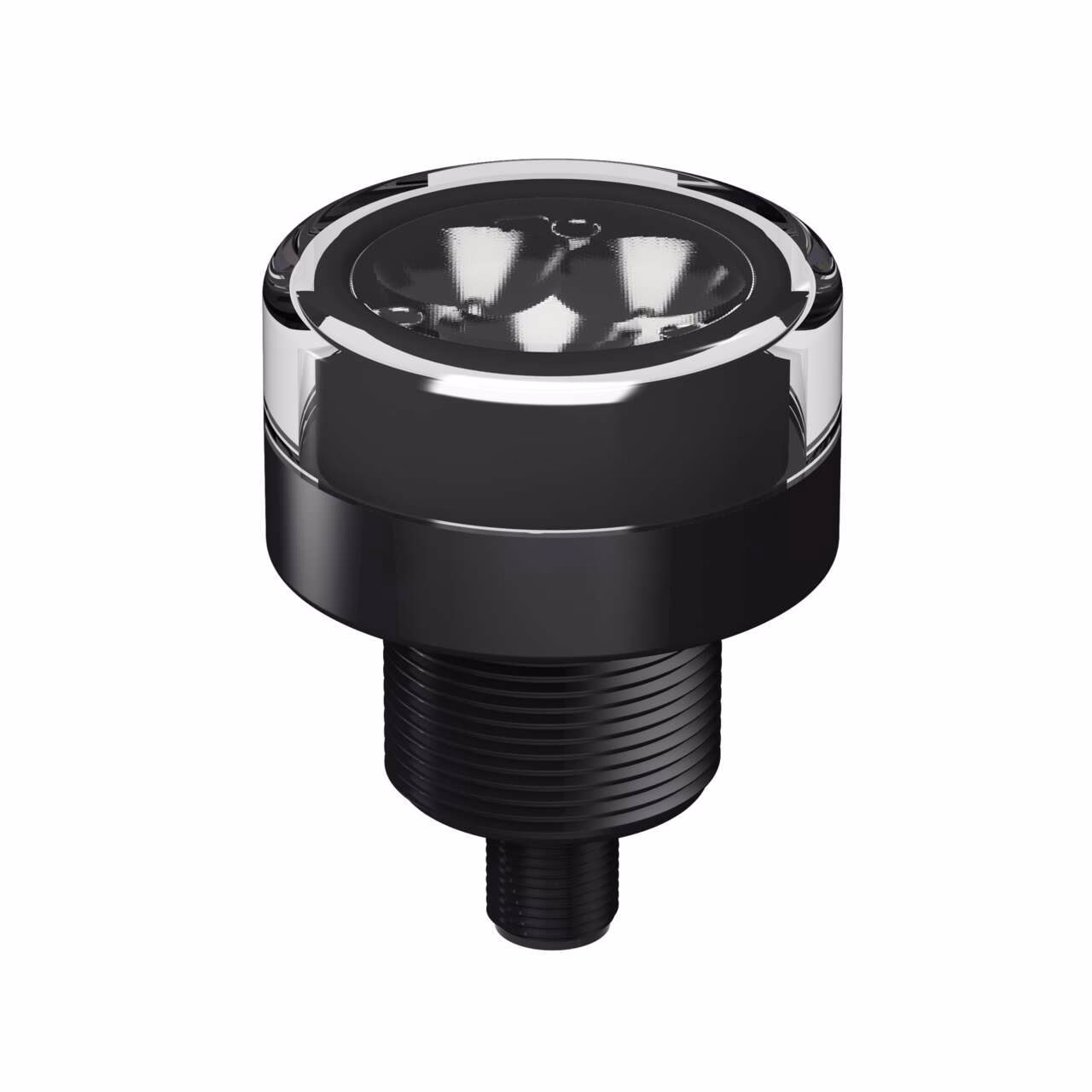

WL50S Sealed LED Spotlight for Task Lighting – Banner – WL50SWL11PWMQ
Work Light 50 mm Spot Light; PWM Dimming
Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K
Color: White; 11 Deg Lens
5-pin M12 Integral QD
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | PWM |
| Feature: Audible | No |
| Lens Focusing Angle/FOV (degrees) | 11.0 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Cool White |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Base Mount – Flat Window |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 285.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | M30 x 1.5 |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 65.8 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -20.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Storage Temp (C) | -40 to 70 |
Description
Work Light 50 mm Spot Light; PWM Dimming
Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K
Color: White; 11 Deg Lens
5-pin M12 Integral QD
