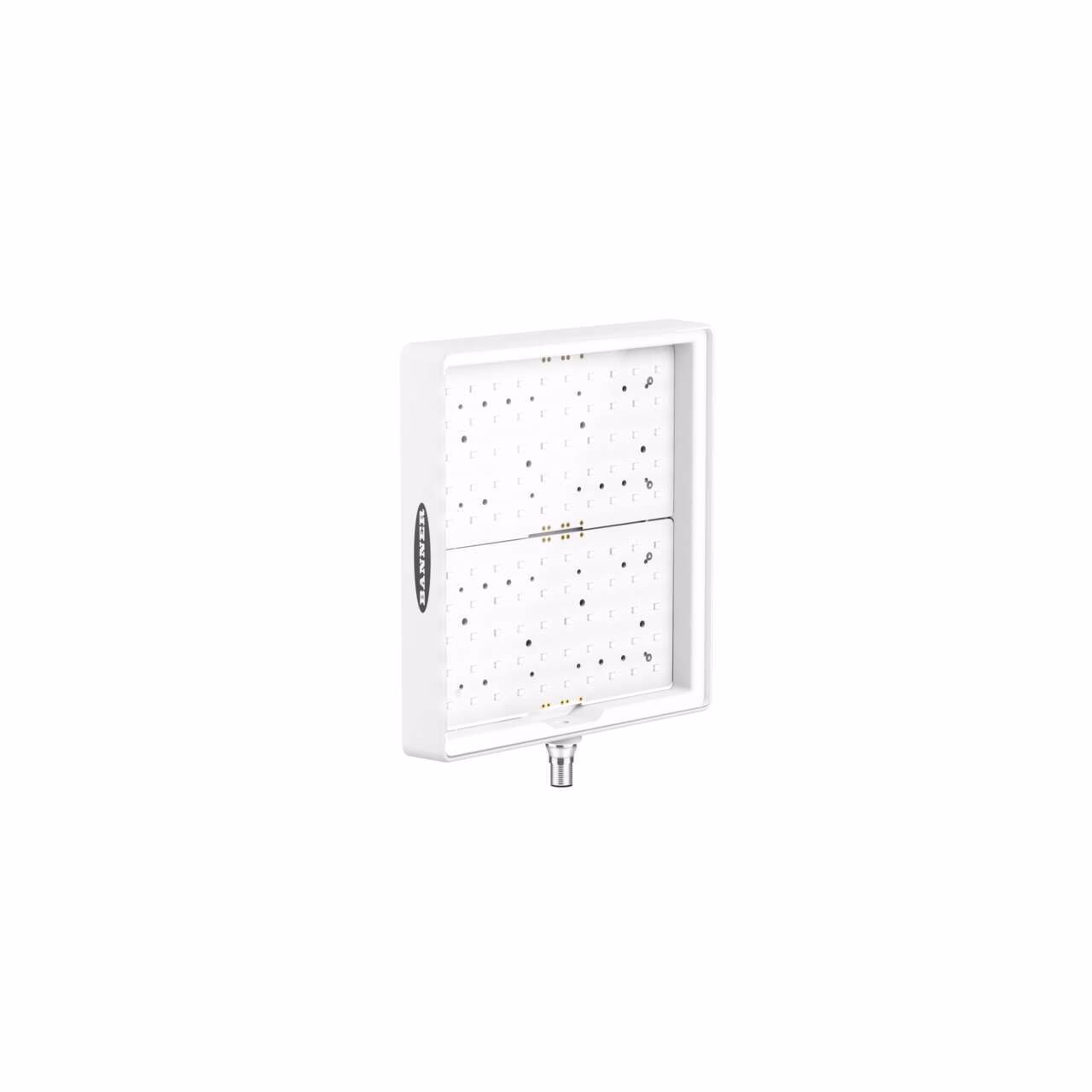

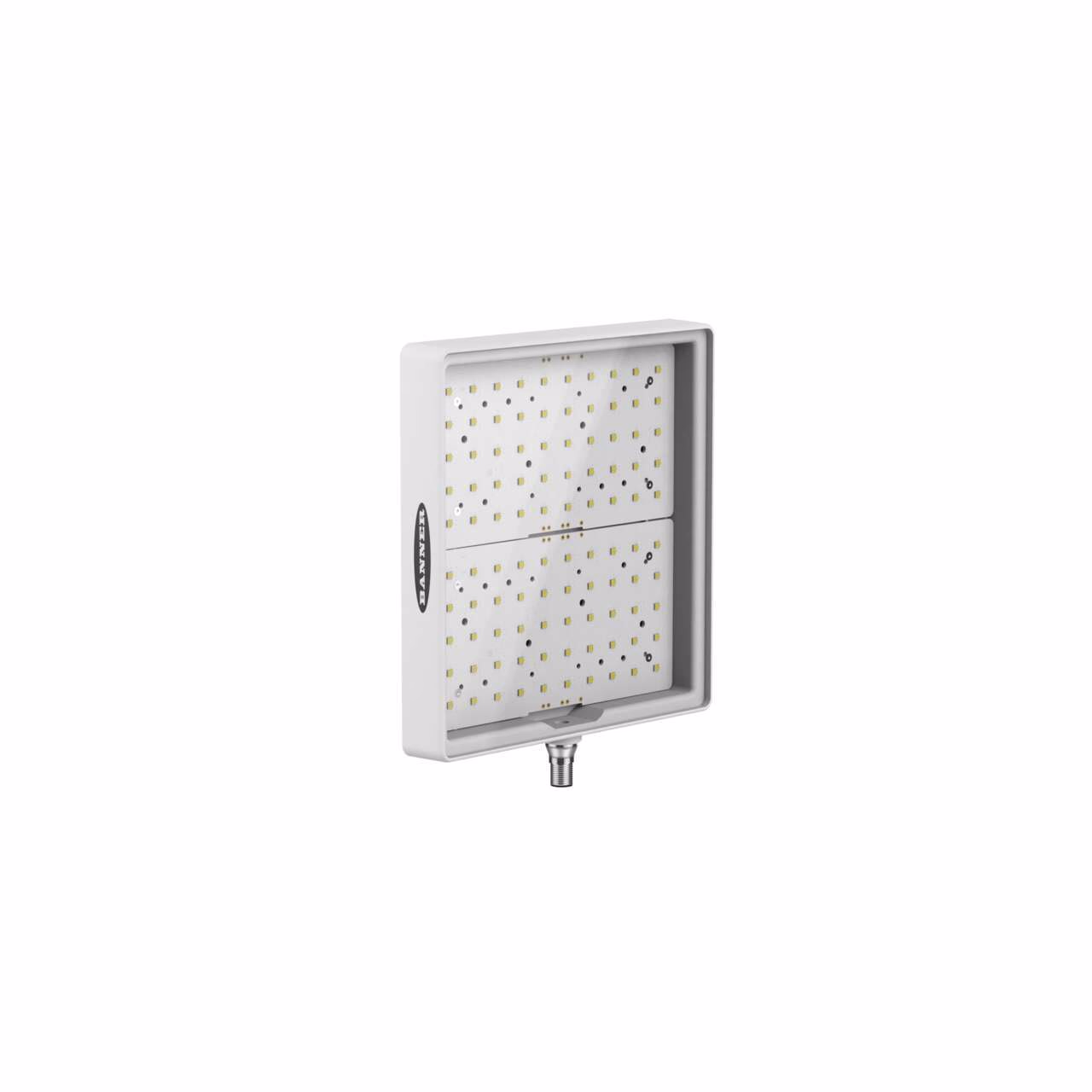

WLA Series LED Area Light – Banner – WLA-2W190X180PWMQ
WLA-2 Area Light: 190 x 180 mm; PWM Dimming
12-30 V dc; IP67/69K
Daylight White: 5000K; Clear
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Dimming Option | PWM |
| Feature: Audible | No |
| Primary Housing Color | Gray |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| Environmental Rating | IP67; IP69K |
| EPLAN Original Sent Date | 09/22/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Lumens Color 1 | 2050.0 |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 204.9 x 180.1 x 25.8 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | PBT |
| Touchscreen | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 70.0 |
| Product Size (mm) | Other |
| Max Current Color (mA) | 1.75 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 190.0 |
Description
WLA-2 Area Light: 190 x 180 mm; PWM Dimming
12-30 V dc; IP67/69K
Daylight White: 5000K; Clear
4-pin M12 Integral QD
