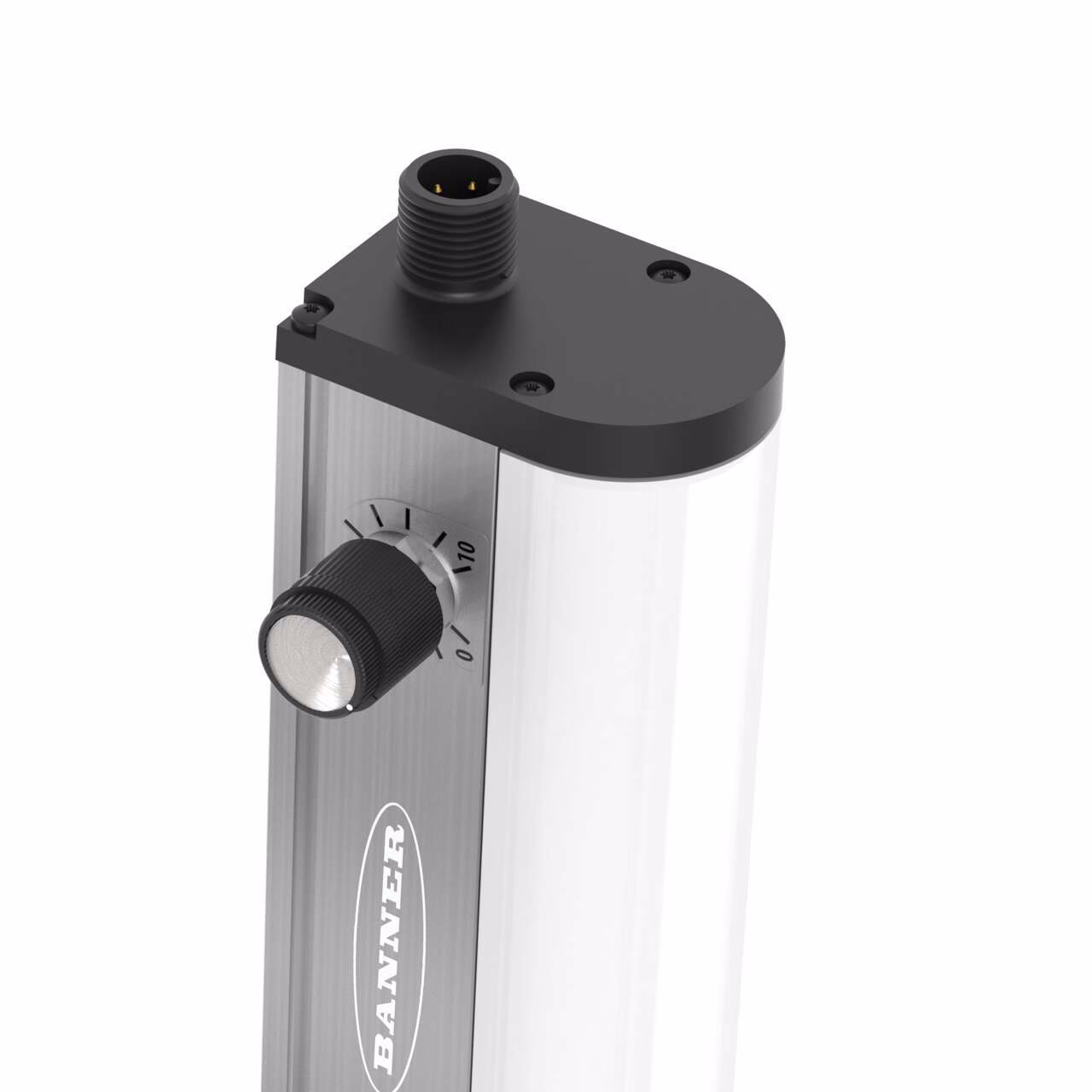

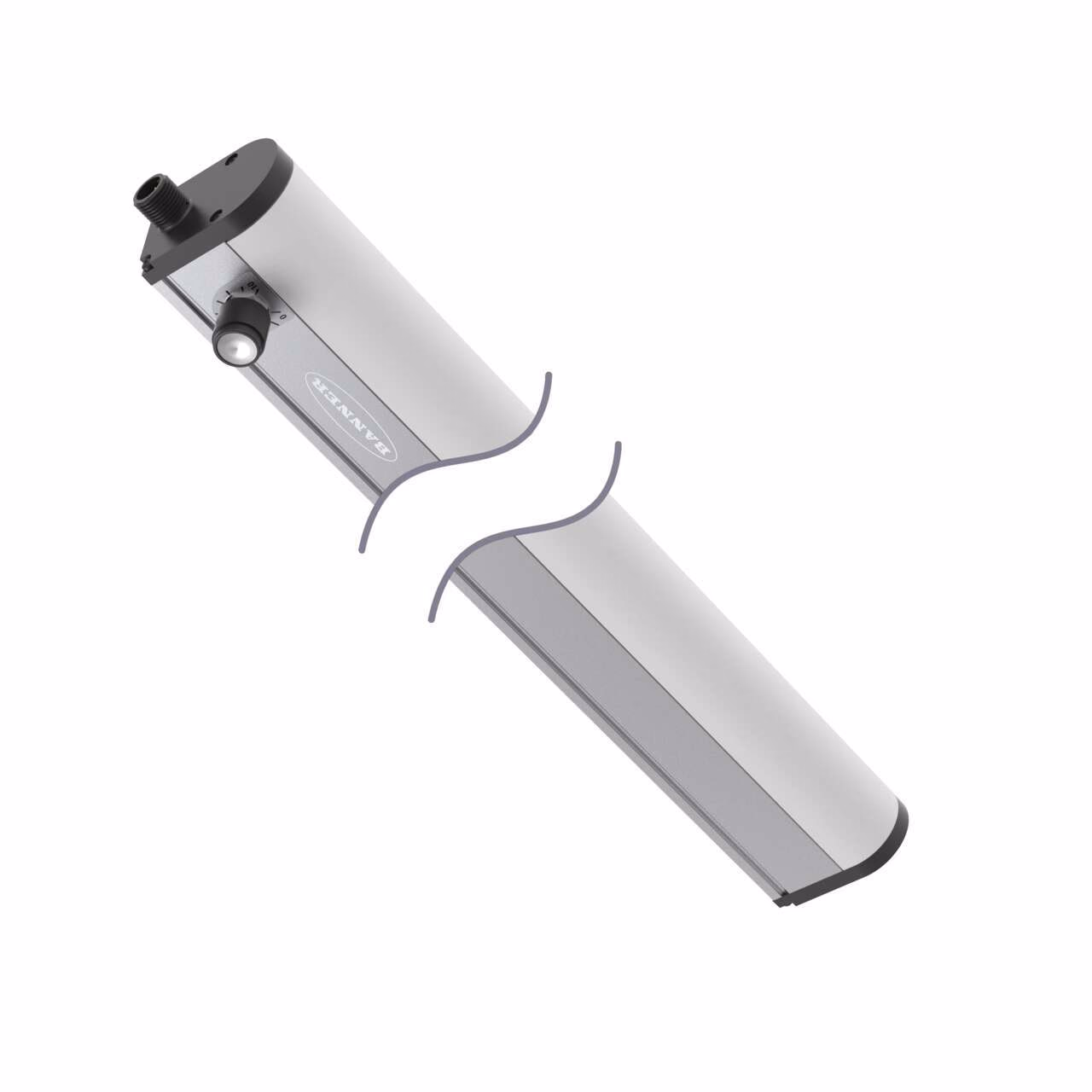

WLB32 LED Workstation Light – Banner – WLB32EX285PQ
WLB32 Industrial PoE LED Light with Intensity Adjustment; Length: 285 mm
Voltage: 42.5-57 V dc Power Over Ethernet; Environmental Rating: IP40
Color: Daylight White; Non-Cascadable
4-pin M12 Integral QD; Diffuse Window
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | Dimmer Knob |
| Feature: Audible | No |
| Illumination Switch Function | 11 position knob, OFF, 1-10 |
| Power Over Ethernet (PoE) | Yes |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| EPLAN Original Sent Date | 01/05/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 750.0 |
| Modbus RTU | No |
| Mounting | No Thread |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 42.5-57 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 309.0 x 32.0 x 46.0 |
| Port | M12 |
| Power Good Output | PoE |
| Protection class shaft | IP50 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| Product Size (mm) | 32 |
| Max Current Color (mA) | 170.0 |
| Storage Temp (C) | -25 to 70 |
| Illuminated Length (LxWxH mm) | 285.0 |
Description
WLB32 Industrial PoE LED Light with Intensity Adjustment; Length: 285 mm
Voltage: 42.5-57 V dc Power Over Ethernet; Environmental Rating: IP40
Color: Daylight White; Non-Cascadable
4-pin M12 Integral QD; Diffuse Window
