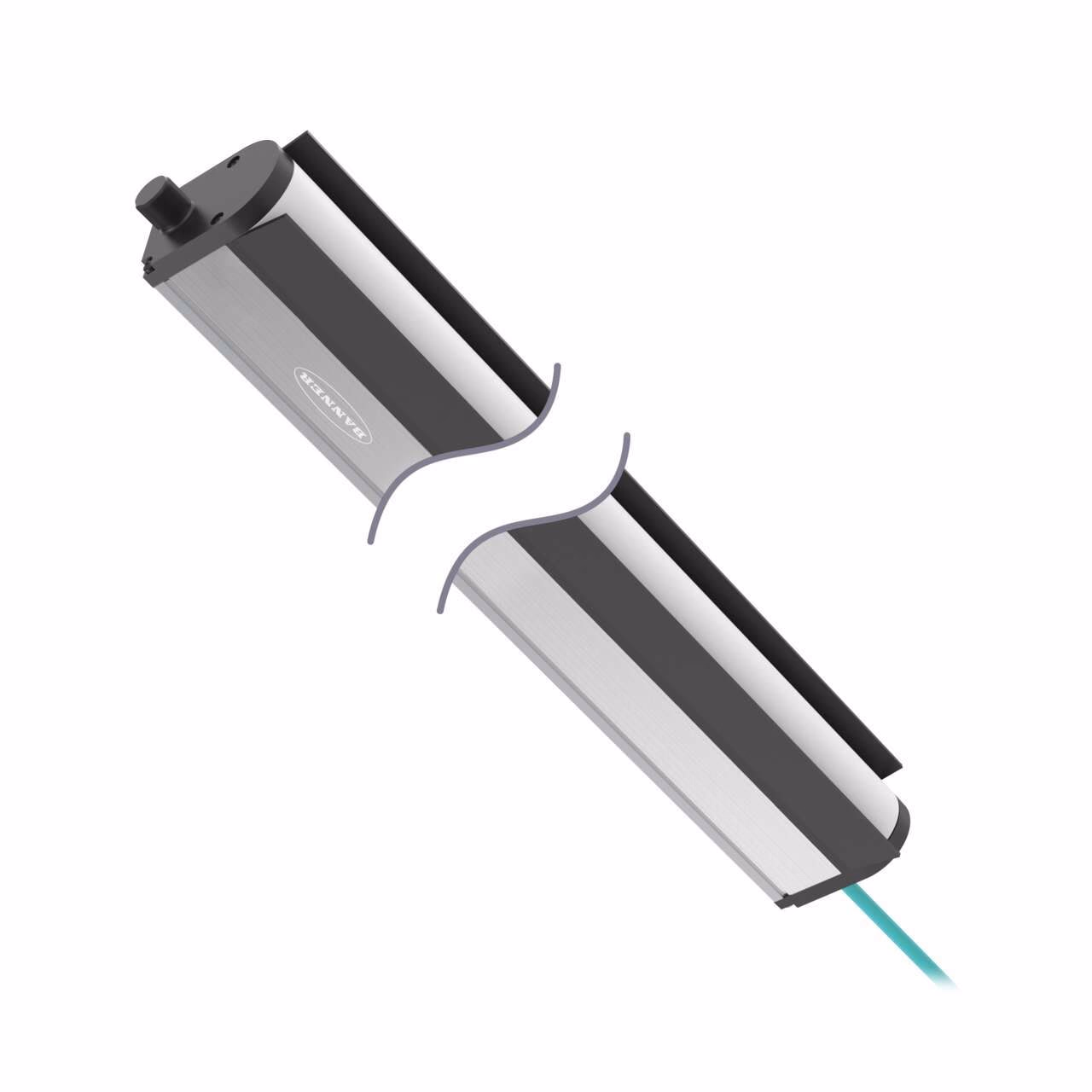

WLB32 LED Workstation Light – Banner – WLB32PEX1130EQP
WLB32 Pro PoE Work Light Bar; Length: 1130 mm
Voltage: 42.5-57 V dc Power Over Ethernet; Environmental Rating: IP40
Color: Daylight White; Non-Cascadable; Eye Shield
475 mm (18.7 in) 4-pin D-Code M12 Female Pigtail QD; Diffuse Window
| Connection | Pigtail QD |
|---|---|
| Dimming Option | Ethernet IP Controlled |
| Power Over Ethernet (PoE) | Yes |
| Animation Option 1 | Programmable |
| Animation Option 2 | Ethernet IP Controlled |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Option 1 | White |
| EPLAN Status | Published |
| Eye Shield | Yes |
| Feature | Quick Disconnect |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 3000.0 |
| Modbus RTU | Yes |
| Port | M12 |
| Power Good Output | PoE |
| Receptacle housing material B | Polycarbonate |
| Product Size (mm) | 32 |
| Max Current Color (mA) | 590.0 |
| Illuminated Length (LxWxH mm) | 1130.0 |
| CRI | 80.0 |
Description
WLB32 Pro PoE Work Light Bar; Length: 1130 mm
Voltage: 42.5-57 V dc Power Over Ethernet; Environmental Rating: IP40
Color: Daylight White; Non-Cascadable; Eye Shield
475 mm (18.7 in) 4-pin D-Code M12 Female Pigtail QD; Diffuse Window
