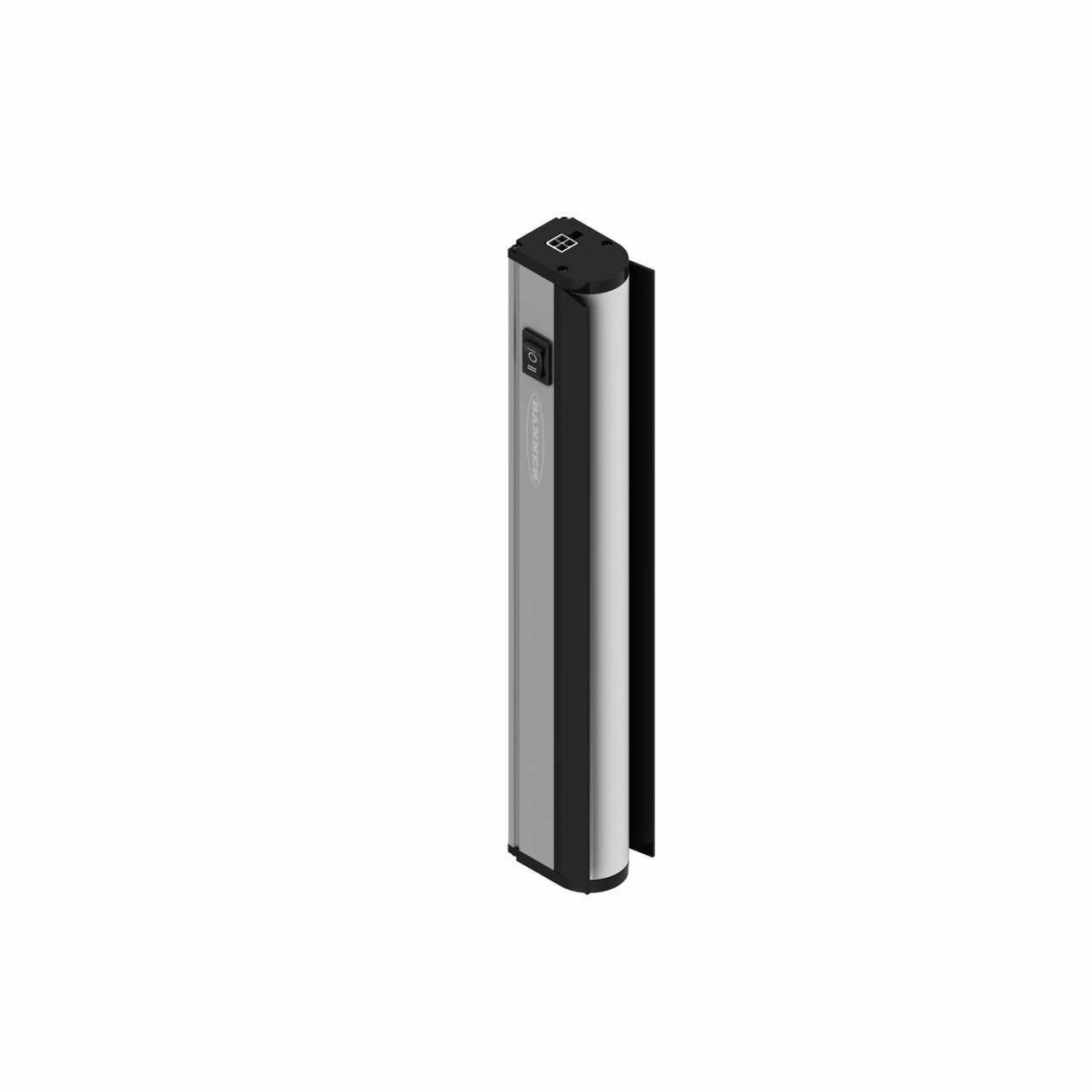

WLB32 LED Workstation Light – Banner – WLB32ZCWW850EPBQMB
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 850 mm
Voltage: 90-264 V ac; Environmental Rating: IP50
Color: Warm White; Cascadable; Eye Shield
QD – Includes Type B Power cord; Diffuse Window
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | High-Low-Off |
| Feature: Audible | No |
| Illumination Switch Function | I=Low; O=OFF; II=High |
| Power Over Ethernet (PoE) | No |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 3000K (Warm) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Warm White |
| Environmental Rating | IP50 |
| Eye Shield | Yes |
| Feature | Cascade, Quick Disconnect |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 2250.0 |
| Modbus RTU | No |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 3.0 |
| Operating voltage | 90-264 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 862.0 x 38.3 x 48.0 |
| Power Good Output | AC |
| Protection class shaft | IP50 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -25.0 |
| High Temperature (up to 100 C) | 45.0 |
| Product Size (mm) | 32 |
| Max Current Color (mA) | 375.0 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 850.0 |
Description
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 850 mm
Voltage: 90-264 V ac; Environmental Rating: IP50
Color: Warm White; Cascadable; Eye Shield
QD – Includes Type B Power cord; Diffuse Window
