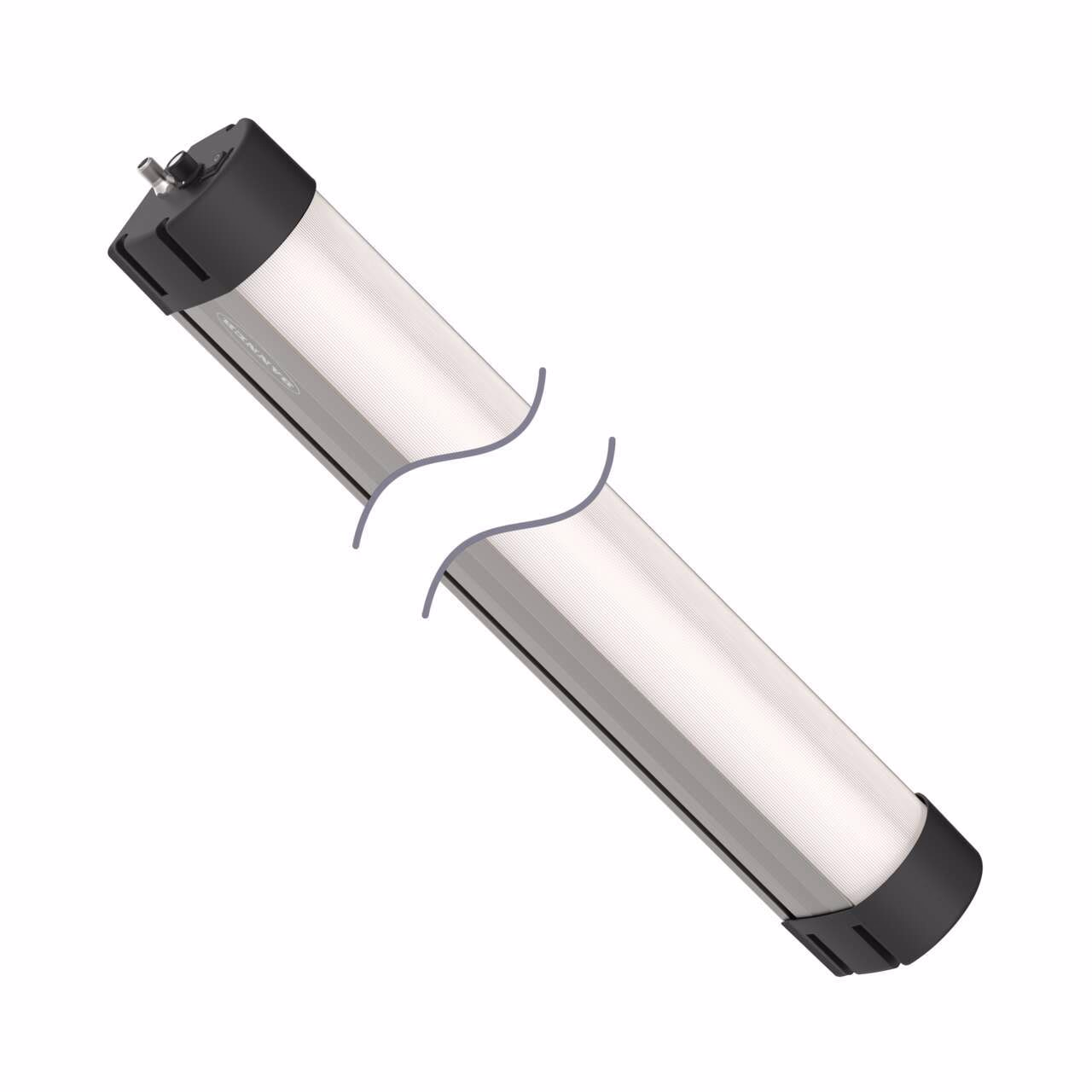

WLB92 Large Ultra-Bright LED Work Light – Banner – WLB92XG1100PBQ
WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer
Length: 1100 mm; Voltage: 24 V dc; Environmental Rating: IP40
Color: Green
4-pin M12 Integral QD; Diffuse Window
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | Dimmer Knob |
| Feature: Audible | No |
| Illumination Switch Function | O=OFF; I=ON |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP40 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 2975 |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4 |
| Operating voltage | 24 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 1226.0 x 97.0 x 104.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP40 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 70 |
| Product Size (mm) | 92 |
| Touchscreen | No |
| USB | No |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 1097 |
Description
WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer
Length: 1100 mm; Voltage: 24 V dc; Environmental Rating: IP40
Color: Green
4-pin M12 Integral QD; Diffuse Window
