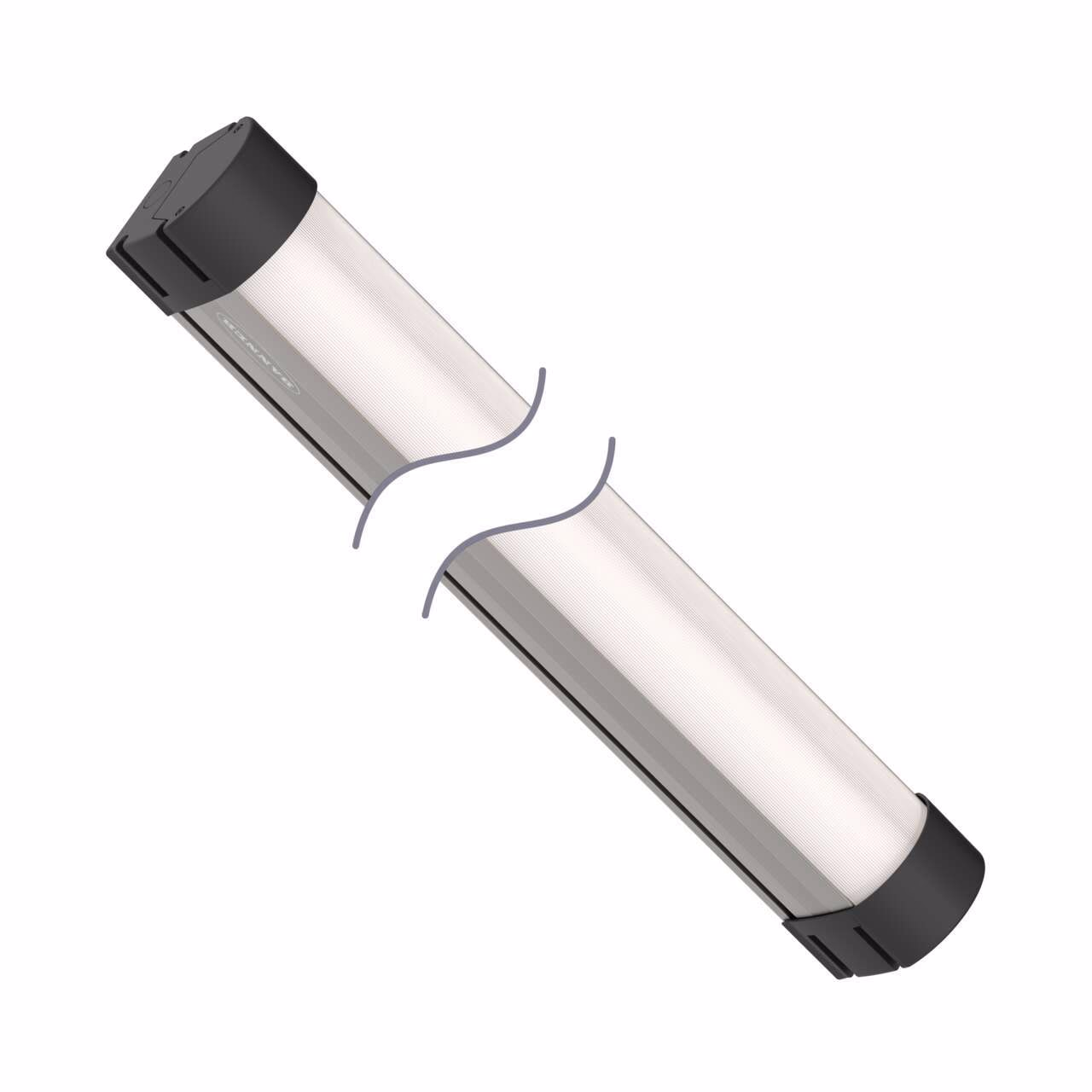

WLB92 Large Ultra-Bright LED Work Light – Banner – WLB92ZCWW1100ACT
WLB92 Work Light Bar; 0-10 V dc Analog Dimming
Length: 1100 mm; Voltage: 100-277 V ac; Environmental Rating: IP40
Color: Warm White; Cascadable
Conduit Openings – No Power cord; Diffuse window
| Light type | Yes |
|---|---|
| Mounting | No Thread |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating voltage | 100-277 V ac |
| Power Good Output | AC |
| Protection class shaft | IP40 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Connection | Conduit |
| Min Op. Temperature (C) | -40.0 |
| Feature: Audible | No |
| Indication | No |
| High Temperature (up to 100 C) | 45.0 |
| Physical Dimensions (LxWxH or DxH mm) | 1206.0 x 97.0 x 104.0 |
| Color Technology | Standard LED |
| Environmental Rating | IP40 |
| Product Size (mm) | 92 |
| Eye Shield | No |
| USB | No |
| Non-Illuminated | No |
| PFM Input | No |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Warm White |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Storage Temp (C) | -40 to 70 |
| Color 1 - Wavelength/Color Temp/Coordinates | 3000K (Warm) |
| Lumens Color 1 | 7150.0 |
| Illuminated Length (LxWxH mm) | 1097.0 |
| Dimming Option | 0-10 V dc |
| Feature | Cascade |
Description
WLB92 Work Light Bar; 0-10 V dc Analog Dimming
Length: 1100 mm; Voltage: 100-277 V ac; Environmental Rating: IP40
Color: Warm White; Cascadable
Conduit Openings – No Power cord; Diffuse window
