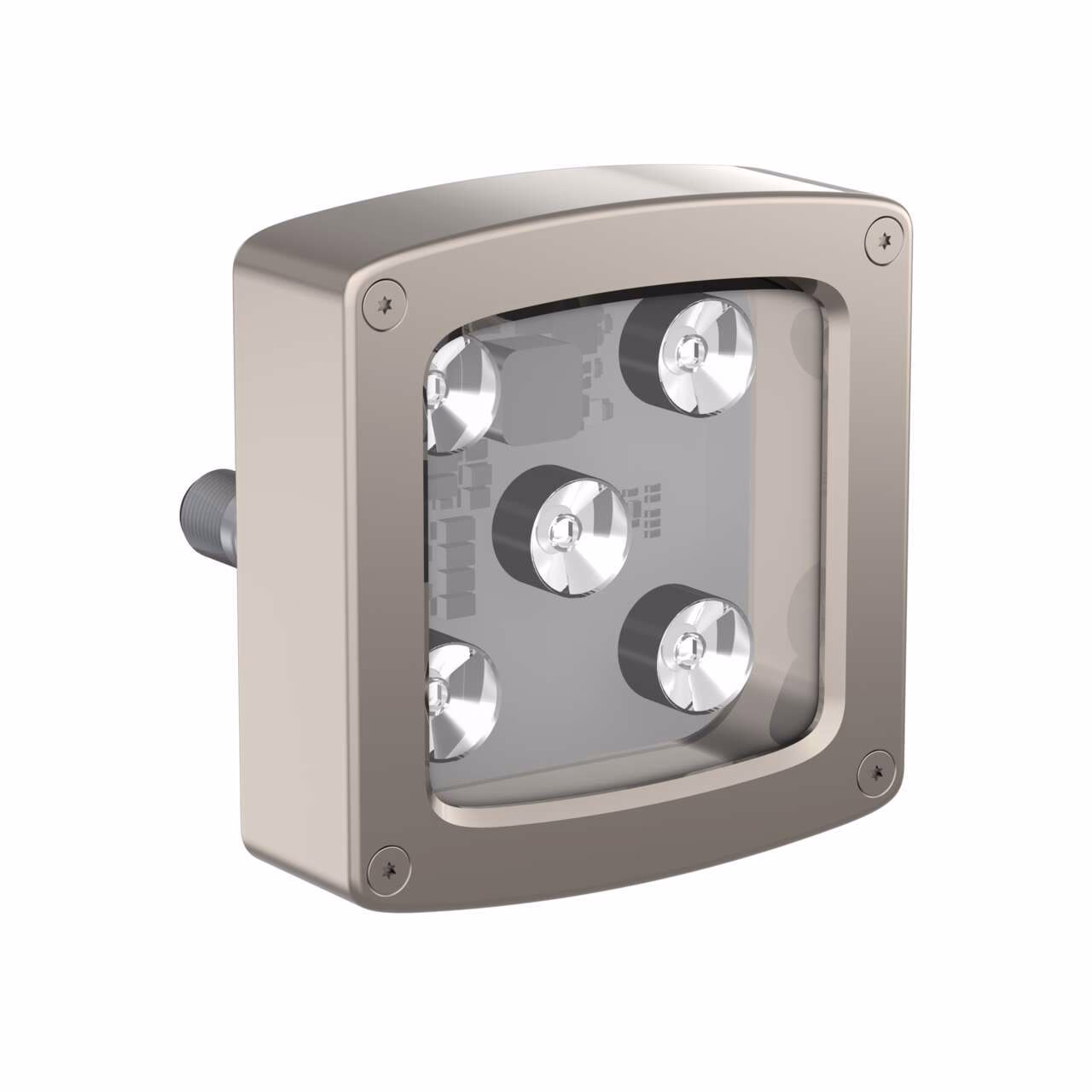

WLC90 Heavy Duty LED Work Light – Banner – WLC90RL8RQ
WLC90 Work Light; Dimensions: 90×90 mm
Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K
Color: Red; 8 Deg Lens; Window: Polycarbonate
4-pin M12 Integral QD; Rear exit
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | High-Low-Off |
| Feature: Audible | No |
| Lens Focusing Angle/FOV (degrees) | 8.0 |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Environmental Rating | IP67; IP68; IP68g; IP69K |
| Eye Shield | No |
| Feature | Chemical Resistant, Quick Disconnect, Washdown Rated |
| Housing Style | Rectangular |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 91.0 x 89.0 x 49.2 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP68, IP68g, IP69K |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 70.0 |
| Product Size (mm) | 90 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 65.0 |
Description
WLC90 Work Light; Dimensions: 90×90 mm
Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K
Color: Red; 8 Deg Lens; Window: Polycarbonate
4-pin M12 Integral QD; Rear exit
