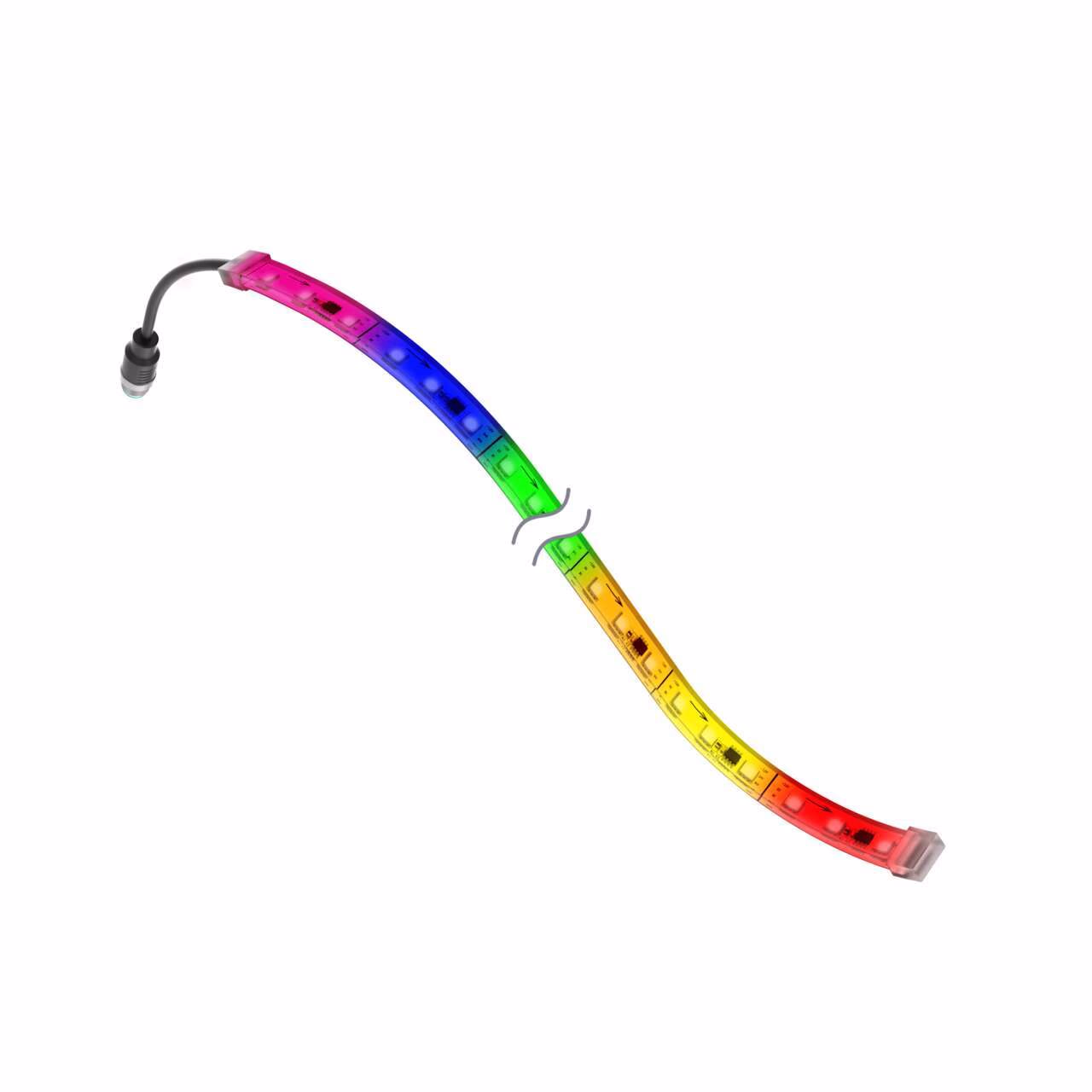

WLF12 Flexible Strip Light – Banner – WLF12PXRGB2000SQP
WLF12 Pro Flexible Strip: 2000 mm
12 V dc or 12-30 V dc when using LC25 LED Controller
IP66, IP67, IP69K
RGB; Clear; Non-Cascadable

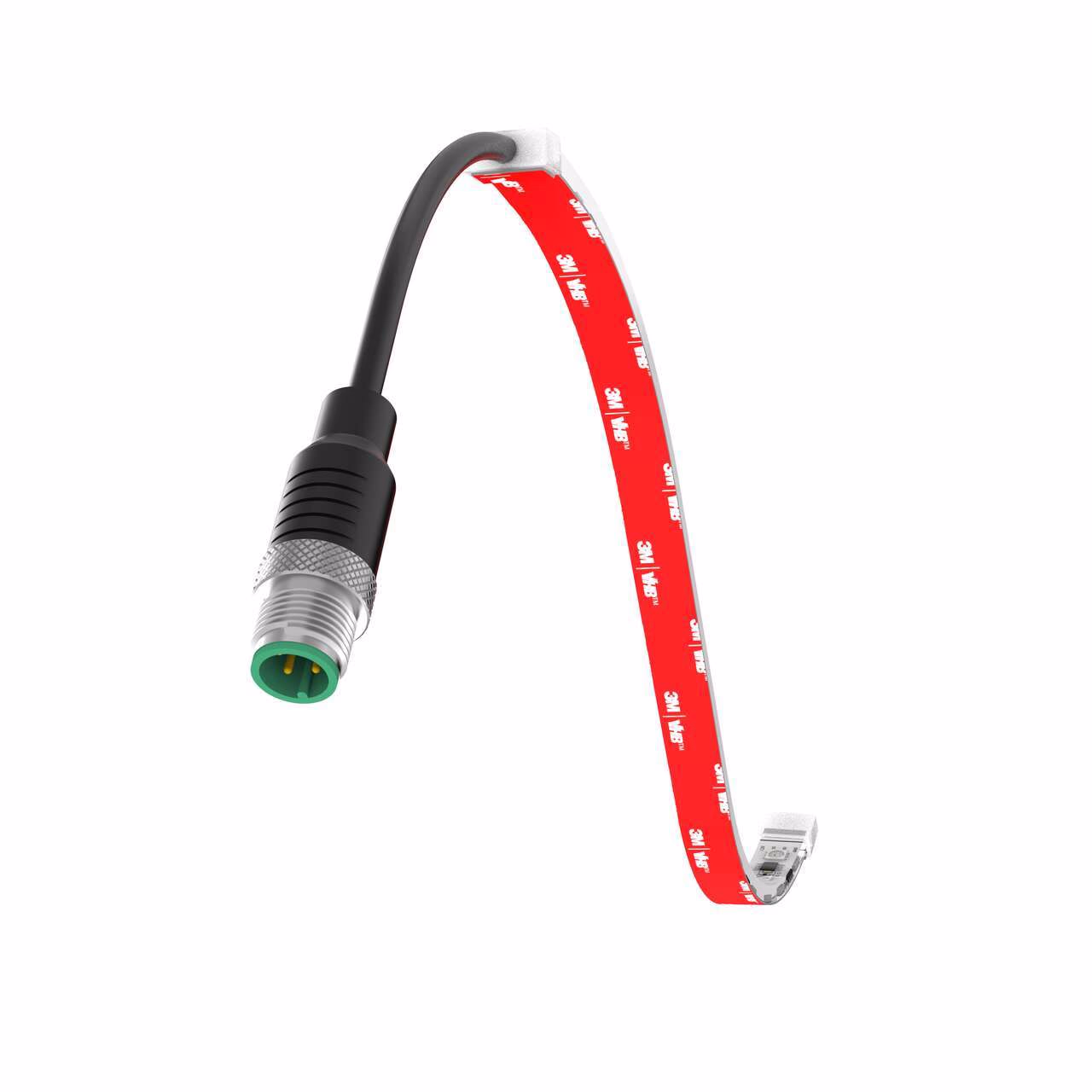

150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Color Technology | RGB Configurable |
|---|---|
| Connection | Pigtail QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Primary Window Material | Clear Silicone |
| Pro-Editor Compatible (Discrete) | Yes |
| Secondary Material | VHB Tape |
| Wire Selectable Function | Programmable |
| Animation Option 1 | Programmable |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | RGB |
| EPLAN Original Sent Date | 01/05/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Flexible Linear Strip |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Mounting | No Thread |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 19 |
| Number of Conductors | 4.0 |
| Operating voltage | 12 V dc |
| PFM Input | Yes |
| Physical Dimensions (LxWxH or DxH mm) | 2025.0 X 12,8 X 6,4 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Silicone |
| Slot width (mm) | 0.15 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -20.0 |
| High Temperature (up to 100 C) | 45.0 |
| Product Size (mm) | 12 |
| Max Current Color (mA) | 1400.0 |
| Storage Temp (C) | -35 to 70 |
| Illuminated Length (LxWxH mm) | 2000.0 |
| Options Available | 4-20mA Output |
Description
WLF12 Pro Flexible Strip: 2000 mm
12 V dc or 12-30 V dc when using LC25 LED Controller
IP66, IP67, IP69K
RGB; Clear; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
