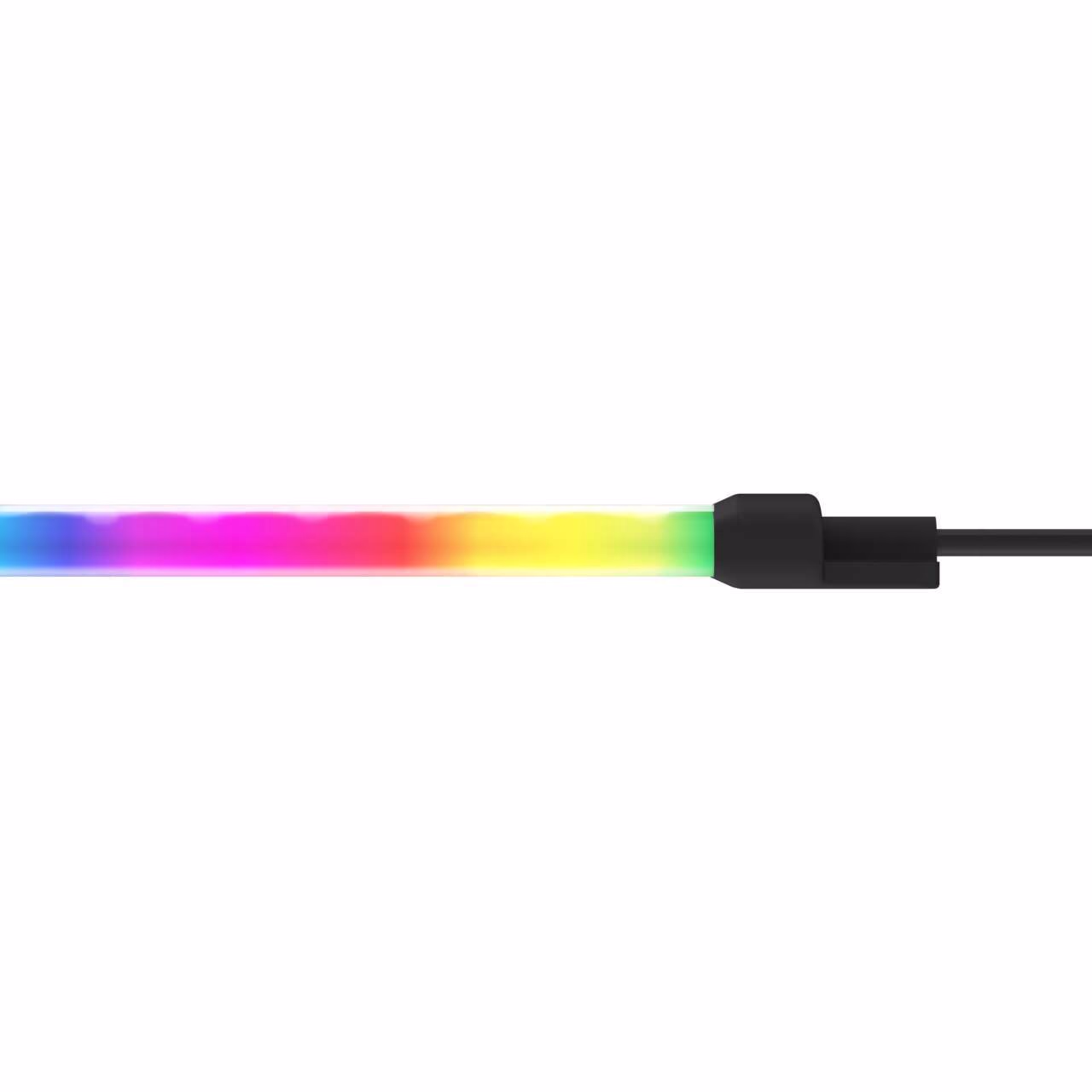

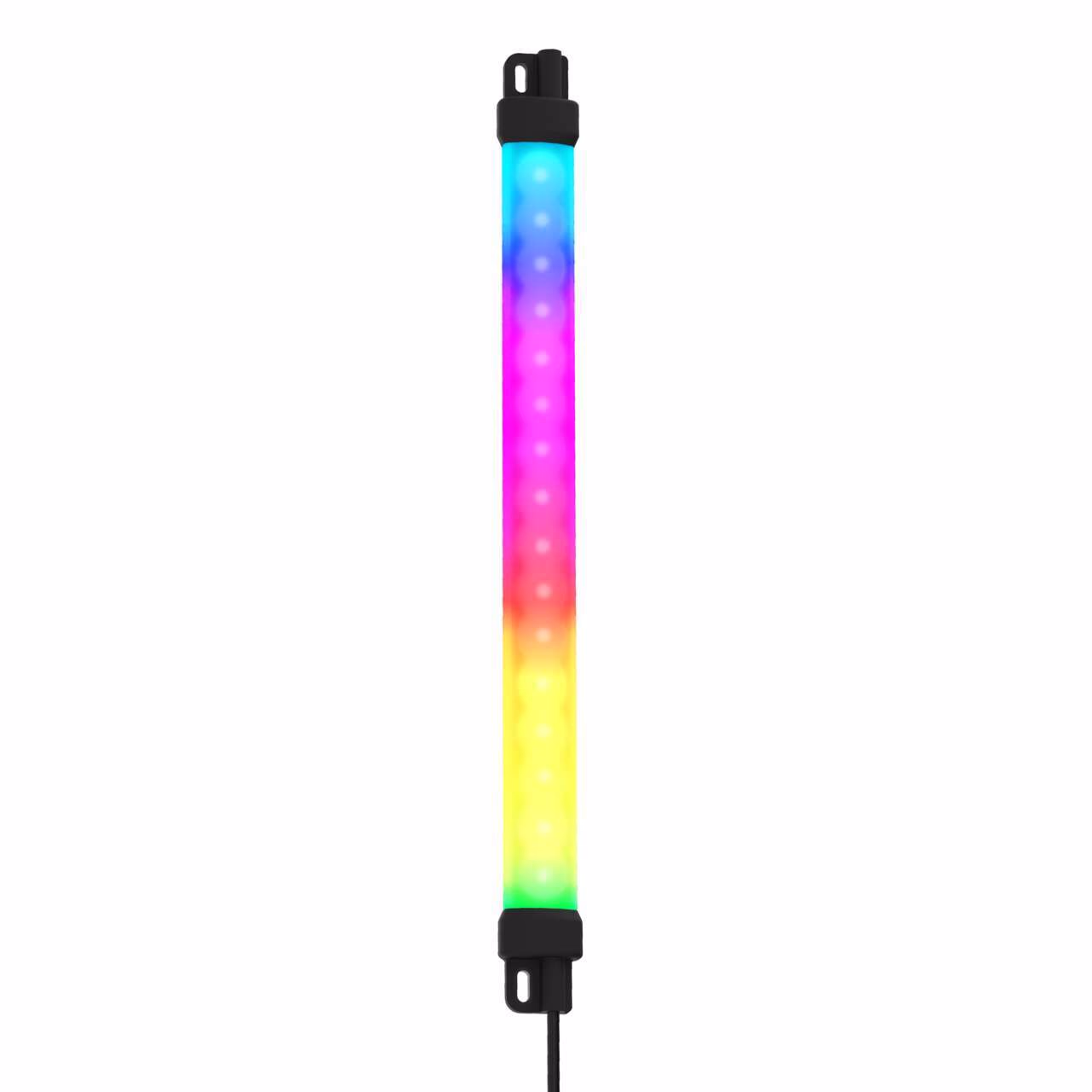

WLS15 Pro Series – Banner – WLS15PXRGB0220DSQP
WLS15 Pro Light Strip with Pro Editor; Diffuse Window; Length: 220 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: RGB; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Color Technology | RGB Configurable |
|---|---|
| Connection | Pigtail QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Secondary Material | Polyamide |
| Wire Selectable Function | Programmable |
| Animation Option 1 | See Configuration File |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | RGB |
| Environmental Rating | IP66; IP67 |
| EPLAN Original Sent Date | 03/29/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Linear Strip |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | Yes |
| Modbus RTU | No |
| Mounting | No Thread |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 19 |
| Number of Conductors | 4.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | Yes |
| Physical Dimensions (LxWxH or DxH mm) | 220.0 x 30.6 x 15.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 0.15 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 15 |
| Max Current Color (mA) | 125.0 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 146.4 |
| Options Available | 4-20mA Output |
Description
WLS15 Pro Light Strip with Pro Editor; Diffuse Window; Length: 220 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: RGB; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
