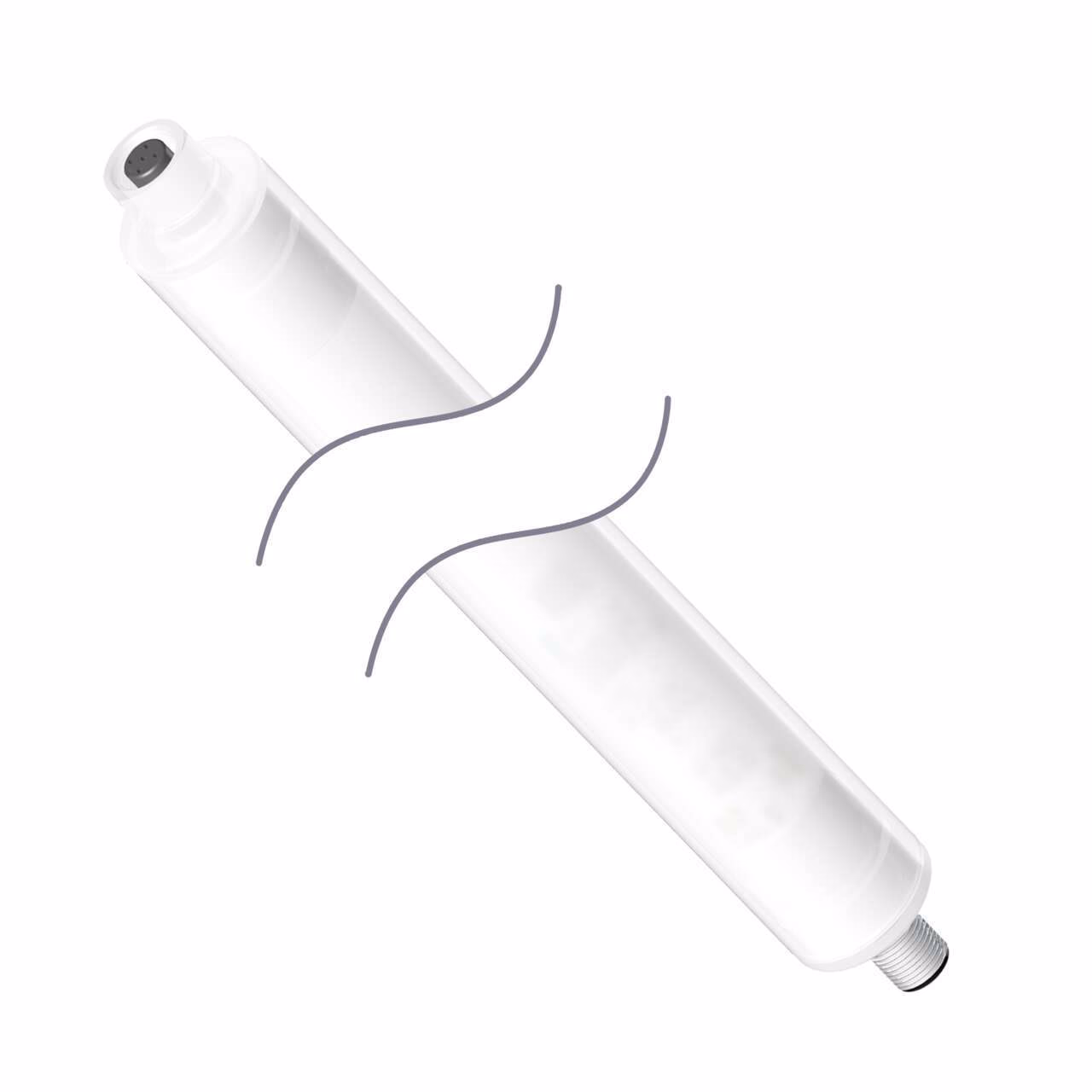

WLS27 Shatterproof LED Light for Harsh Environments – Banner – WLS27CWY-710DSQ
WLS27 Work Light Strip; Diffused Window; Length: 710 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K
Color: White (100%) Yellow (100%); Cascadable
4-pin M12 Integral QD
| Color Option 2 | Yellow |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Primary Window Material | Copolyester Diffused |
| Animation Option 1 | Solid On |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| Feature | Cascade, Chemical Resistant, Quick Disconnect, Washdown Rated |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 1900 |
| Lumens Color 2 | 600 |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 27.0 x 1192.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | FDA Copolyester |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 70 |
| Product Size (mm) | 27 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 3200 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 710 |
Description
WLS27 Work Light Strip; Diffused Window; Length: 710 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K
Color: White (100%) Yellow (100%); Cascadable
4-pin M12 Integral QD
