Ultrasonic Sensors type Q45UR
Switch Output (pnp and npn) |
|
 |
● Sonic cone angle of 7°
● Plastic housing
● Remote transducer
● Cable, 2 m
● Connector |
|
 |
General data
Supply voltage UB 12...24 VDC
Rated operational current Ie 150 mA
No-load current I0 ≤ 100 mA
Voltage drop Ud < 2 V
Cyclic short-circuit protection
Switching hysteresis H 0,05 cm
Full reverse polarity protection
Wire-breakage protected
Temperature drift
– compensation 0...50 °C 0,03%/K
– compensation -25...+70 °C 0,05%/K
Degree of protection
– controller IP67
– transducer IP65
Temperature range -25...+70 °C |

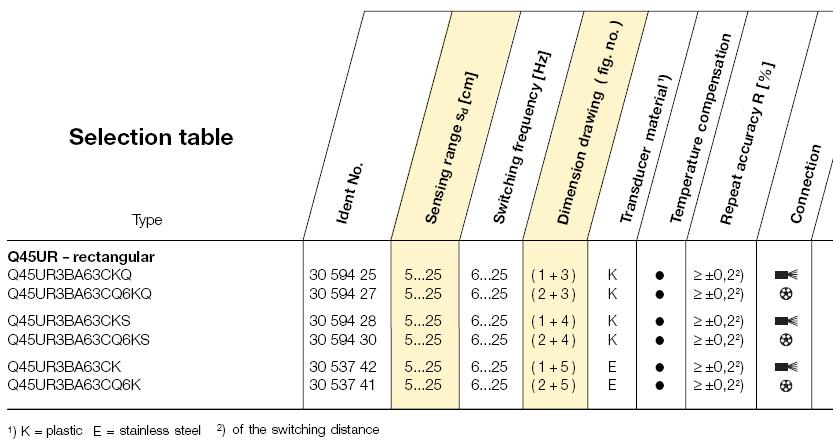

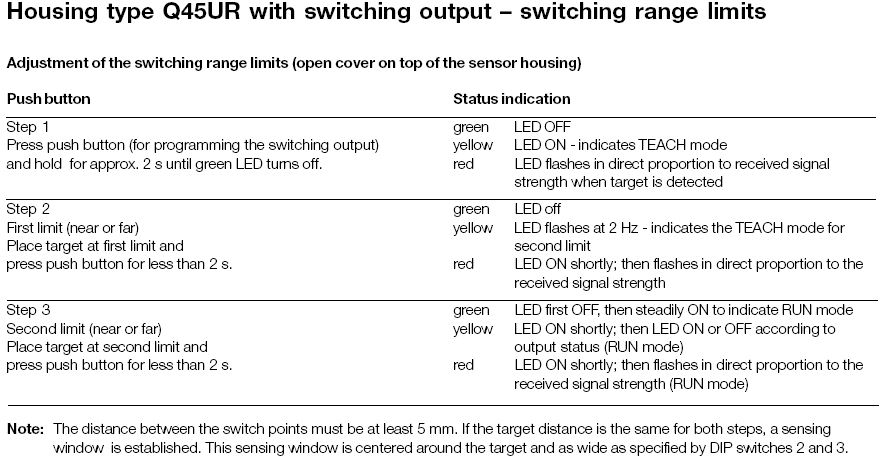

Adjustments
Via teach-in function (push button or
remote input):
– window limits

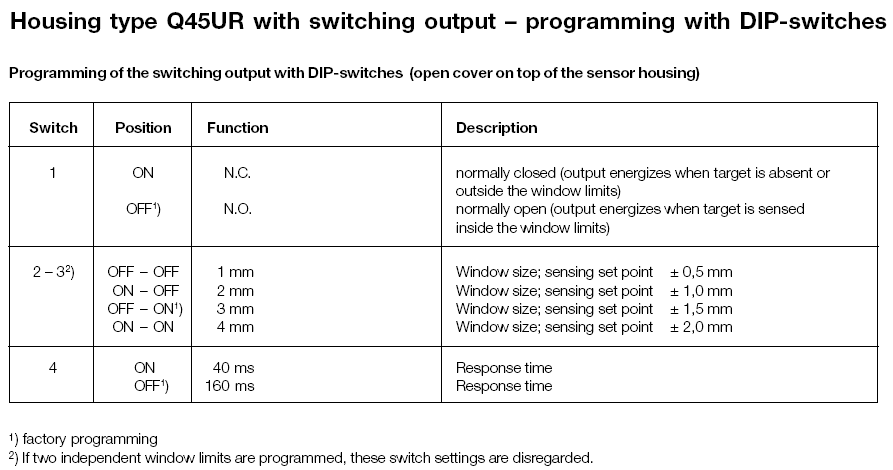

Via DIP-switches:
– window size
– output: N.O./N.C.
– response timeMaterials
Remote processor Thermoplastic
polyester
Cover (transparent) LEXAN® (PC) |
|

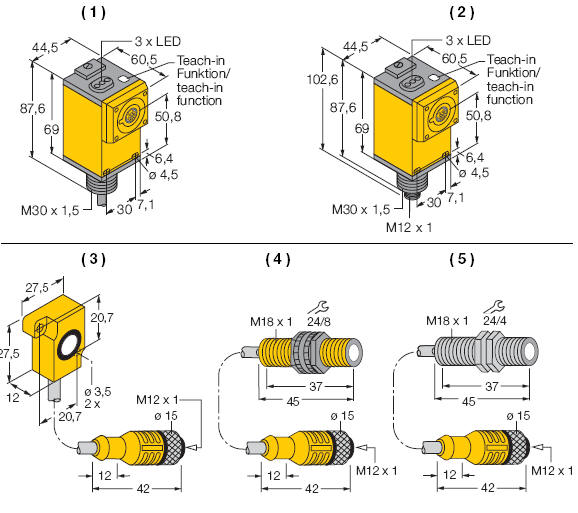

Dimensional
Drawings
Housing Q45UR
Remote Transducer Cable Length = 2 metres |
|
|
|
Wiring Diagram
5 = Remote teach (Connect to +) |
|

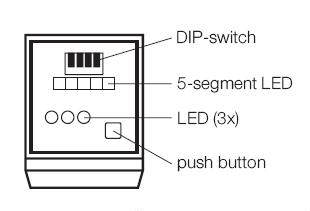

Indication LEDs
Green = Power ON
Yellow = Switch Status On/Off
Green Flashing = Overload
Red Flashing = Object Detected (Flash Rate proportional to signal)
5 Segment LED = Object Position |
