Standard
Inductive Sensors
|
Cylindrical inductive Sensors
Note: Bi Types are flush-mountable, Ni
Types are not flush mountable |
|

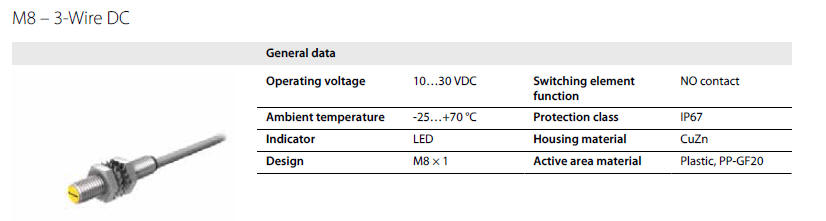

Type |
ident No |
Distance |
Output |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi2-M08-AP6X |
4602901 |
2 mm |
NO contact |
PNP |
2 m Cable |
8 x 32.1 |
w001 |
d001 |
|
Bi2-M08-AN6X |
4602926 |
2 mm |
NO contact |
NPN |
2 m Cable |
8 x 32.1 |
w002 |
d001 |
|
Bi2-M08E-AN6X |
4602951 |
2 mm |
NO contact |
NPN |
2 m Cable |
8 x 42.1 |
w002 |
d002 |
|
Bi2-M08E-AP6X |
4602954 |
2 mm |
NO contact |
PNP |
2 m Cable |
8 x 42.1 |
w001 |
d002 |
|
Bi2-M08K-AN6X |
4602963 |
2 mm |
NO contact |
NPN |
2 m Cable |
8 x 24.1 |
w002 |
d003 |
|
Bi2-M08K-AP6X |
4602966 |
2 mm |
NO contact |
PNP |
2 m Cable |
8 x 24.1 |
w001 |
d003 |
|
Bi2-M08-AN6X-V1131 |
4602927 |
2 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 39.7 |
w003 |
d004 |
|
Bi2-M08-AP6X-V1131 |
4602903 |
2 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 39.7 |
w004 |
d004 |
|
Bi2-M08E-AN6X-V1131 |
4602953 |
2 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 49.7 |
w003 |
d005 |
|
Bi2-M08E-AP6X-V1131 |
4602956 |
2 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 49.7 |
w004 |
d005 |
|
Bi2-M08K-AN6X-V1131 |
4602965 |
2 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 31.7 |
w003 |
d006 |
|
Bi2-M08K-AP6X-V1131 |
4602968 |
2 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 31.7 |
w004 |
d006 |
|
Ni3-M08-AN6X |
4602932 |
3 mm |
NO contact |
NPN |
2 m Cable |
8 x 32.1 |
w002 |
d007 |
|
Ni3-M08-AP6X |
4602929 |
3 mm |
NO contact |
PNP |
2 m Cable |
8 x 32.1 |
w001 |
d007 |
|
Ni3-M08E-AN6X |
4602831 |
3 mm |
NO contact |
NPN |
2 m Cable |
8 x 42.1 |
w002 |
d008 |
|
Ni3-M08E-AP6X |
4602834 |
3 mm |
NO contact |
PNP |
2 m Cable |
8 x 42.1 |
w001 |
d008 |
|
Ni3-M08K-AN6X |
4602847 |
3 mm |
NO contact |
NPN |
2 m Cable |
8 x 24.1 |
w002 |
d009 |
|
Ni3-M08K-AP6X |
4602851 |
3 mm |
NO contact |
PNP |
2 m Cable |
8 x 24.1 |
w001 |
d009 |
|
Ni3-M08-AP6X-V1131 |
4602930 |
3 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 39.7 |
w004 |
d010 |
|
Ni3-M08-AN6X-V1131 |
4602933 |
3 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 39.7 |
w003 |
d010 |
|
Ni3-M08E-AN6X-V1131 |
4602833 |
3 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 49.7 |
w003 |
d011 |
|
Ni3-M08E-AP6X-V1131 |
4602836 |
3 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 49.7 |
w004 |
d011 |
|
Ni3-M08K-AN6X-V1131 |
4602849 |
3 mm |
NO contact |
NPN |
Connectors |
M8 × 1 8 x 31.7 |
w003 |
d012 |
|
Ni3-M08K-AP6X-V1131 |
4602853 |
3 mm |
NO contact |
PNP |
Connectors |
M8 × 1 8 x 31.7 |
w004 |
d012 |
|

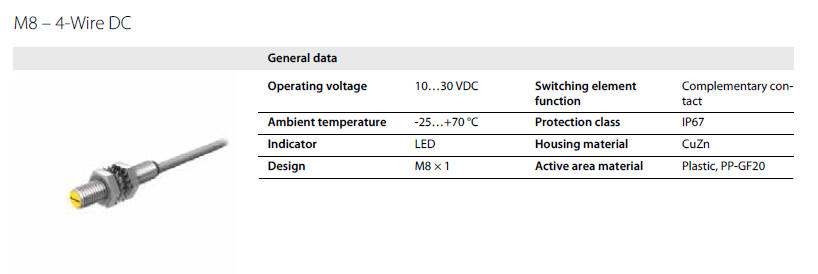

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimension Drawing |
|
Bi2-M08-VN6X 7M |
4602806 |
2 mm, |
Change-Over contact, NPN |
7 m Cable |
8 x 32.1 |
w005 |
d001 |
|
Bi2-M08-VP6X 7M |
4602810 |
2 mm, |
Change-Over contact, PNP |
7 m Cable |
8 x 32.1 |
w006 |
d001 |
|
Bi2-M08E-VN6X 7M |
4602957 |
2 mm, |
Change-Over contact, NPN |
7 m Cable |
8 x 42.1 |
w005 |
d002 |
|
Bi2-M08E-VP6X 7M |
4602960 |
2 mm, |
Change-Over contact, PNP |
7 m Cable |
8 x 42.1 |
w006 |
d002 |
|
Bi2-M08K-VN6X 7M |
4602969 |
2 mm, |
Change-Over contact, NPN |
7 m Cable |
8 x 24.1 |
w005 |
d003 |
|
Bi2-M08K-VP6X 7M |
4602803 |
2 mm, |
Change-Over contact, PNP |
7 m Cable |
8 x 24.1 |
w006 |
d003 |
|
Bi2-M08-VN6X-H1341 |
4602808 |
2 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 47.6 |
w007 |
d013 |
|
Bi2-M08-VP6X-H1341 |
4602811 |
2 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 47.6 |
w008 |
d013 |
|
Bi2-M08E-VN6X-H1341 |
4602958 |
2 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 57.6 |
w007 |
d014 |
|
Bi2-M08E-VP6X-H1341 |
4602961 |
2 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 57.6 |
w008 |
d014 |
|
Bi2-M08K-VN6X-H1341 |
4602801 |
2 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 39.6 |
w007 |
d015 |
|
Bi2-M08K-VP6X-H1341 |
4602804 |
2 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 39.6 |
w008 |
d015 |
|
Ni3-M08E-VN6X 7M |
4602837 |
3 mm, |
Change-Over contact, NPN |
7 m Cable |
8 x 42.1 |
w005 |
d008 |
|
Ni3-M08E-VP6X 7M |
4602844 |
3 mm, |
Change-Over contact, PNP |
7 m Cable |
8 x 42.1 |
w006 |
d008 |
|
Ni3-M08K-VN6X 7M |
4602854 |
3 mm, |
Change-Over contact, NPN |
7 m Cable |
8 x 24.1 |
w005 |
d009 |
|
Ni3-M08K-VP6X 7M |
4602857 |
3 mm, |
Change-Over contact, PNP |
7 m Cable |
8 x 24.1 |
w006 |
d009 |
|
Ni3-M08-VN6X-H1341 |
4602863 |
3 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 47.6 |
w007 |
d016 |
|
Ni3-M08-VP6X-H1341 |
4602866 |
3 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 47.6 |
w008 |
d016 |
|
Ni3-M08E-VN6X-H1341 |
4602838 |
3 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 57.6 |
w007 |
d017 |
|
Ni3-M08E-VP6X-H1341 |
4602845 |
3 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 57.6 |
w008 |
d017 |
|
Ni3-M08K-VN6X-H1341 |
4602855 |
3 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
8 x 39.6 |
w007 |
d018 |
|
Ni3-M08K-VP6X-H1341 |
4602858 |
3 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
8 x 39.6 |
w008 |
d018 |
|
Bi4-M12-VN6X-H1141 |
1643200 |
4 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 52 |
w007 |
d020 |
|
Bi4-M12E-VP6X-H1141 |
4608031 |
4 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
12 x 62 |
w008 |
d022 |
|
Bi4-M12E-VN6X-H1141 |
1643201 |
4 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 62 |
w007 |
d022 |
|
Ni8-M12-VP6X 7M |
4611327 |
8 mm, |
Change-Over contact, PNP |
7 m Cable |
12 x 54 |
w006 |
d023 |
|
Ni8-M12-VN6X 7M |
4611326 |
8 mm, |
Change-Over contact, NPN |
7 m Cable |
12 x 54 |
w005 |
d023 |
|
Ni8-M12-VP6X-H1141 |
4611324 |
8 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
12 x 52 |
w008 |
d021 |
|
Ni8-M12-VN6X-H1141 |
4611323 |
8 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 52 |
w007 |
d021 |
|

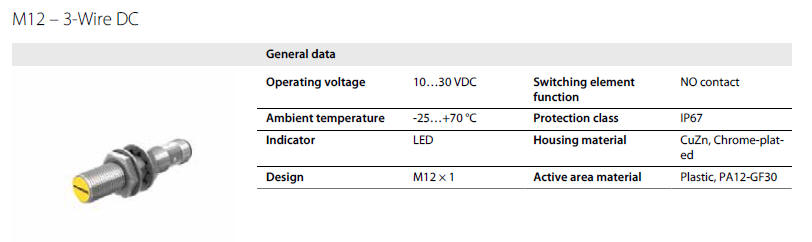

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi2-M12-AP6X |
46050 |
2 mm, |
NO contact, PNP |
2 m Cable |
12x54 |
w001 |
d019 |
|
Bi2-M12-AN6X |
46051 |
2 mm, |
NO contact, NPN |
2 m Cable |
12x54 |
w002 |
d019 |
|
Bi2-M12-AP6X-H1141 |
46065 |
2 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
12x52 |
w004 |
d020 |
|
Bi2-M12-AN6X-H1141 |
46066 |
2 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
12x52 |
w003 |
d020 |
|
Bi4-M12-AP6X |
4607006 |
4 mm, |
NO contact, PNP |
2 m Cable |
12x54 |
w001 |
d019 |
|
Bi4-M12-AP6X 7M |
4607012 |
4 mm, |
NO contact, PNP |
7 m Cable |
12x54 |
w001 |
d019 |
|
Bi4-M12-AN6X |
4607130 |
4 mm, |
NO contact, NPN |
2 m Cable |
12x54 |
w002 |
d019 |
|
Bi4-M12-AN6X 7M |
4607131 |
4 mm, |
NO contact, NPN |
7 m Cable |
12x54 |
w002 |
d019 |
|
Bi4-M12-AP6X-H1141 |
46070 |
4 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
12x52 |
w004 |
d020 |
|
Bi4-M12-AN6X-H1141 |
46071 |
4 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
12x52 |
w003 |
d020 |
|
Ni8-M12-AP6X-H1141 |
4611310 |
8 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
12x52 |
w004 |
d021 |
|
Ni8-M12-AN6X-H1141 |
4611315 |
8 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
12x52 |
w003 |
d021 |
|
Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi4-M12-VP6X |
1633300 |
4 mm, |
Change-Over contact, PNP |
2 m Cable |
12 x 54 |
w006 |
d019 |
|
Bi4-M12-VP6X 7M |
1633301 |
4 mm, |
Change-Over contact, PNP |
7 m Cable |
12 x 54 |
w006 |
d019 |
|
Bi4-M12-VN6X |
1643300 |
4 mm, |
Change-Over contact, NPN |
2 m Cable |
12 x 54 |
w005 |
d019 |
|
Bi4-M12-VN6X 7M |
1643301 |
4 mm, |
Change-Over contact, NPN |
7 m Cable |
12 x 54 |
w005 |
d019 |
|
Bi4-M12-VP6X-H1141 |
1633200 |
4 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
12 x 52 |
w008 |
d020 |
|
Bi4-M12-VN6X-H1141 |
1643200 |
4 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 52 |
w007 |
d020 |
|
Bi4-M12E-VP6X-H1141 |
4608031 |
4 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
12 x 62 |
w008 |
d022 |
|
Bi4-M12E-VN6X-H1141 |
1643201 |
4 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 62 |
w007 |
d022 |
|
Ni8-M12-VP6X 7M |
4611327 |
8 mm, |
Change-Over contact, PNP |
7 m Cable |
12 x 54 |
w006 |
d023 |
|
Ni8-M12-VN6X 7M |
4611326 |
8 mm, |
Change-Over contact, NPN |
7 m Cable |
12 x 54 |
w005 |
d023 |
|
Ni8-M12-VP6X-H1141 |
4611324 |
8 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
12 x 52 |
w008 |
d021 |
|
Ni8-M12-VN6X-H1141 |
4611323 |
8 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
12 x 52 |
w007 |
d021 |
|

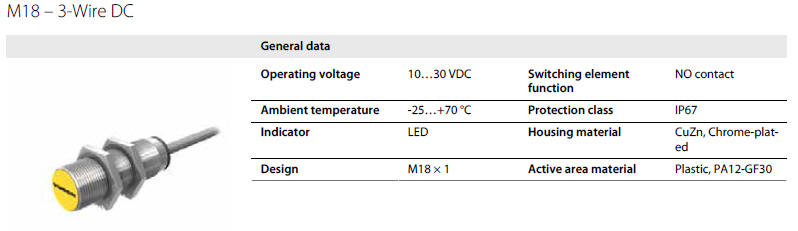

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi5-M18-AP6X |
46110 |
5 mm, |
NO contact, PNP |
2 m Cable |
18 x 54 |
w001 |
d024 |
|
Bi5-M18-AN6X |
46111 |
5 mm, |
NO contact, NPN |
2 m Cable |
18 x 54 |
w002 |
d024 |
|
Bi5-M18-AP6X-H1141 |
46145 |
5 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
18 x 52 |
w004 |
d025 |
|
Bi5-M18-AN6X-H1141 |
46146 |
5 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
18 x 52 |
w003 |
d025 |
|
Bi8-M18-AP6X |
4615030 |
8 mm, |
NO contact, PNP |
2 m Cable |
18 x 54 |
w001 |
d024 |
|
Bi8-M18-AP6X 7M |
4615031 |
8 mm, |
NO contact, PNP |
7 m Cable |
18 x 54 |
w001 |
d024 |
|
Bi8-M18-AN6X |
4615130 |
8 mm, |
NO contact, NPN |
2 m Cable |
18 x 54 |
w002 |
d024 |
|
Bi8-M18-AN6X 7M |
4615131 |
8 mm, |
NO contact, NPN |
7 m Cable |
18 x 54 |
w002 |
d024 |
|
Bi8-M18-AP6X-H1141 |
46150 |
8 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
18 x 52 |
w004 |
d025 |
|
Bi8-M18-AN6X-H1141 |
4615100 |
8 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
18 x 52 |
w003 |
d025 |
|
Ni14-M18-AP6X-H1141 |
4611400 |
14 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
18 x 52 |
w004 |
d026 |
|
Ni14-M18-AN6X-H1141 |
4611410 |
14 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
18 x 52 |
w003 |
d026 |
|

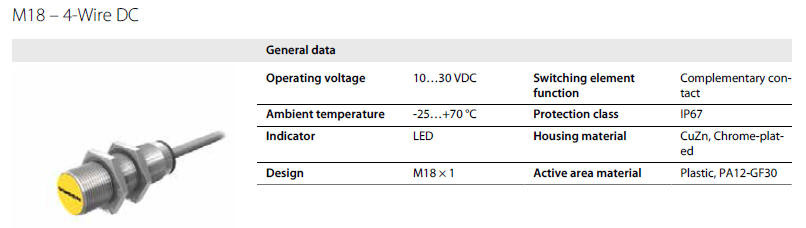

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi8-M18-VP6X |
4605154 |
8 mm, |
Change-Over contact, PNP |
2 m Cable |
18 x 54 |
w006 |
d024 |
|
Bi8-M18-VP6X 7M |
4590706 |
8 mm, |
Change-Over contact, PNP |
7 m Cable |
18 x 54 |
w006 |
d024 |
|
Bi8-M18-VN6X |
4605155 |
8 mm, |
Change-Over contact, NPN |
2 m Cable |
18 x 54 |
w005 |
d024 |
|
Bi8-M18-VN6X 7M |
4590705 |
8 mm, |
Change-Over contact, NPN |
7 m Cable |
18 x 54 |
w005 |
d024 |
|
Bi8-M18-VP6X-H1141 |
4605156 |
8 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
18 x 52 |
w008 |
d025 |
|
Bi8-M18-VN6X-H1141 |
4605157 |
8 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
18 x 52 |
w007 |
d025 |
|
Bi8-M18E-VP6X-H1141 |
4605226 |
8 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
18 x 72 |
w008 |
d027 |
|
Bi8-M18E-VN6X-H1141 |
4605227 |
8 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
18 x 72 |
w007 |
d027 |
|
Ni14-M18-VP6X 7M |
4590610 |
14 mm, |
Change-Over contact, PNP |
7 m Cable |
18 x 54 |
w006 |
d028 |
|
Ni14-M18-VN6X 7M |
4590609 |
14 mm, |
Change-Over contact, NPN |
7 m Cable |
18 x 54 |
w005 |
d028 |
|
Ni14-M18-VP6X-H1141 |
4590620 |
14 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
18 x 52 |
w008 |
d026 |
|
Ni14-M18-VN6X-H1141 |
4690630 |
14 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
18 x 52 |
w007 |
d026 |
|

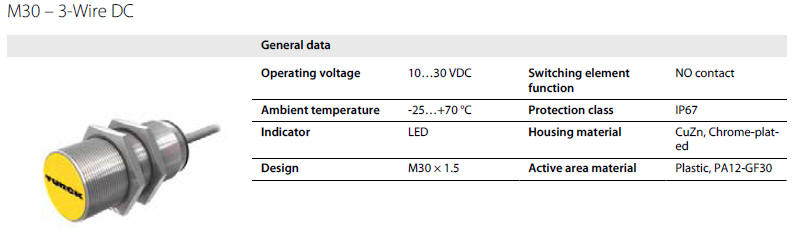

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi10-M30-AP6X |
46170 |
10 mm, |
NO contact, PNP |
2 m Cable |
30 x 64 |
w001 |
d029 |
|
Bi10-M30-AN6X |
46171 |
10 mm, |
NO contact, NPN |
2 m Cable |
30 x 64 |
w002 |
d029 |
|
Bi10-M30-AP6X-H1141 |
46175 |
10 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
30 x 62 |
w004 |
d030 |
|
Bi10-M30-AN6X-H1141 |
46176 |
10 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
30 x 62 |
w003 |
d030 |
|
Bi15-M30-AP6X |
4618530 |
15 mm, |
NO contact, PNP |
2 m Cable |
30 x 64 |
w001 |
d029 |
|
Bi15-M30-AP6X 7M |
4618532 |
15 mm, |
NO contact, PNP |
7 m Cable |
30 x 64 |
w001 |
d029 |
|
Bi15-M30-AN6X |
4618620 |
15 mm, |
NO contact, NPN |
2 m Cable |
30 x 64 |
w002 |
d029 |
|
Bi15-M30-AN6X 7M |
4618621 |
15 mm, |
NO contact, NPN |
7 m Cable |
30 x 64 |
w002 |
d029 |
|
Bi15-M30-AP6X-H1141 |
46185 |
15 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
30 x 62 |
w004 |
d030 |
|
Bi15-M30-AN6X-H1141 |
4618600 |
15 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
30 x 62 |
w003 |
d030 |
|
Ni20-M30-AP6X-H1141 |
4670510 |
20 mm, |
NO contact, PNP |
Connectors, M12 × 1 |
30 x 62 |
w004 |
d031 |
|
Ni20-M30-AN6X-H1141 |
4670515 |
20 mm, |
NO contact, NPN |
Connectors, M12 × 1 |
30 x 62 |
w003 |
d031 |
|

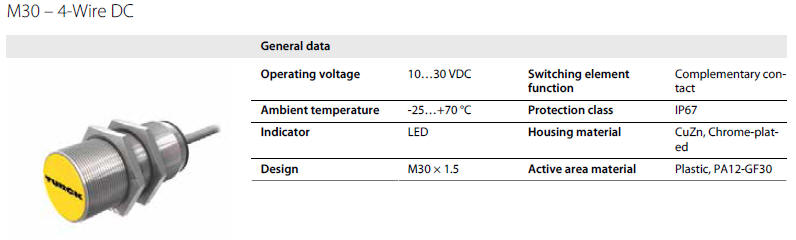

Type |
ident No |
Distance |
Output |
Connection |
Dimensions |
Wiring Diagram |
Dimensions Drawing |
|
Bi15-M30-VP6X |
4590716 |
15 mm, |
Change-Over contact, PNP |
2 m Cable |
30 x 64 |
w006 |
d029 |
|
Bi15-M30-VP6X 7M |
4590715 |
15 mm, |
Change-Over contact, PNP |
7 m Cable |
30 x 64 |
w006 |
d029 |
|
Bi15-M30-VN6X |
4590717 |
15 mm, |
Change-Over contact, NPN |
2 m Cable |
30 x 64 |
w005 |
d029 |
|
Bi15-M30-VN6X 7M |
4590714 |
15 mm, |
Change-Over contact, NPN |
7 m Cable |
30 x 64 |
w005 |
d029 |
|
Bi15-M30-VP6X-H1141 |
4590718 |
15 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
30 x 62 |
w008 |
d030 |
|
Bi15-M30-VN6X-H1141 |
4590719 |
15 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
30 x 62 |
w007 |
d030 |
|
Ni20-M30-VP6X 7M |
4590611 |
20 mm, |
Change-Over contact, PNP |
7 m Cable |
30 x 64 |
w006 |
d032 |
|
Ni20-M30-VN6X 7M |
4590613 |
20 mm, |
Change-Over contact, NPN |
7 m Cable |
30 x 64 |
w005 |
d032 |
|
Ni20-M30-VP6X-H1141 |
4590612 |
20 mm, |
Change-Over contact, PNP |
Connectors, M12 × 1 |
30 x 62 |
w008 |
d031 |
|
Ni20-M30-VN6X-H1141 |
4590614 |
20 mm, |
Change-Over contact, NPN |
Connectors, M12 × 1 |
30 x 62 |
w007 |
d031 |
|
|
