Profibus-PA Cable in Bulk

Note: Technical Info is lower down this page



FBY -**/SD Cable for Short Distances

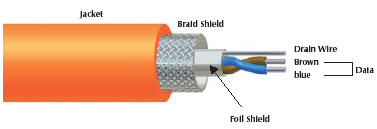

FBY cables have Aluminium Foil Shield, Copper Braid Shield and stranded drain wire.

Cable Type Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
FBY-BU/SD-100M 6611111 A 100 Blue PVC 2 x 0.8mm˛ 8 mm
FBY-BU/SD-250M 6611110 A 250 Blue PVC 2 x 0.8mm˛ 8 mm
FBY-BU/SD-500M 6611109 A 500 Blue PVC 2 x 0.8mm˛ 8 mm
FBY-BU/SD-1000M 6611108 A 1000 Blue PVC 2 x 0.8mm˛ 8 mm
FBY-BK/SD-100M  TBC A 100 Black PVC 2 x 0.8mm˛ 8 mm
FBY-BK/SD-250M  TBC A 250 Black PVC 2 x 0.8mm˛ 8 mm
FBY-BK/SD-500M  TBC A 500 Black PVC 2 x 0.8mm˛ 8 mm
FBY-BK/SD-1000M 6611100 A 1000 Black PVC 2 x 0.8mm˛ 8 mm
FBY-YE/SD-100M 6611115 A 100 Yellow PVC 2 x 0.8mm˛ 8 mm
FBY-YE/SD-250M 6611114 A 250 Yellow PVC 2 x 0.8mm˛ 8 mm
FBY-YE/SD-500M 6611113 A 500 Yellow PVC 2 x 0.8mm˛ 8 mm
FBY-YE/SD-1000M 6611112 A 1000 Yellow PVC 2 x 0.8mm˛ 8 mm
FBY-OG/SD-100M 6611107 A 100 Orange PVC 2 x 0.8mm˛ 8 mm
FBY-OG/SD-250M 6611106 A 250 Orange PVC 2 x 0.8mm˛ 8 mm
FBY-OG/SD-500M 6611105 A 500 Orange PVC 2 x 0.8mm˛ 8 mm
FBY-OG/SD-1000M 6611104 A 1000 Orange PVC 2 x 0.8mm˛ 8 mm




 FBY-**/LD Cable for Long Distances



FBY cables have Aluminium Foil Shield, Copper Braid Shield and stranded drain wire.

Cable Type  Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
FBY-BK/LD-100M 6611320 A 100 Black PVC 2 x 2.1mm˛ 11.5 mm
FBY-BK/LD-250M 6611321 A 250 Black PVC 2 x 2.1mm˛ 11.5 mm
FBY-BK/LD-500M 6611322 A 500 Black PVC 2 x 2.1mm˛ 11.5 mm
FBY-BK/LD-1000M 6611256 A 1000 Black PVC 2 x 2.1mm˛ 11.5 mm






 FBH-YE/SD Low Smoke Zero Halogen Cable for Short Distances

FBH cables are Low Smoke Zero Halogen and have Aluminium Foil Shield, Copper Braid Shield and stranded drain wire.

Cable Type  Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
FBH-YE/SD-100M 6611541 A 100 Yellow LSZH-PVC 2 x 0.8mm˛ 8 mm
FBH-YE/SD-250M 6611542 A 250 Yellow LSZH-PVC 2 x 0.8mm˛ 8 mm
FBH-YE/SD-500M 6611543 A 500 Yellow LSZH-PVC 2 x 0.8mm˛ 8 mm
FBH-YE/SD-1000M 6611299 A 1000 Yellow LSZH-PVC 2 x 0.8mm˛ 8 mm




FBA-YE/SD SWA Cable for Short Distances

FBA cables are Steel Wire Armoured and have Aluminium Foil Shield, Copper Braid Shield and stranded drain wire.

Cable Type Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
FBA-YE/SD-100M 6611490 A 100 Yellow PVC SWA 2 x 0.8mm˛ 11.8 mm
FBA-YE/SD-250M 6611491 A 250 Yellow PVC SWA 2 x 0.8mm˛ 11.8 mm
FBA-YE/SD-500M 6611492 A 500 Yellow PVC SWA 2 x 0.8mm˛ 11.8 mm
FBA-YE/SD-1000M 6611493 A 1000 Yellow PVC SWA 2 x 0.8mm˛ 11.8 mm





Type 482 Aluminium Armoured Cable for Short Distances

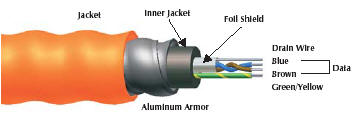

482 cables are Aluminium Armoured and have Aluminium Foil Shield, Copper Braid Shield, an earthing (ground) wire and stranded drain wire.


Cable Type Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
Cable 482A-100M TBC A 100 Orange PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482A-250M TBC A 250 Orange PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482A-500M TBC A 500 Orange PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482A-1000M TBC A 1000 Orange PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482BA-100M TBC A 100 Blue PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482BA-250M TBC A 250 Blue PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482BA-500M TBC A 500 Blue PVC AL-A 2 x 0.8mm˛+E 12.7 mm
Cable 482BA-1000M TBC A 1000 Blue PVC AL-A 2 x 0.8mm˛+E 12.7 mm




FB4910 Extreme Environment Cable for Short Distances

FB4910 cables are designed for high and low temperatures, marine use and have Aluminium Foil Shield, Copper Braid Shield, an earthing (ground) wire and stranded drain wire.


Cable Type Ident No Type Length (m) Outer Colour Outer Protection Cross Section External Diameter
FB4910-BK-100M TBC A 100 Black TPE 2 x 0.8mm˛+E 8.9 mm
FB4910-BK-250M TBC A 100 Black TPE 2 x 0.8mm˛+E 8.9 mm
FB4910-BK-300M 6611296 A 300 Black TPE 2 x 0.8mm˛+E 8.9 mm
FB4910-BK-500M TBC A 500 Black TPE 2 x 0.8mm˛+E 8.9 mm
FB4910-BK-1000M TBC A 1000 Black TPE 2 x 0.8mm˛+E 8.9 mm



Cable technology

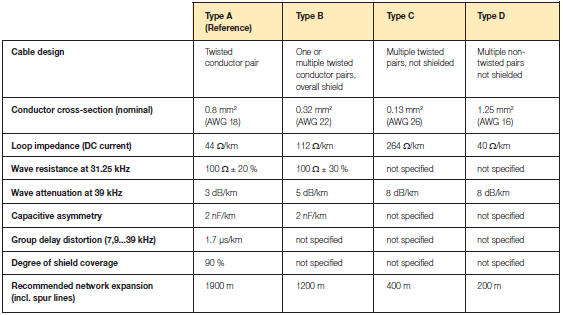

A two or three wire cable is prescribed by IEC 61158-2 as the transmission medium for transferring energy and data. Electrical data and permissible cable types are not prescribed. Cable parameters determine the achievable fieldbus properties such as the distances that may be covered, number of connectable stations and electromagnetic compatibility. The following 4 Types are available:

NOTE: Cables conforming to the minimum requirements of type A, should be used for new installations. Cable types C and D should only be used in so-called “Retrofit Applications” (usage of cable already installed) involving only very limited network extensions. It is necessary to consider that in these cases the immunity to interference during data transmission may not meet the demands described in the standard.

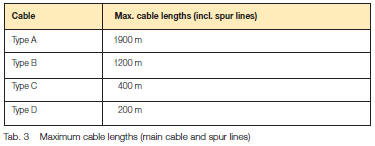

Maximum cable lengths: The sum of main cable lengths and all spur line lengths results in the overall cable length, as already defined in Tab. 1 as the network expansion (see Tab. 3).

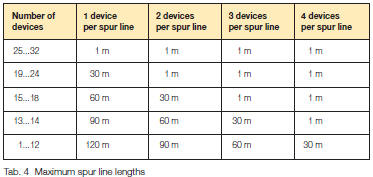

Maximum spur cable lengths: Depends on the number of field devices per spur line and is listed in Tab. 4.
