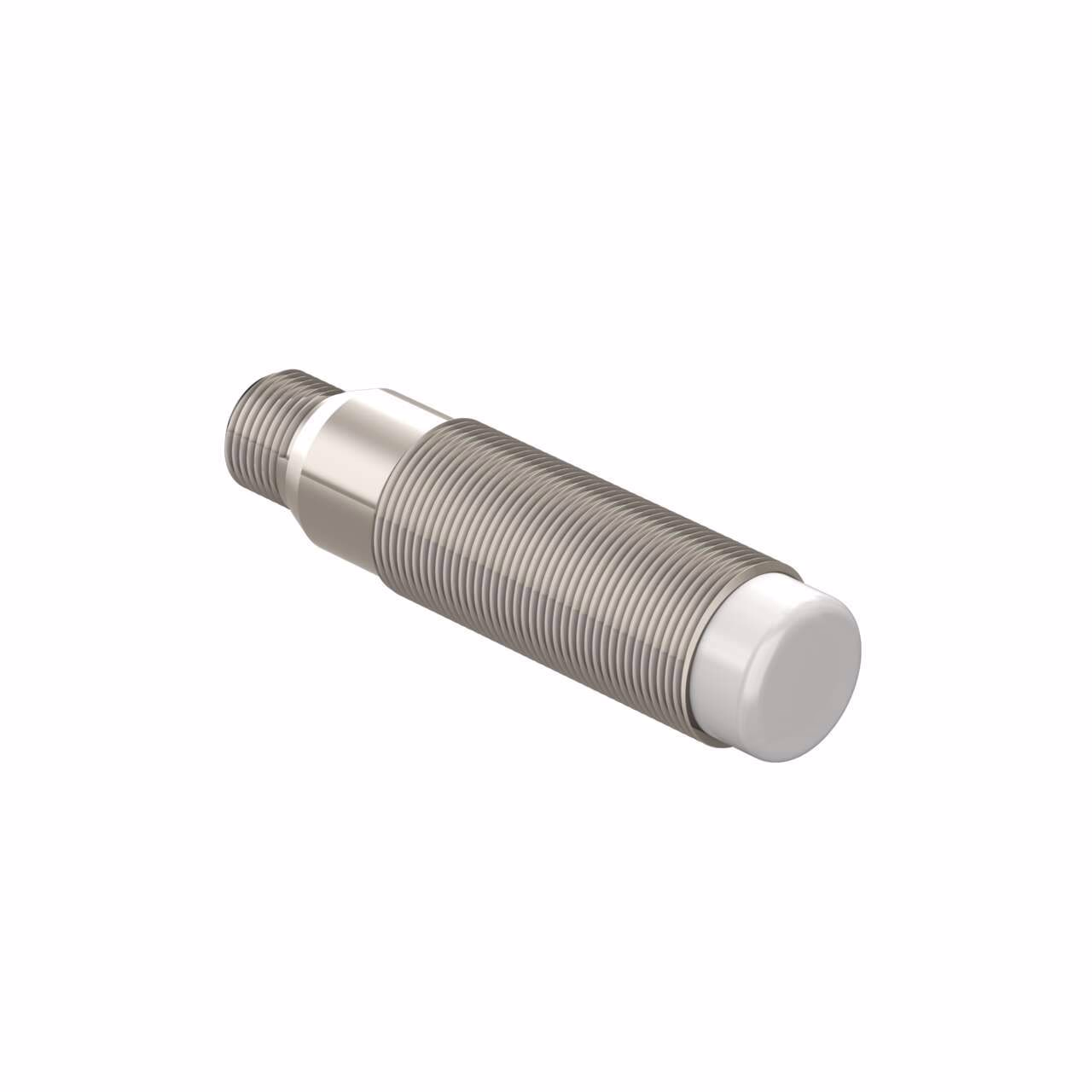

18 mm Metal Barrel General Purpose Indicators: M18 Series – Banner – M18GRXPQ
M18 Series EZ-LIGHT: 2-Color General Purpose Indicator
Voltage: 10-30 V dc; Housing: Nickel-Plated Brass
Input: PNP; Colors: Green Red
M12 Integral QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Window Material | Thermoplastic Diffused |
| Animation Option 1 | Solid On |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 12/18/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Barrel Mount – Flat Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Mounting | M18 x 1.0 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4 |
| Operating voltage | 10-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 16.5 x 70.4 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Nickel-Plated Brass |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 18 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 25 |
| Max Input Response Time (ms) | 1 |
Description
M18 Series EZ-LIGHT: 2-Color General Purpose Indicator
Voltage: 10-30 V dc; Housing: Nickel-Plated Brass
Input: PNP; Colors: Green Red
M12 Integral QD
