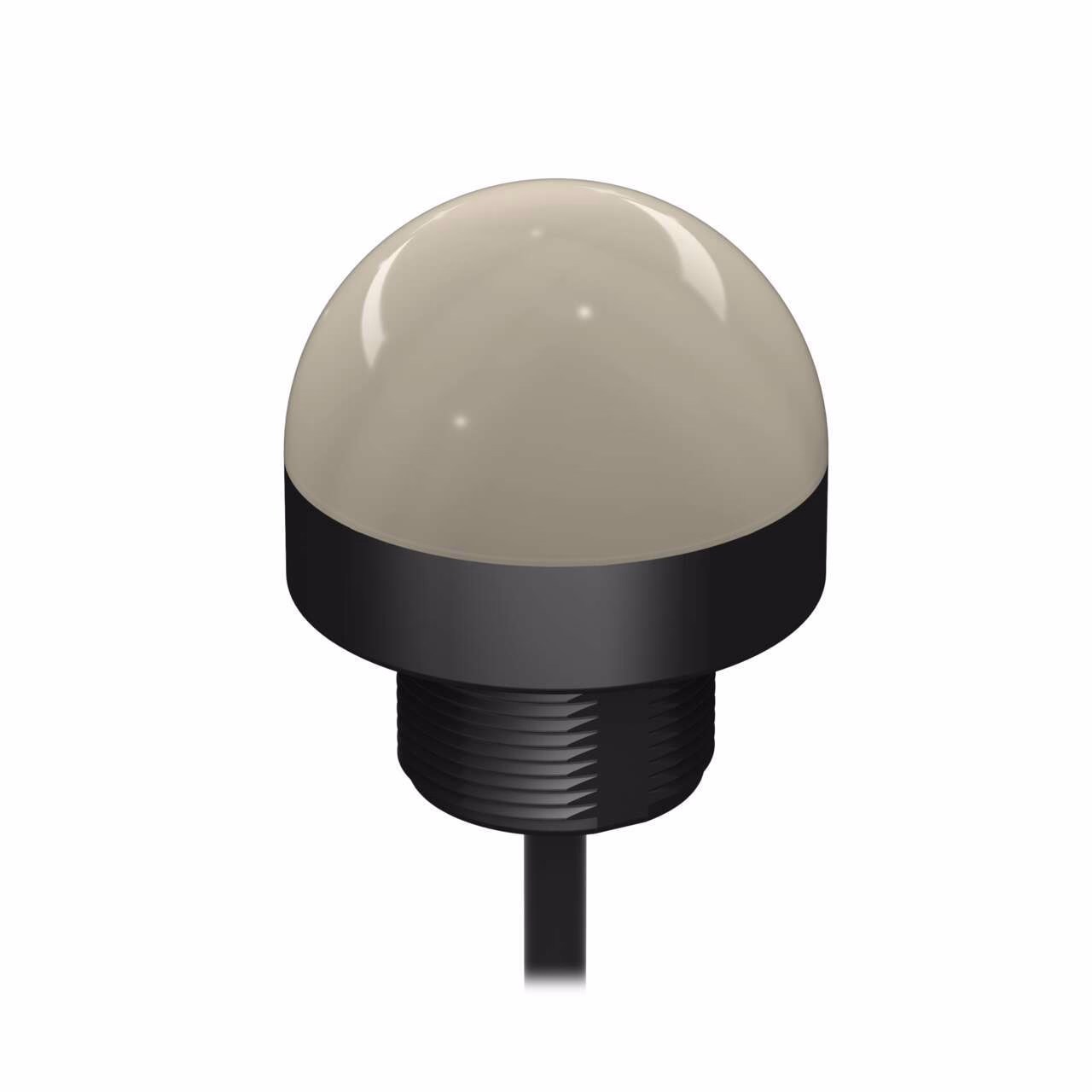

Banner – K50LGXXA120
K50 Series EZ-LIGHT: 1-Color AC Indicator
Voltage: 85-130 V ac; Housing: Polycarbonate; IP67
Color: Green
2 m (6.5 ft) Integral Cable
| Color Technology | Standard LED |
|---|---|
| Connection | Cable |
| Discrete | Yes |
| Feature: Audible | No |
| Input Type | AC |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Encapsulated, Washdown Rated |
| Housing Style | Dome |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 55°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 85-130 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 58.0 |
| Power Good Output | AC |
| Programmable | No |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 2 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 15.0 |
| Max Input Response Time (ms) | 1.0 |
Description
K50 Series EZ-LIGHT: 1-Color AC Indicator
Voltage: 85-130 V ac; Housing: Polycarbonate; IP67
Color: Green
2 m (6.5 ft) Integral Cable
