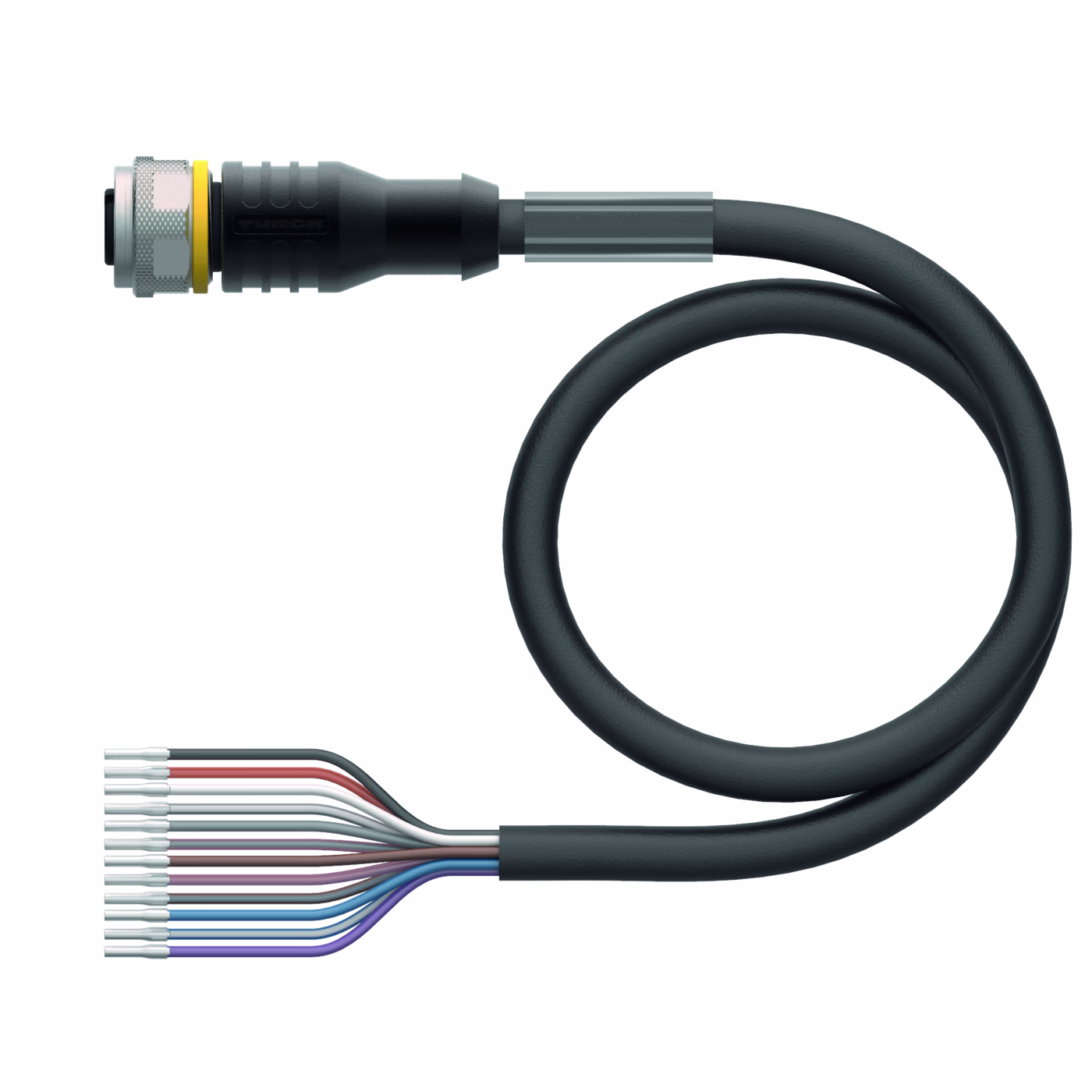

Actuator and Sensor Cable, PUR RKC12T-2/TXL
Actuator and Sensor Cable, PUR
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Black |
| Cable diameter (mm) | 5.4 |
| Cable length (m) | 2 |
| Cable quality | PUR |
| Connector A | A-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 1.5 |
| Design | Connection Cable |
| Number of Conductors | 12 |
| Number of pins | 12 |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Voltage output | 30 |
| Core cross section mm? | 0.14 |
