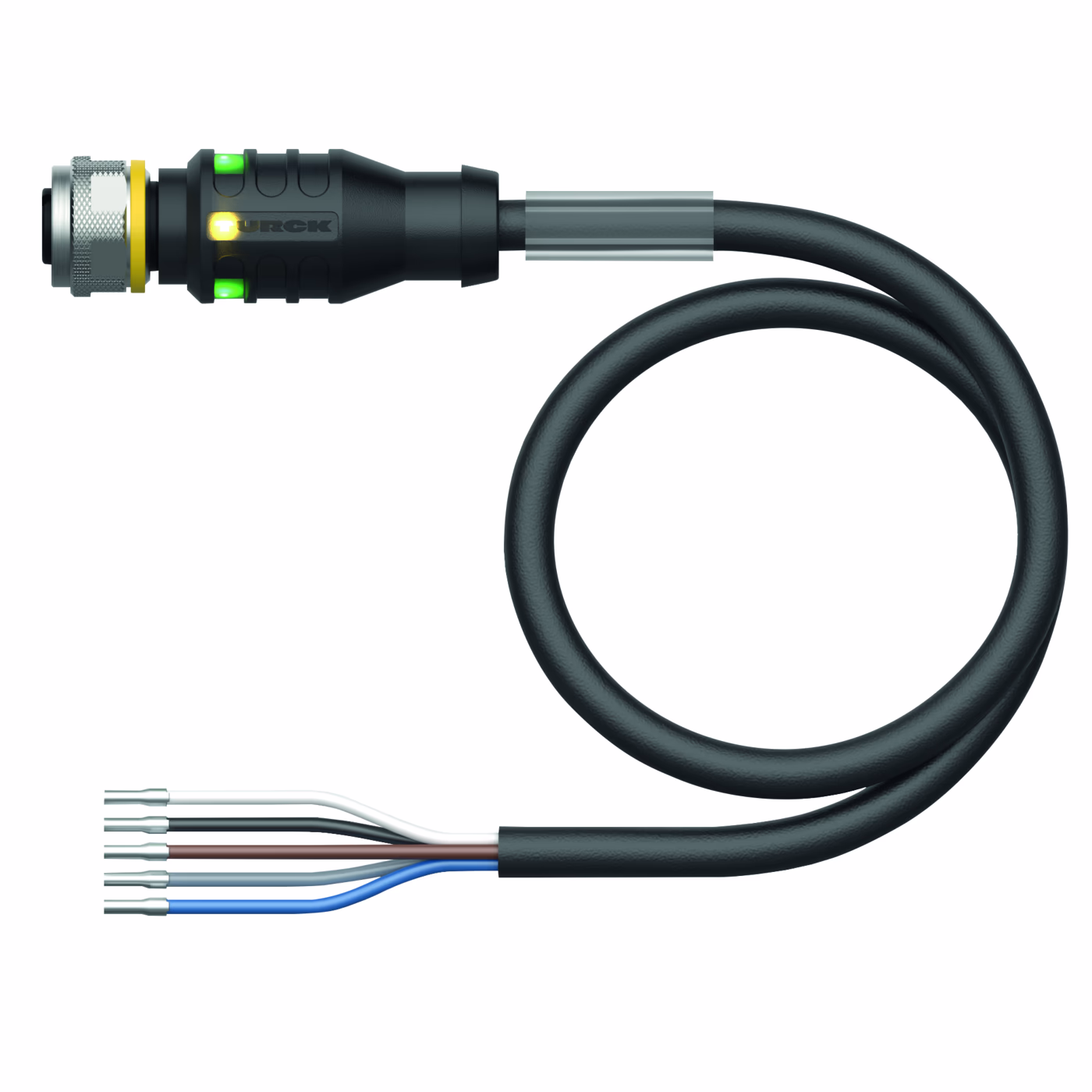

Actuator and Sensor Cable, PUR RKC4.5T-P7X2-10/TXL
Actuator and Sensor Cable, PUR
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Signal |
| Cable color | Black |
| Cable diameter (mm) | 4.8 |
| Cable length (m) | 10 |
| Cable quality | PUR |
| Connector A | A-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 4 |
| Design | Connection Cable |
| Number of Conductors | 5 |
| Number of pins | 5 |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Core cross section mm? | 0.34 |
