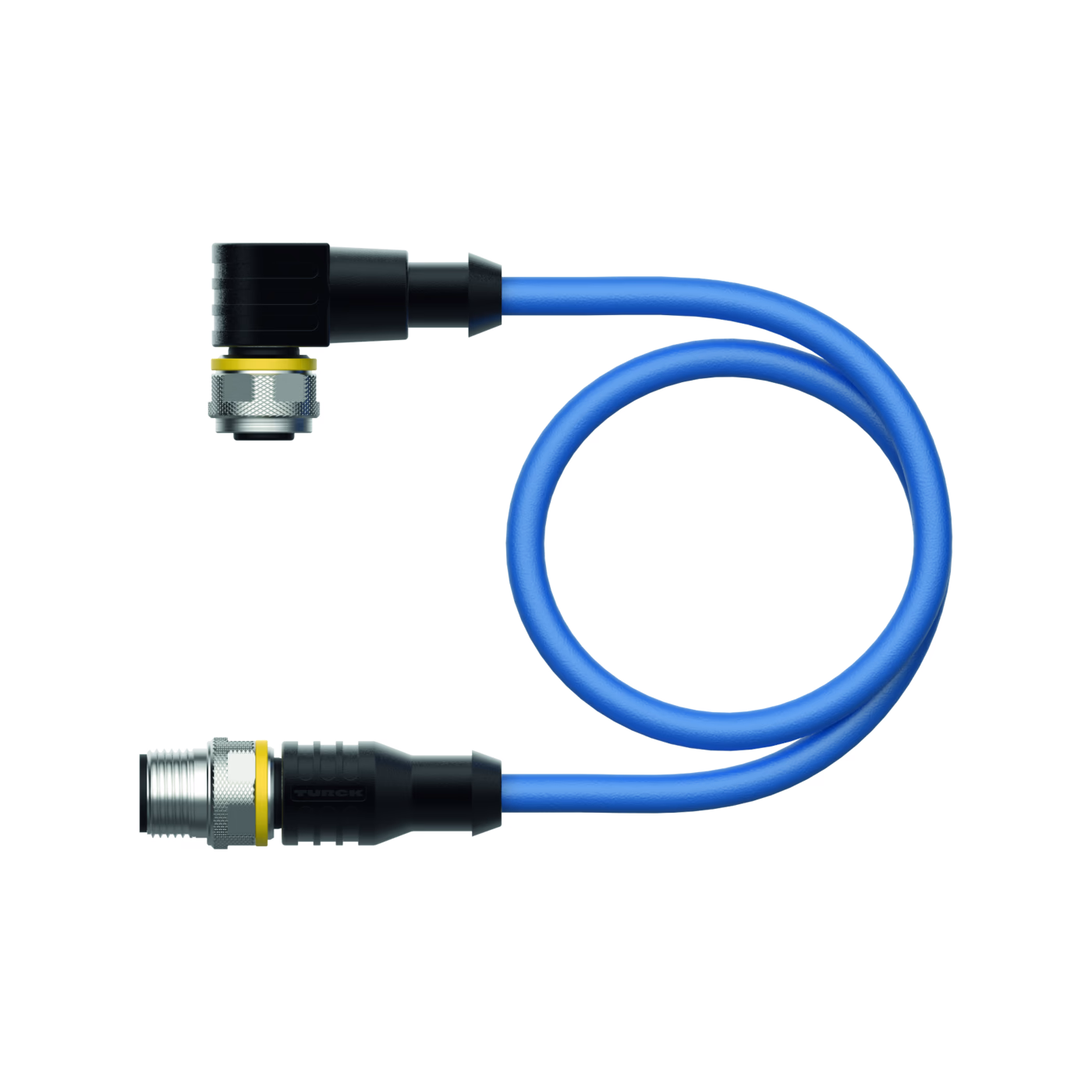

Actuator and Sensor Cable, PVC WKC4.221T-1-RSC4.221T/TEB
Actuator and Sensor Cable, PVC
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -5 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Blue |
| Cable length (m) | 1 |
| Cable quality | PVC |
| Connector A | A-coded, Angled, Female, M12×1 |
| Connector B | A-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 4 |
| Design | Extension Cable |
| Number of Conductors | 2 |
| Number of pins | 2 |
| Plug body | Plastic |
| Voltage output | 250 |
| Cable diameter (mm) | 4.4 |
| Core cross section mm? | 0.5 |
