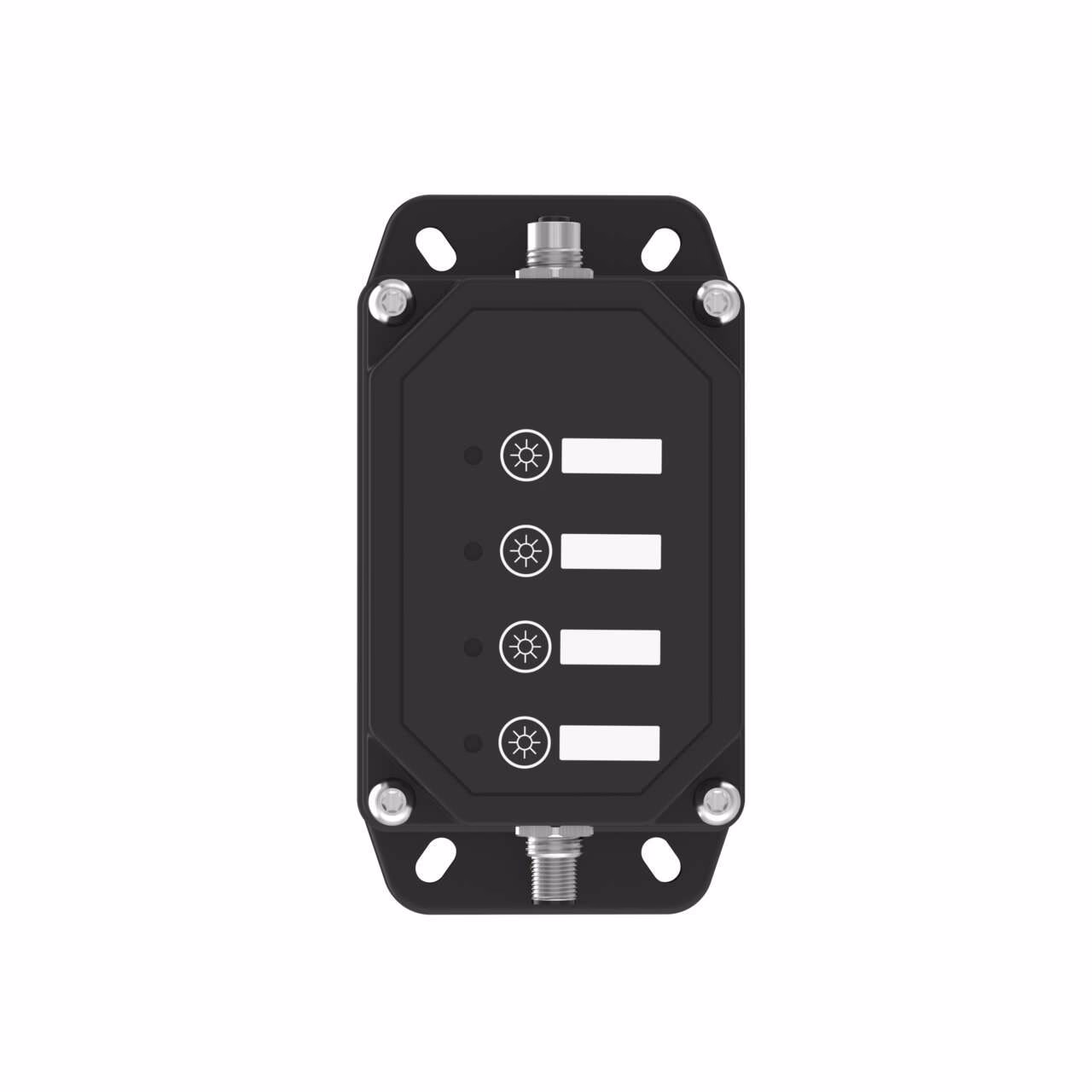

Andon Light Control Boxes – Banner – LCA130T4KQ
IO-Link Touch Controller: 4-Output
18-30 V dc
4-Touch Control Module
| Color Technology | RGB Configurable |
|---|---|
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Actuation | Yes |
| Button Operation | Latching |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Enclosure |
| Indication | No |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | No Thread |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 14 |
| Number of Conductors | 4.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 50.0 |
| Max Input Response Time (ms) | 10.0 |
Description
IO-Link Touch Controller: 4-Output
18-30 V dc
4-Touch Control Module
