Andon Light Control Boxes – Banner – LCA130T5Q

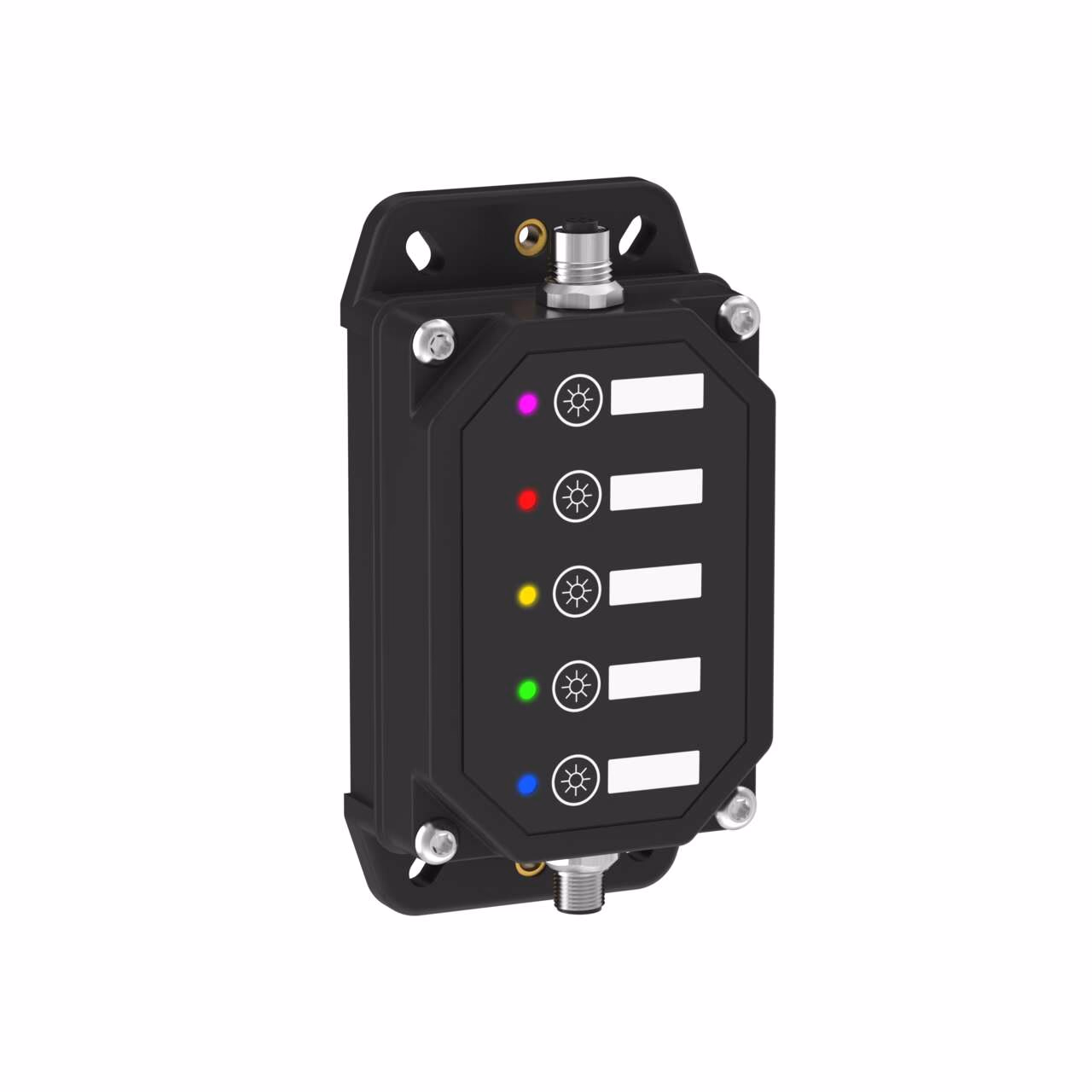

LCA130T Andon Control Box: 5-Output
Voltage: 18-30 V dc
5-Touch Control Module
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Illumination Switch Function | I=On; O=OFF; II=Flash |
| Pro-Editor Compatible (Discrete) | Yes |
| Actuation | Yes |
| EPLAN Original Sent Date | 06/08/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Enclosure |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Non-Illuminated | No |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 148 x 56 x 49.9 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 50.0 |
| Max Input Response Time (ms) | 40.0 |
| Max Output Response Time (ms) | 300.0 |
Description
LCA130T Andon Control Box: 5-Output
Voltage: 18-30 V dc
5-Touch Control Module
