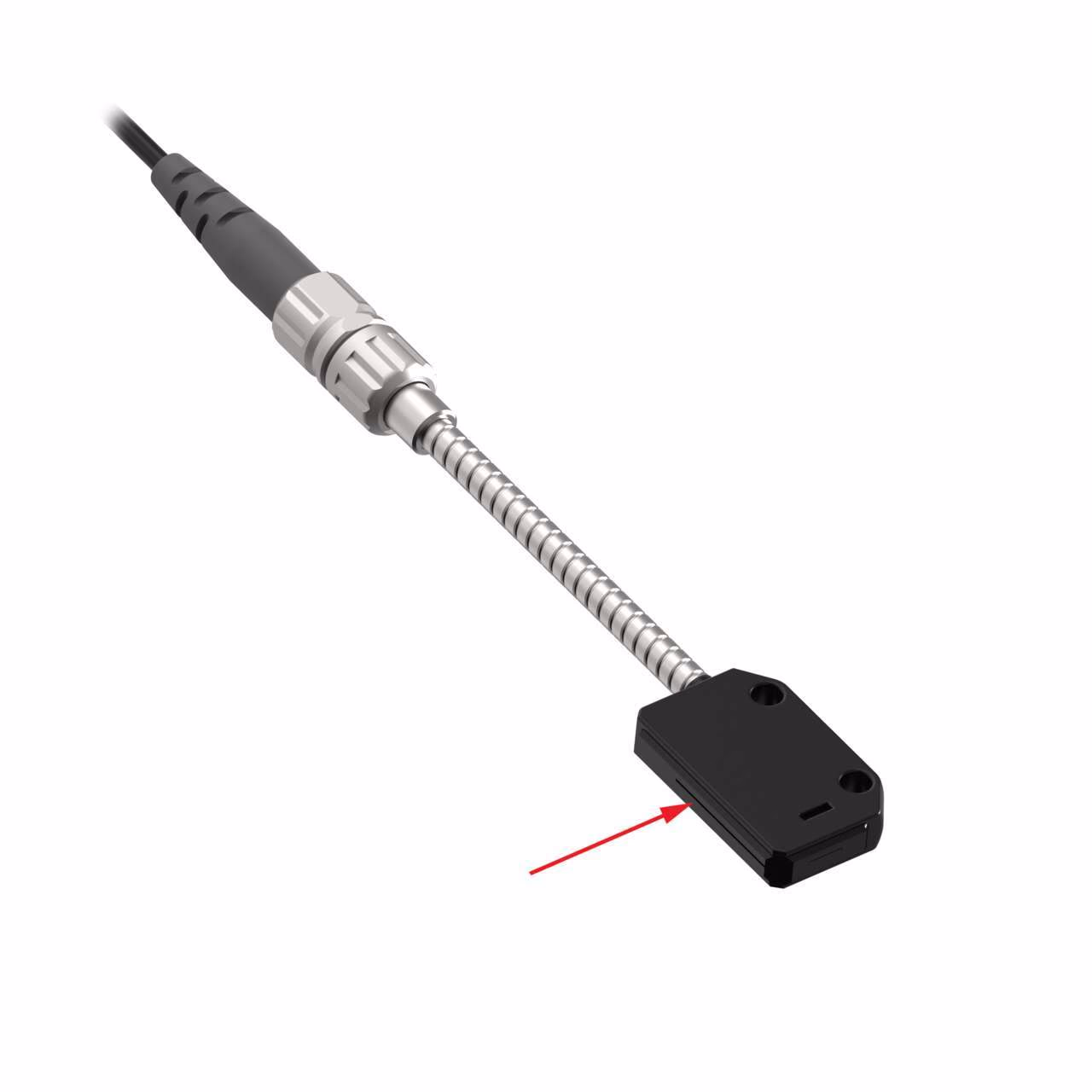

Angle Fiber Optics – Banner – PGIRS66U-15

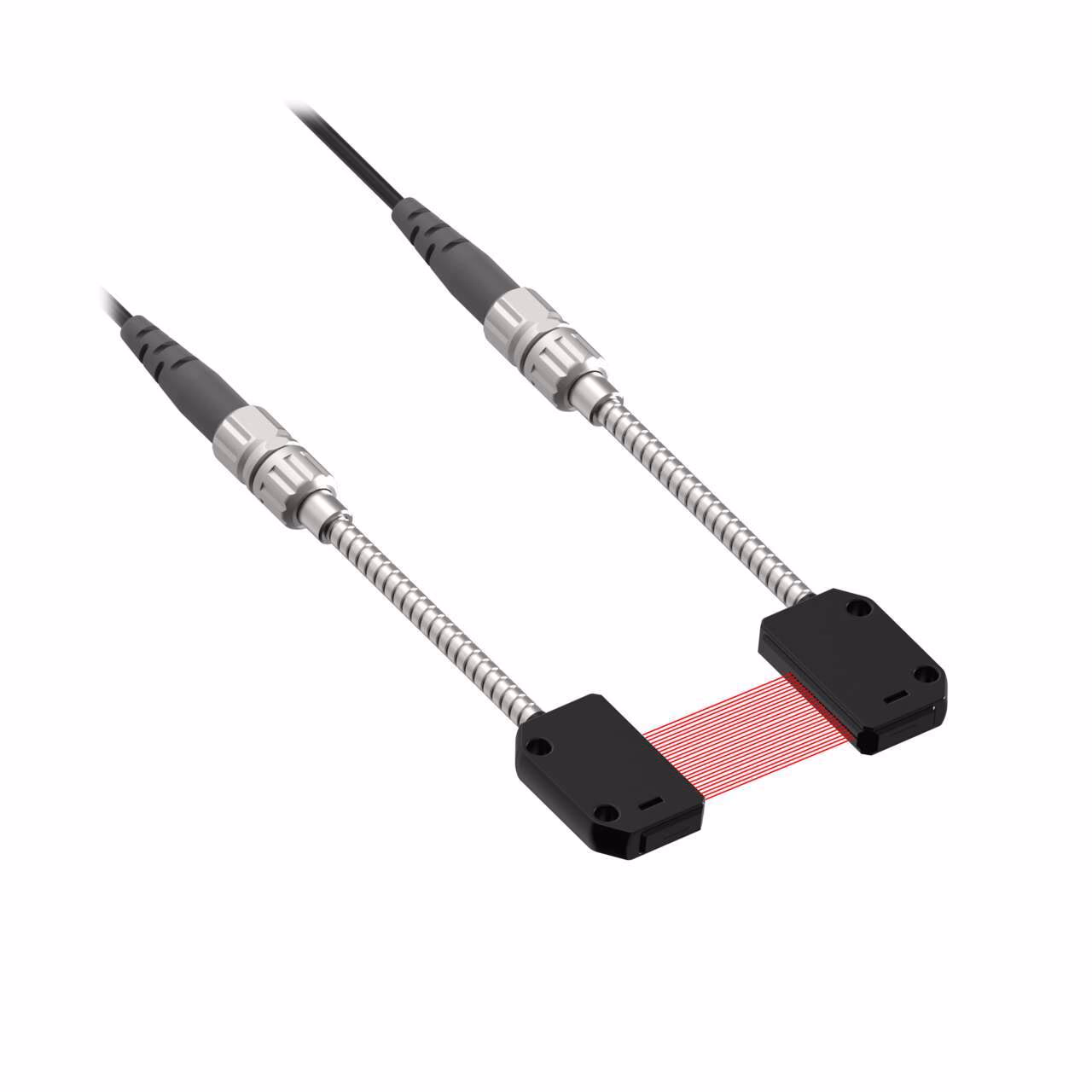

Plastic Fiber Group Array: Opposed Mode
15 mm Fiber Array 59X 0.25 mm Core
Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber; Free Cut
| Array Length (mm) | 15 |
|---|---|
| Beam Exit | Right Angle |
| Fiber Sensing End Size | 16.0 x 25.0 mm |
| Fiber Sensing End Size - Mounting Area | 16.0 x 25.0 mm |
| Fiber Sensing End Tip | Array |
| Max Distance: DF-G2 (mm) | 771 |
| Max Range: DF-G3 (mm) | >3m – <=5m |
| Minimum Repeat Bending Endurance | 1000 |
| Sensing End Material (Specific) | Zinc Alloy |
| Sensing End Segment 1 | Angle |
| Sensing End Segment 2 | Array |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Array |
| Core cross section mm? | 40 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Feature | Small Object Detection |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 2 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 19.7 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 59 x 0.25 |
| Max Distance: DF-G1 (mm) | 476 |
| Max Distance: DF-G3 (mm) | 3696 |
| Measured Max Distance (mm) | 476 |
Description
Plastic Fiber Group Array: Opposed Mode
15 mm Fiber Array 59X 0.25 mm Core
Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber; Free Cut
