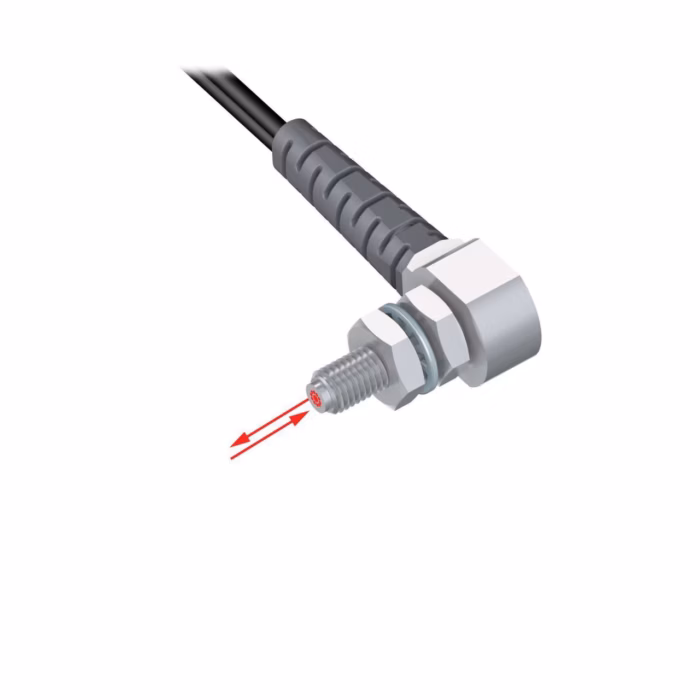

Inline Fiber Optics – Banner – BT66ST5-VL
Glass Fiber
Bifurcated 1.5 mm Bundle
M6 Threaded Tip
Stainless Sheathing 2 m Long
Terminated For Plastic Fiber Sensors
Vantage Line
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | M6 |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | 285 |
| Max Range: DF-G3 (mm) | >1m – <=3m |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Thread |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 25.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | Yes |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 1524.0 |
| Max Temp (C) | 249.0 |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 1.5 |
| Max Distance: DF-G1 (mm) | 176 |
| Max Distance: DF-G3 (mm) | 1368 |
| Measured Max Distance (mm) | 176 |
Description
Glass Fiber
Bifurcated 1.5 mm Bundle
M6 Threaded Tip
Stainless Sheathing 2 m Long
Terminated For Plastic Fiber Sensors
Vantage Line
