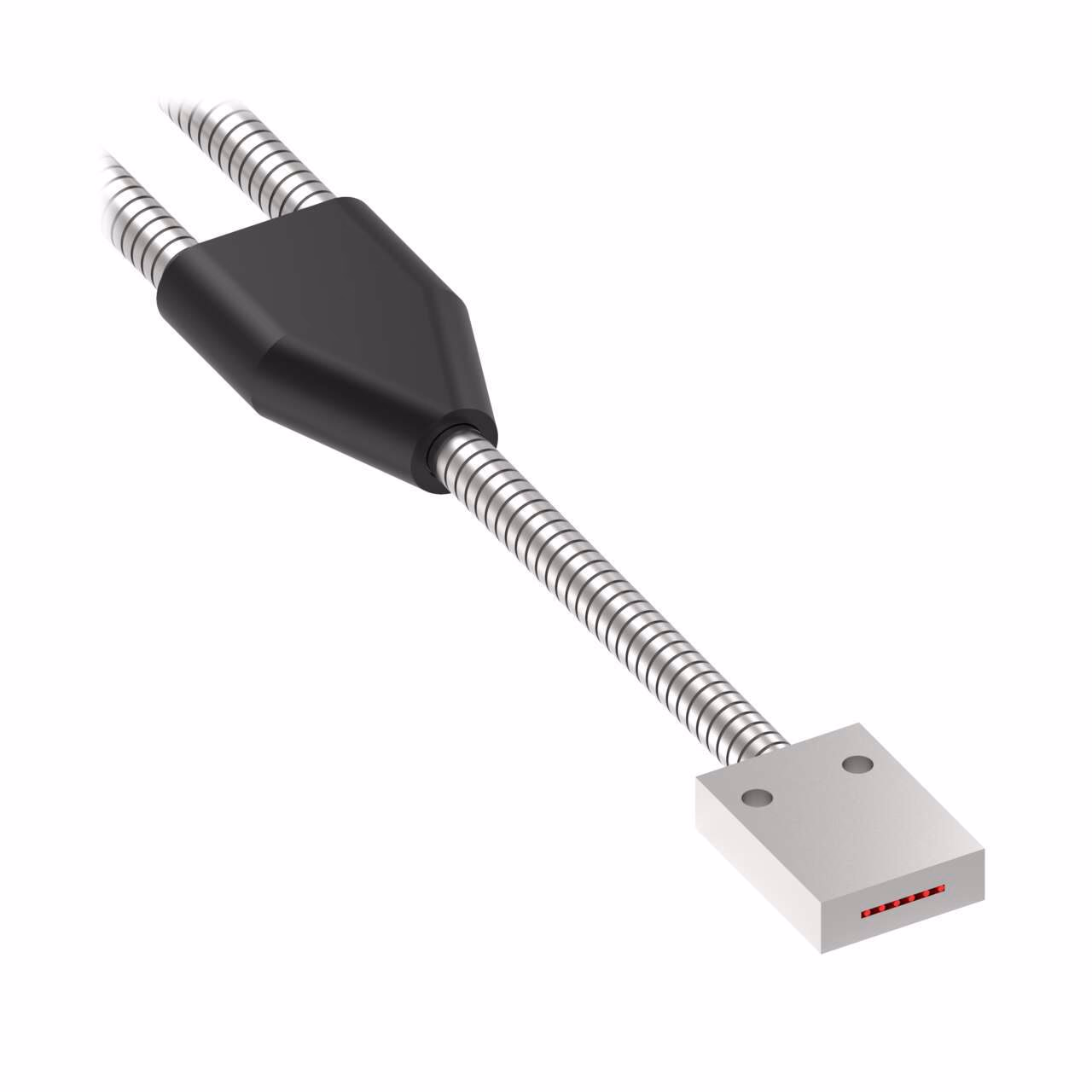

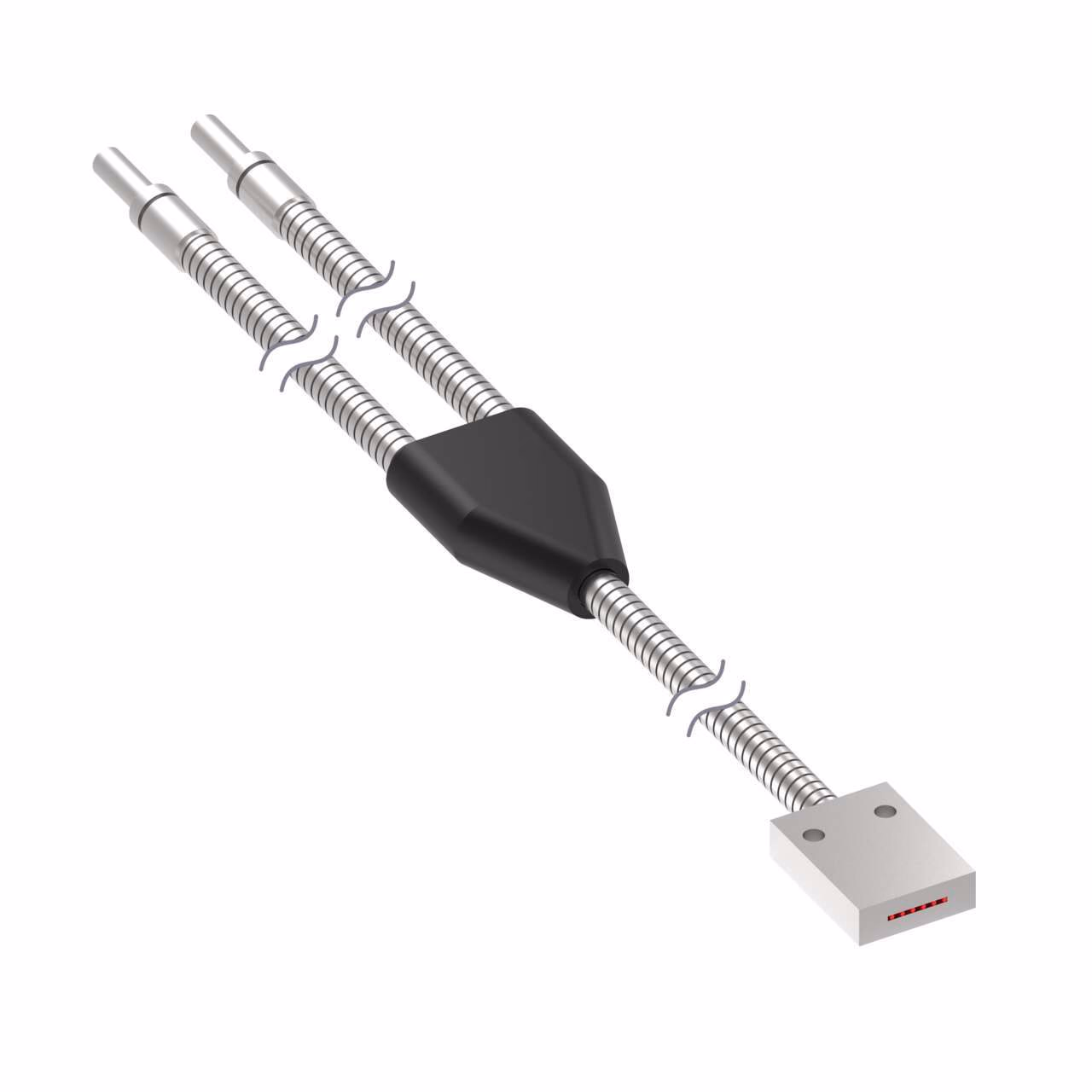

Array & Slot Fiber Optics – Banner – BR23S
Glass Fiber
Diffuse Mode 9.7 mm x 0.81 mm Array Bundle
Stainless Steel Sheathing
0.91 m long
25.4 mm x 19 mm Plastic Rectangle Sensing Tip
| Array Length (mm) | 9.7 |
|---|---|
| Beam Exit | In-line |
| Fiber Sensing End Size | 19.1 x 25.4 mm |
| Fiber Sensing End Size - Mounting Area | 19.1 x 25.4 mm |
| Fiber Sensing End Tip | Array |
| Max Distance: DF-G2 (mm) | No Data |
| Sensing End Material (Specific) | Polyethylene |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Array |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Array |
| Core cross section mm? | 25 |
| Coupler/converter/switch | Glass Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 3110.34 |
| Max Temp (C) | 249 |
| Fiber Length (m) | 0.914 |
| Core Diameter (mm) | 3.2 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Glass Fiber
Diffuse Mode 9.7 mm x 0.81 mm Array Bundle
Stainless Steel Sheathing
0.91 m long
25.4 mm x 19 mm Plastic Rectangle Sensing Tip
