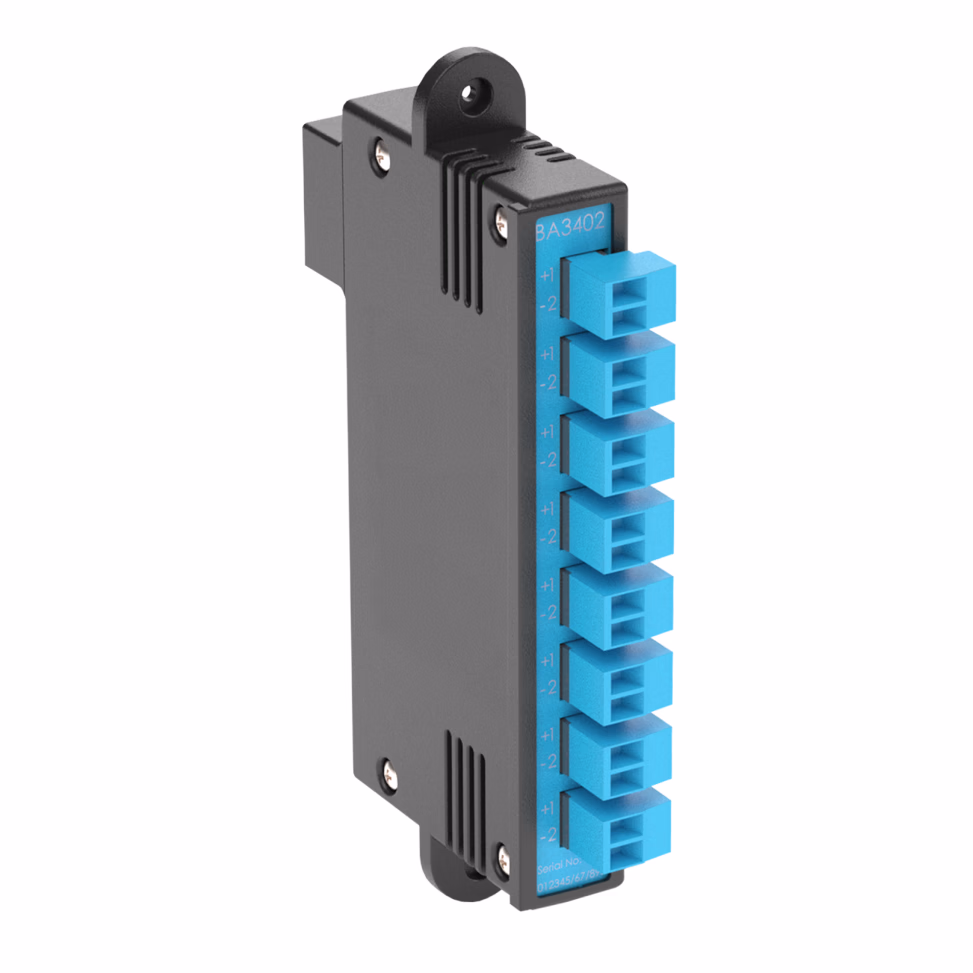

BA3402 Pageant Digital Input Module 8 x Proximity Detector – BA3402
Features:
Eight NAMUR 2-wire proximity detector inputs
Two inputs can decode a quadrature signal
Each input is a separate intrinsically safe circuit
Ex ia intrinsic safety certification
Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display
| Approvals | ATEX, IECEx, UKEX |
|---|---|
| Protection class | IP20 |
| Brand | Beka |
| Mounting | Plug-in |
Product details
The BA3402 Pageant Digital Input Module has eight 2-wire NAMUR compliant proximity detector inputs, each certified as a separate intrinsically safe circuit. The module is also intended for use with isolated mechanical switches or isolated sensors with an open collector output located in a high noise environment. For most contact and open collector inputs the simpler lower cost plug-in BA3401 Pageant module should also be considered.
Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 Operator Display without the need for additional certification or approval.
If requirements change, a BA3402 module may be fitted on-site to an Operator Panel which has already been installed and commissioned.
