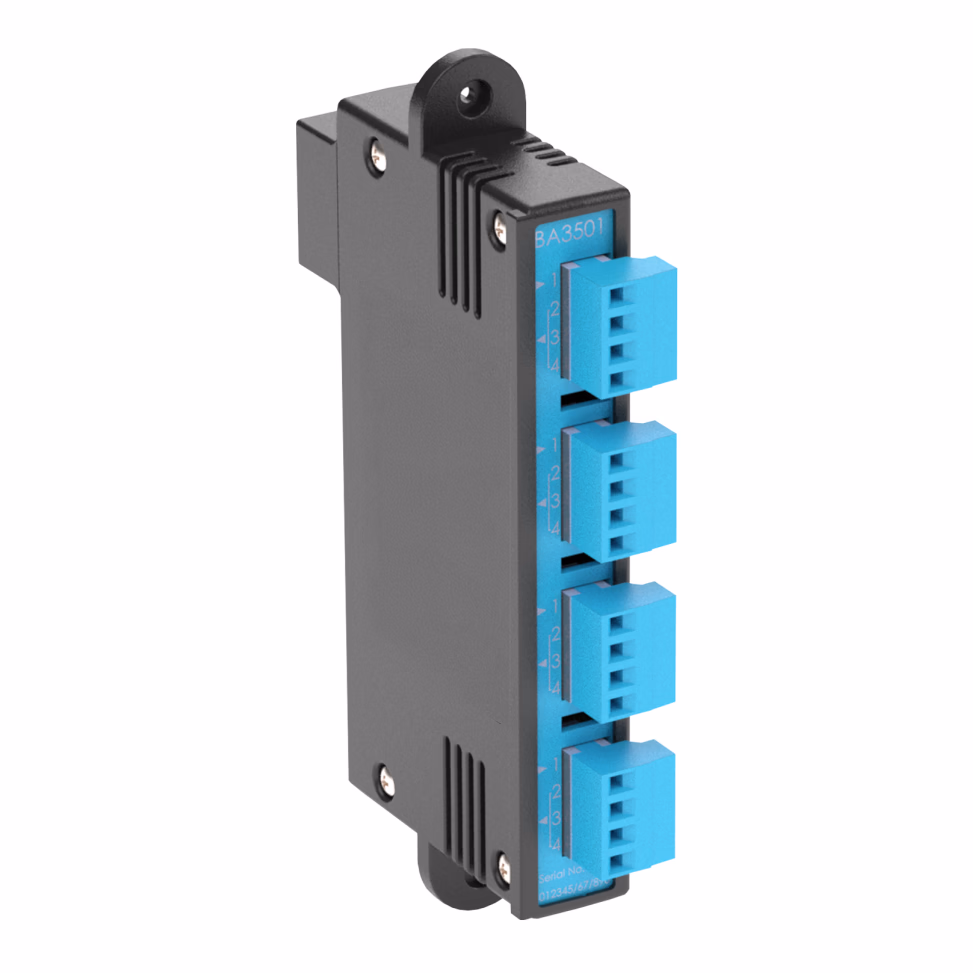

BA3501 Pageant Analogue Output Module 4 x 4/20mA – BA3501
Features:
Four 4/20mA unpowered outputs
Each output is galvanically isolated
Ex ia intrinsic safety certification
Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display
| Approvals | ATEX, IECEx, UKEX |
|---|---|
| Protection class | IP20 |
| Brand | Beka |
| Mounting | Plug-in |
Description
Product details
The Pageant BA3501 module has four individually isolated unpowered 4/20mA passive outputs. Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 operator display without the need for additional certification or approval.
If requirements change, a BA3501 module may be fitted on-site to an Operator Panel which has already been installed and commissioned.
