Backlights – Banner – LEDIB70X70QPMA

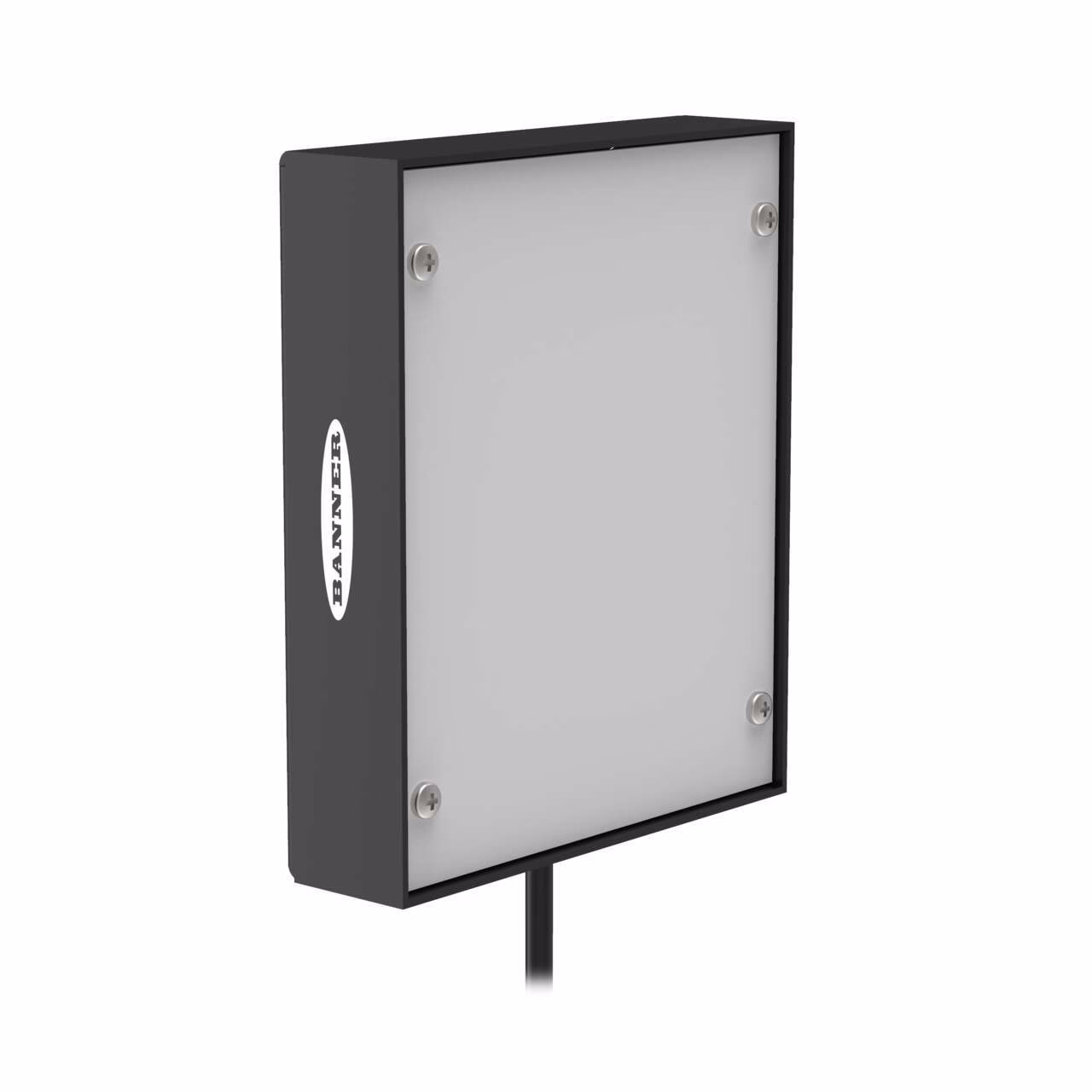

PresencePLUS 70 x 70 mm Backlight
Infrared LED 24 V dc
4-pin M12 male Connector Pin 2 OPEN
| Color | Infrared |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| QD Type/Cable Length | 150 mm; M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Backlight |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Number of Conductors | 4 |
| Physical Dimensions (LxWxH or DxH mm) | 110.4 x 92.6 x 25.0 |
| Port | M12 |
| Power Good Output | DC |
| Receptacle housing material B | Low-Carbon Steel |
| High Temperature (up to 100 C) | 50 |
| Max Current Color (mA) | 250 |
| Voltage supply connection | Pigtail PUR QD |
Description
PresencePLUS 70 x 70 mm Backlight
Infrared LED 24 V dc
4-pin M12 male Connector Pin 2 OPEN
