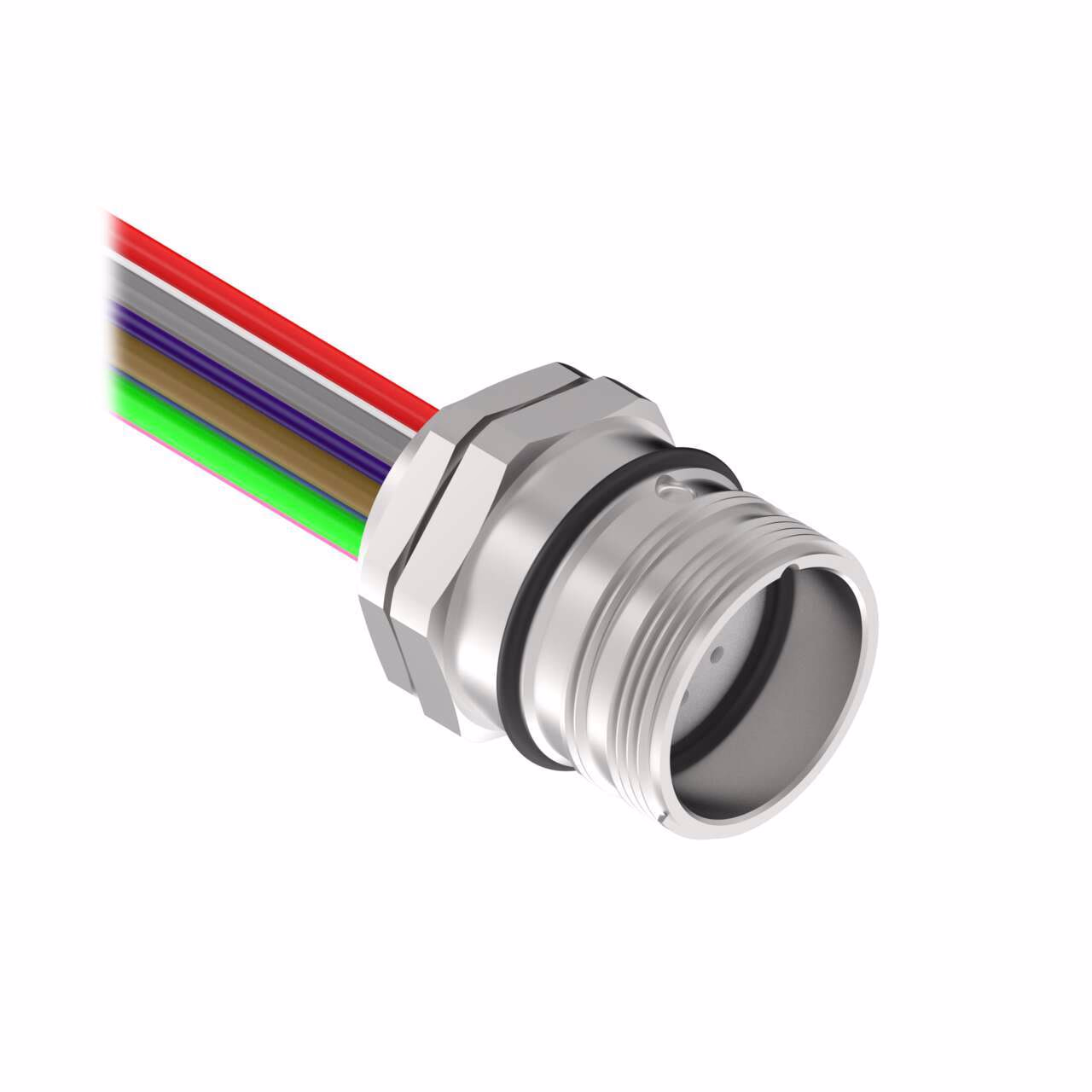

Banner – BR-M23F12F13-2
Receptacle 12-pin Female
12×22 AWG PVC 2 m Length
Front Mount with PG 13.5 Threads
| Cordset Length (m) | 2.0 |
|---|---|
| Coupling Nut Material | Nickel Plated Brass |
| Shield/No Shield | No Shield |
| Connector 1 Type | M23 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 4.0 |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 300 V ac/dc |
| Maximum Temp. (Celsius) | 80.0 |
| Number of pins.1 | 12.0 |
| Minimum Temp. (Celsius) | -30.0 |
Description
Receptacle 12-pin Female
12×22 AWG PVC 2 m Length
Front Mount with PG 13.5 Threads
