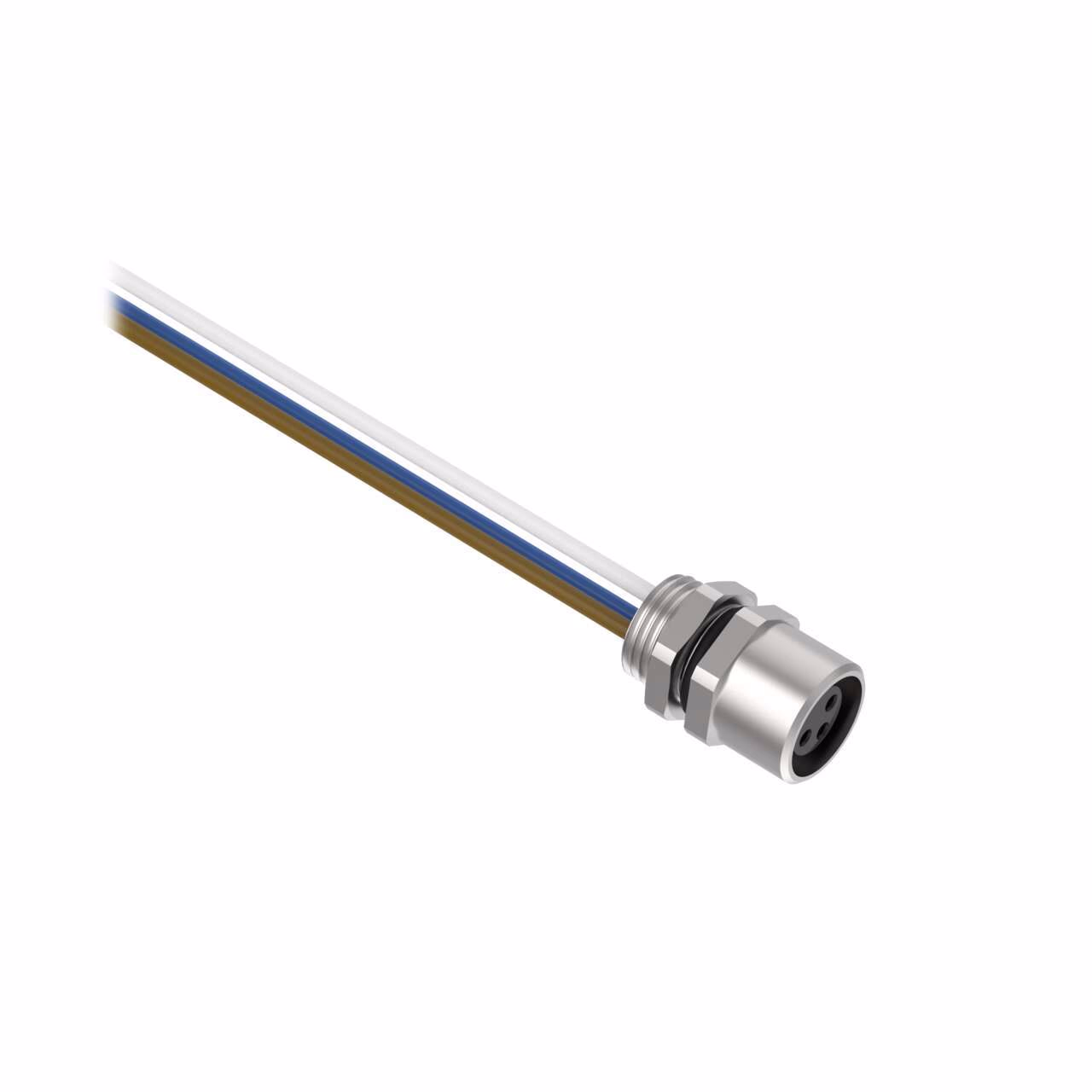

Banner – BR-M8F3R8-0.5
Receptacle 3-pin Female
3×24 PVC 0.5 m Length
Rear Mount w/ M8 Locknut
| Cordset Length (m) | 0.5 |
|---|---|
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Key Code | A |
| Connector 1 Type | M8 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 3.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 50 V ac / 60 V dc |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 3.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Receptacle 3-pin Female
3×24 PVC 0.5 m Length
Rear Mount w/ M8 Locknut
