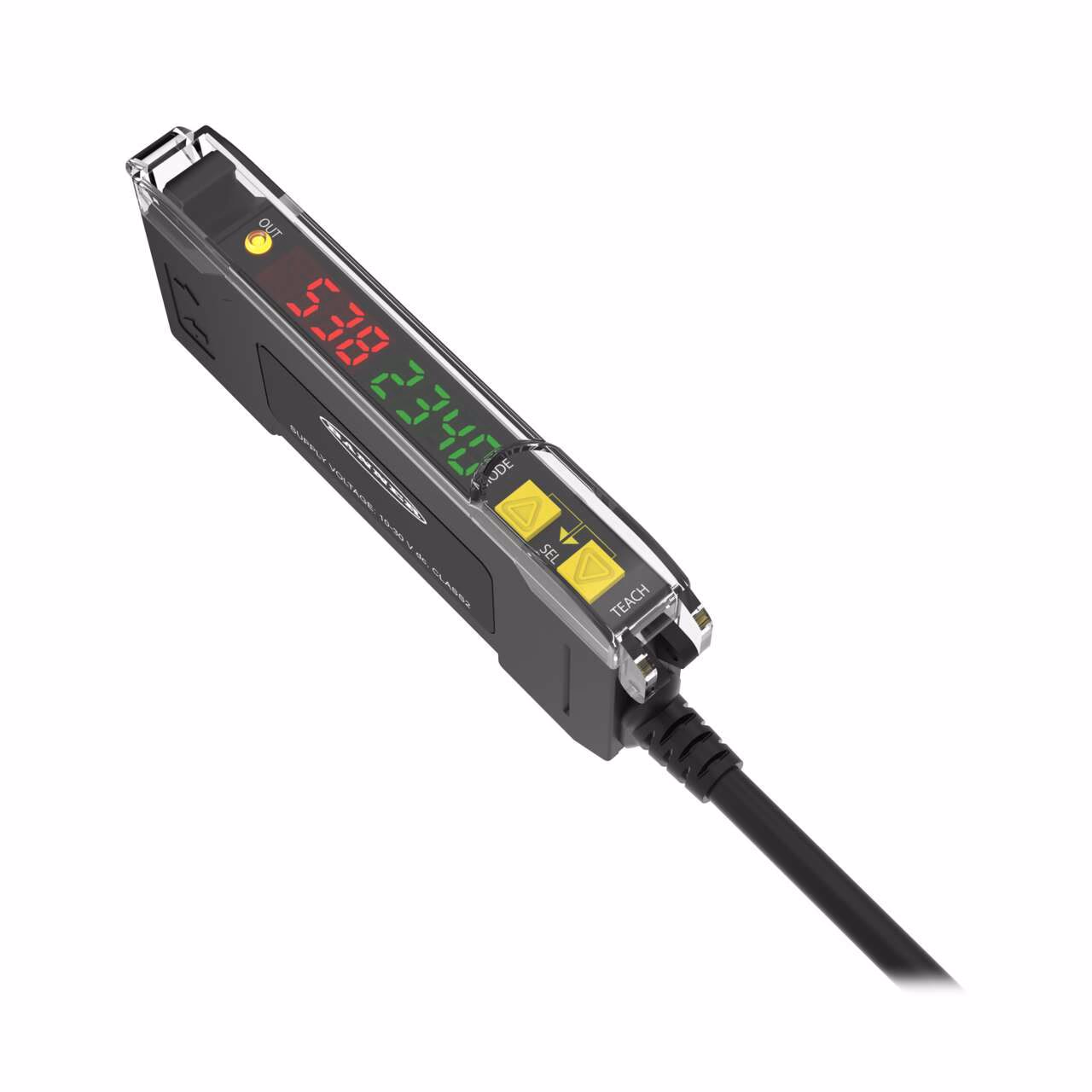

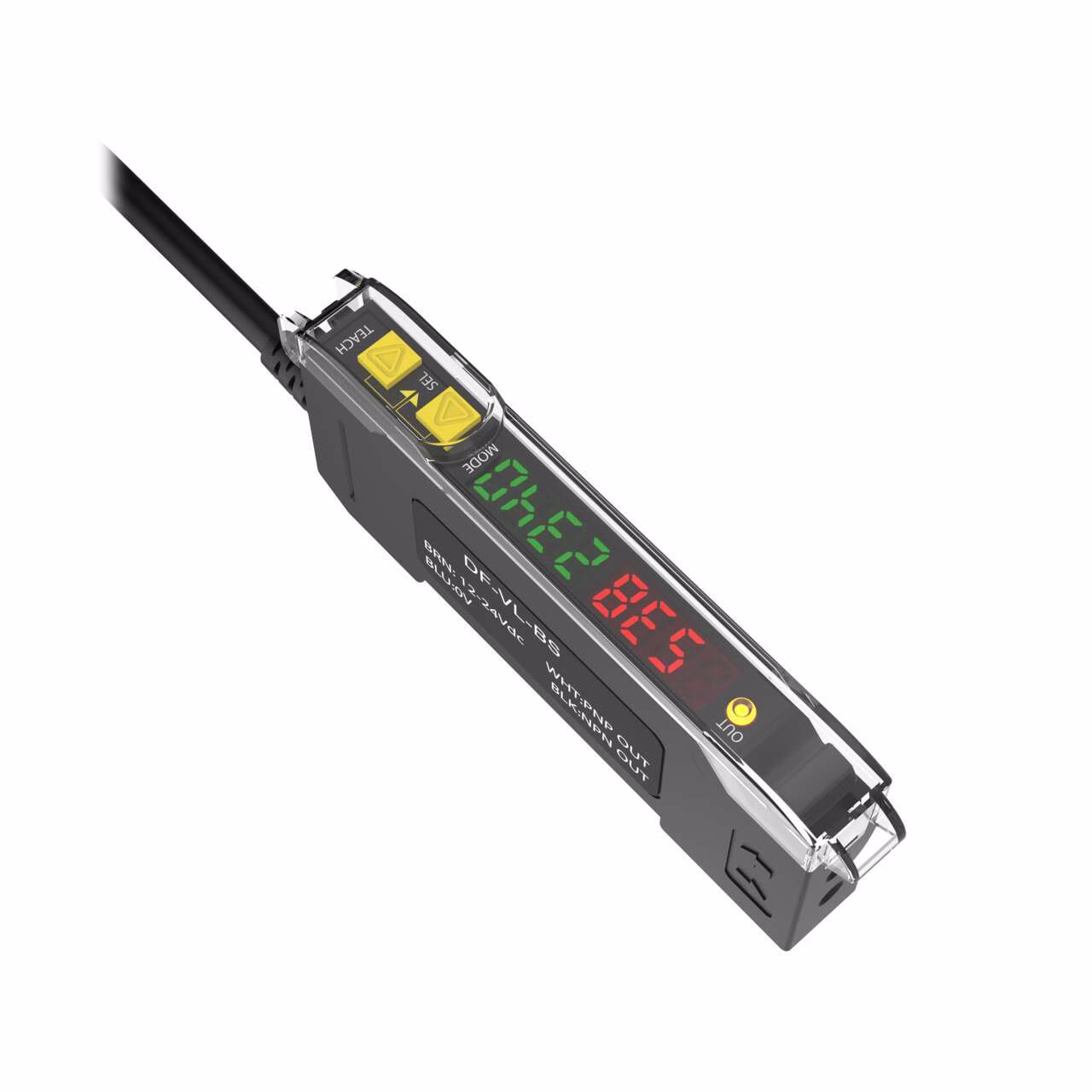

Banner – DF-VL-BS-2M
DF-VL Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 12-24 V dc
Output: Bipolar
2 m (6.5 ft) Cable
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Cable |
| Crosstalk Avoidance | No |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Dual Digital Displays |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 12-24 V dc |
| Adjustments | Teach Button |
| Feature | Timing (Hold/Delay) |
| Housing Style | DIN Rail |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Receptacle housing material B | ABS |
| Setting option | Bipolar (NPN & PNP) |
| Slot width (mm) | 2 |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -10.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 3000 |
| Max Op. Temperature (C) | 60.0 |
| Minimum Response Time (ms) | 0.3 |
Description
DF-VL Dual Display Fiber Amplifier
Range: Depends on Fiber; Input 12-24 V dc
Output: Bipolar
2 m (6.5 ft) Cable
