Splitters – Banner – CSE5A-M1251M1251

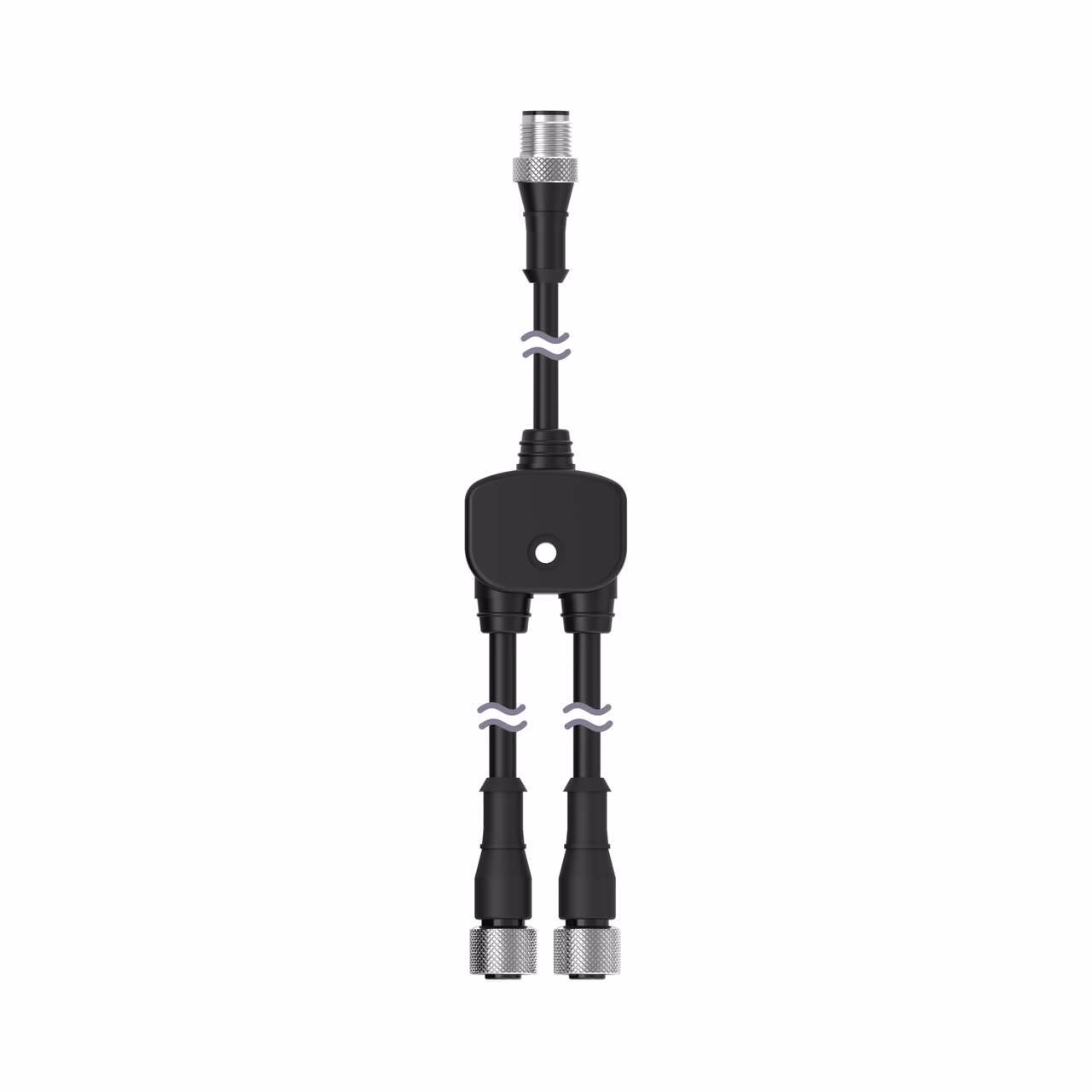

M12 QD Splitter Cable
5-pin Straight Male M12 0.3 m (1 ft) Trunk
5-pin Straight Female M12 0.3 m (1 ft) Branch 1
5-pin Straight Female M12 0.3 m (1 ft) Branch 2
Black Jacket; Nickel-Plated Brass Coupling Nuts
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 5, 5 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 5.0 |
| Trunk: Orientation | Straight |
| Wiring | Custom |
| Cable quality | PVC |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Connector type.1 | M12, M12 |
| Type | Y |
Description
M12 QD Splitter Cable
5-pin Straight Male M12 0.3 m (1 ft) Trunk
5-pin Straight Female M12 0.3 m (1 ft) Branch 1
5-pin Straight Female M12 0.3 m (1 ft) Branch 2
Black Jacket; Nickel-Plated Brass Coupling Nuts
