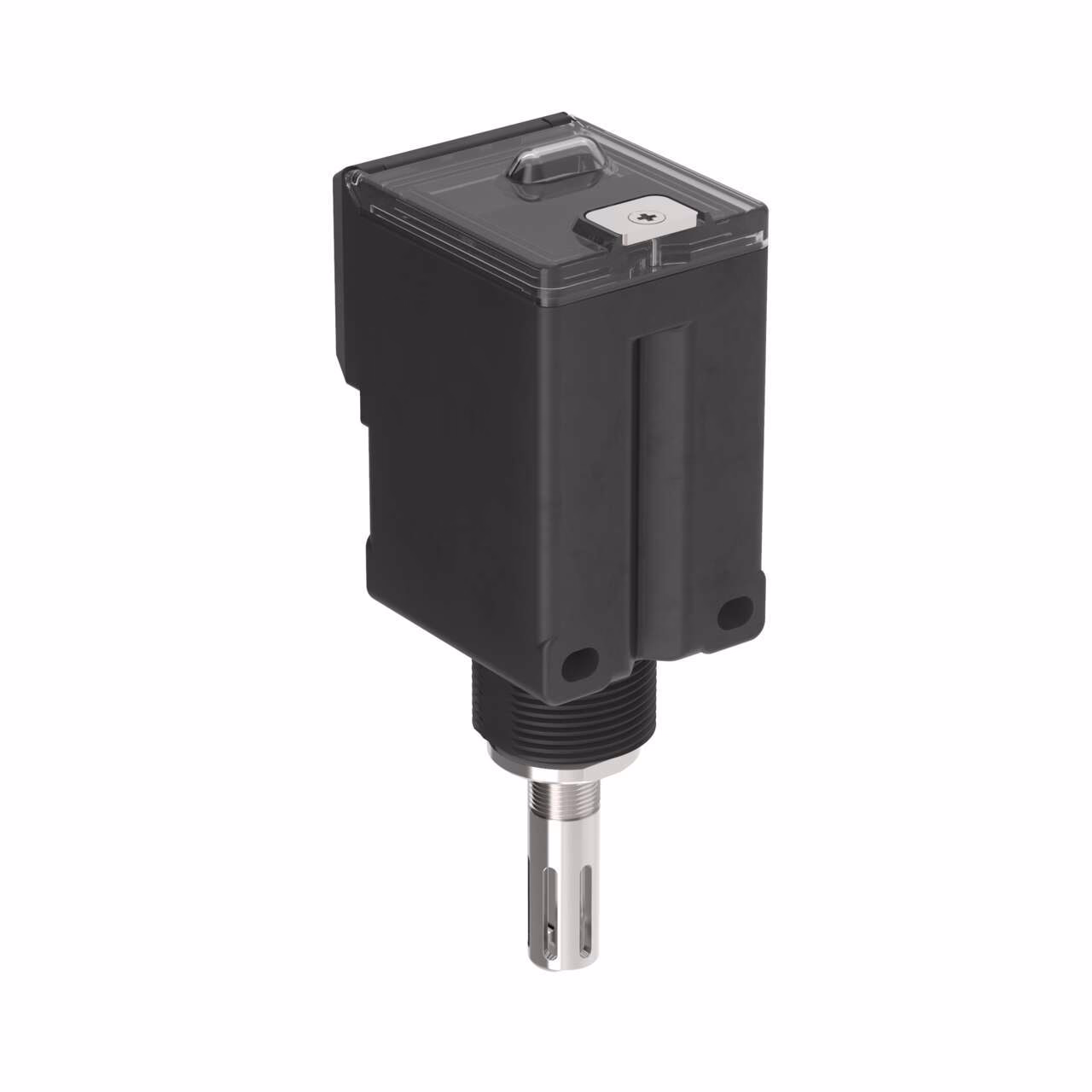

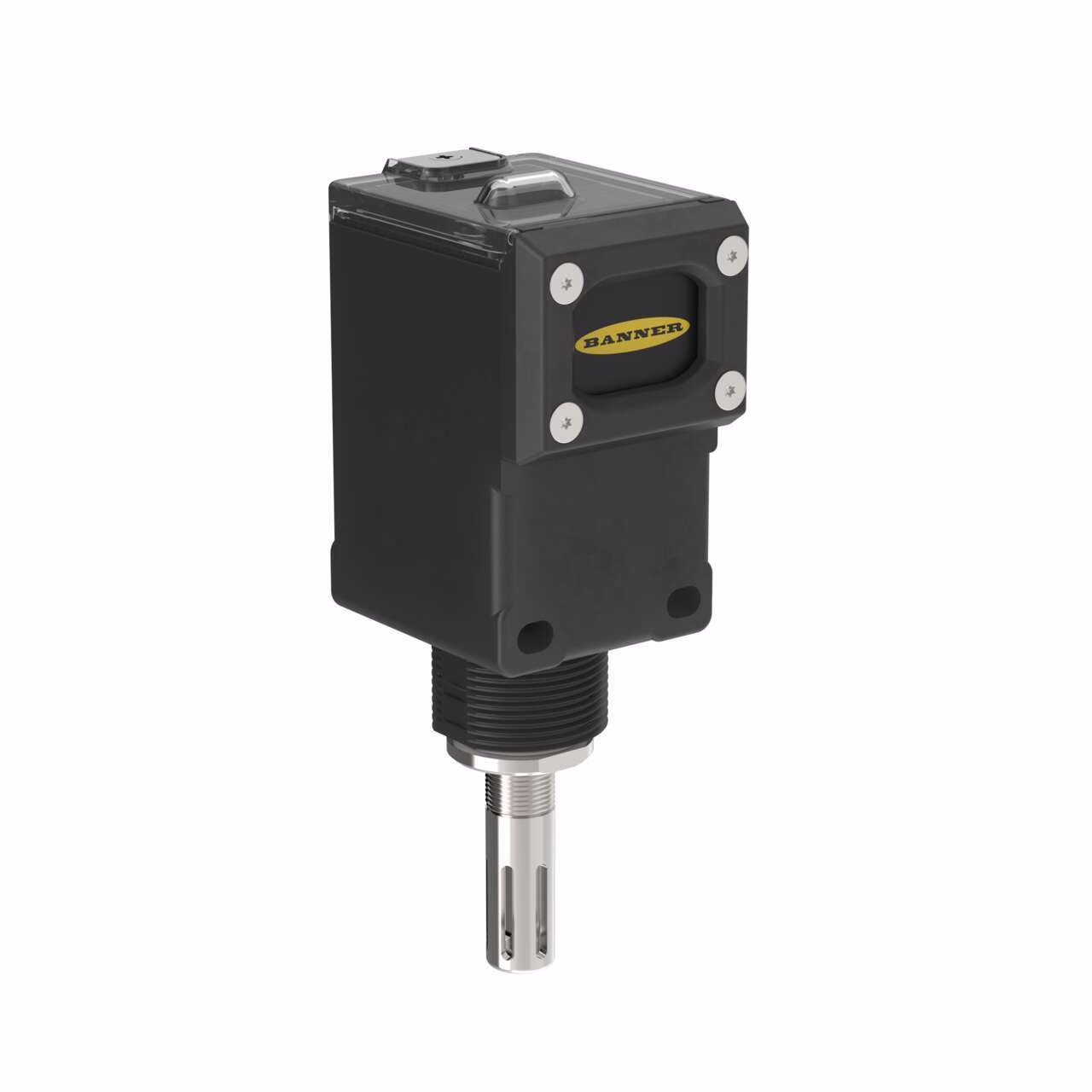

Banner – DX80N9Q45THA
Wireless Q45 900 MHz
with Integrated Temperature and Humidity
| 1-wire Serial Interface | Yes |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Banner Cloud ID | Yes |
| Condition Monitoring Sensor Type | Temperature, Humidity & Dew Point |
| Discrete Inputs | No |
| Discrete Outputs | No |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 70.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 90% at 50° C |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | Temperature/Humidity |
| Device type | Sensor and Node |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Serial |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 2 AA Batteries |
| Power Good Output | Battery |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Relative Humidity Input, Temperature Input |
Description
Wireless Q45 900 MHz
with Integrated Temperature and Humidity
