Banner – DXM1200-X2R4

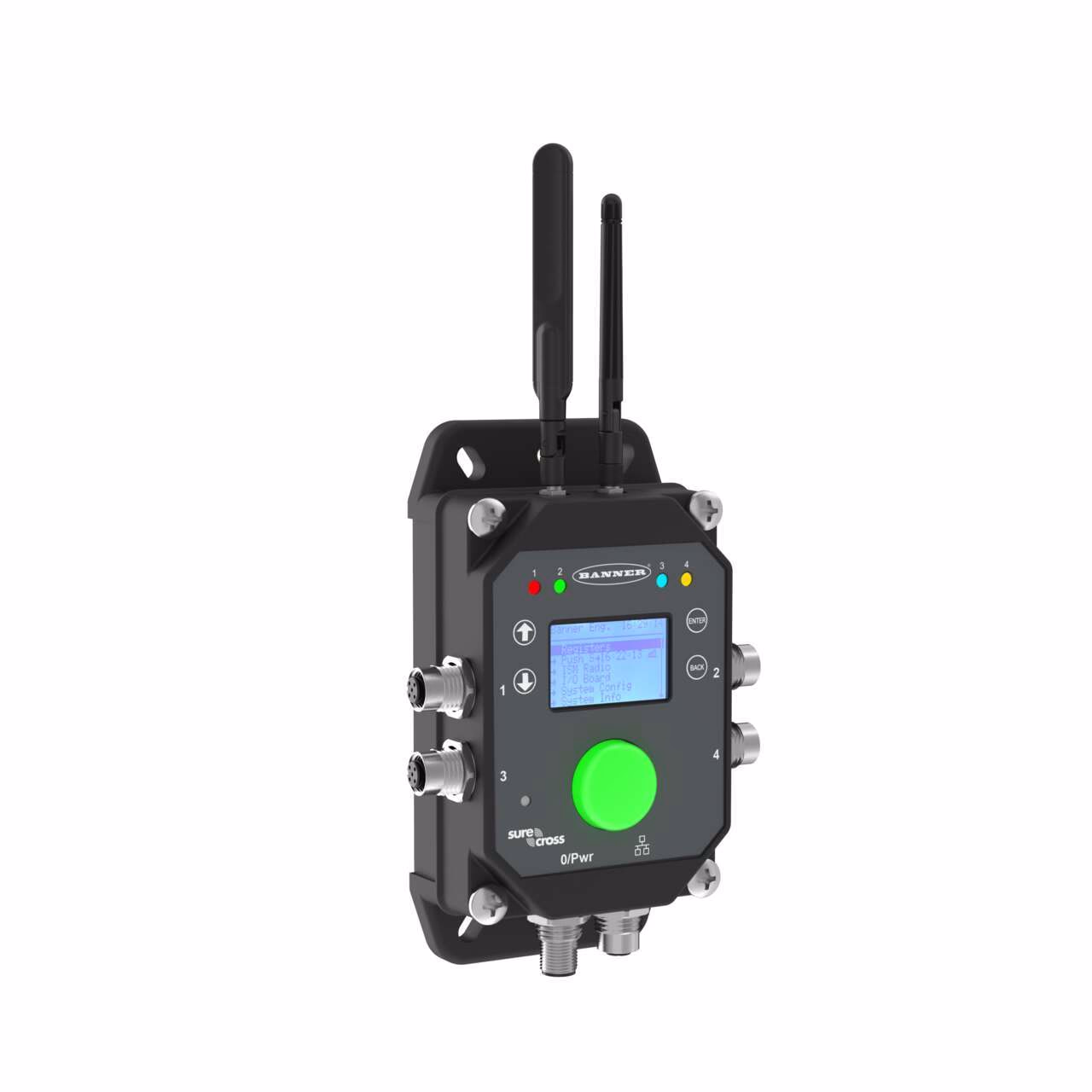

DXM1200 Industrial Controller: Multihop Radio 2.4 GHz
Power: 12-30 V dc; IP67
Ethernet IP, Modbus TCP, Modbus RTU Client, Profinet
Female M12 (D-Code Ethernet)
| 1-wire Serial Interface | No |
|---|---|
| Banner Cloud ID | No |
| Ethernet Connector Type | M12 (D-Code Ethernet) |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 60.0 |
| Min Temp Operating Conditions (C) | -20.0 |
| On-Board Memory (MB) | 16.0 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Processing Speed (MHz) | 300.0 |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Thailand, US |
| Device type | Wireless Controller with MultiHop Gateway |
| EPLAN Original Sent Date | 02/06/2024 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Housing Style | Rectangular |
| Input/Output | Serial (Modbus) |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light, Pick-to-Light |
| Options Available | Modbus |
Description
DXM1200 Industrial Controller: Multihop Radio 2.4 GHz
Power: 12-30 V dc; IP67
Ethernet IP, Modbus TCP, Modbus RTU Client, Profinet
Female M12 (D-Code Ethernet)
