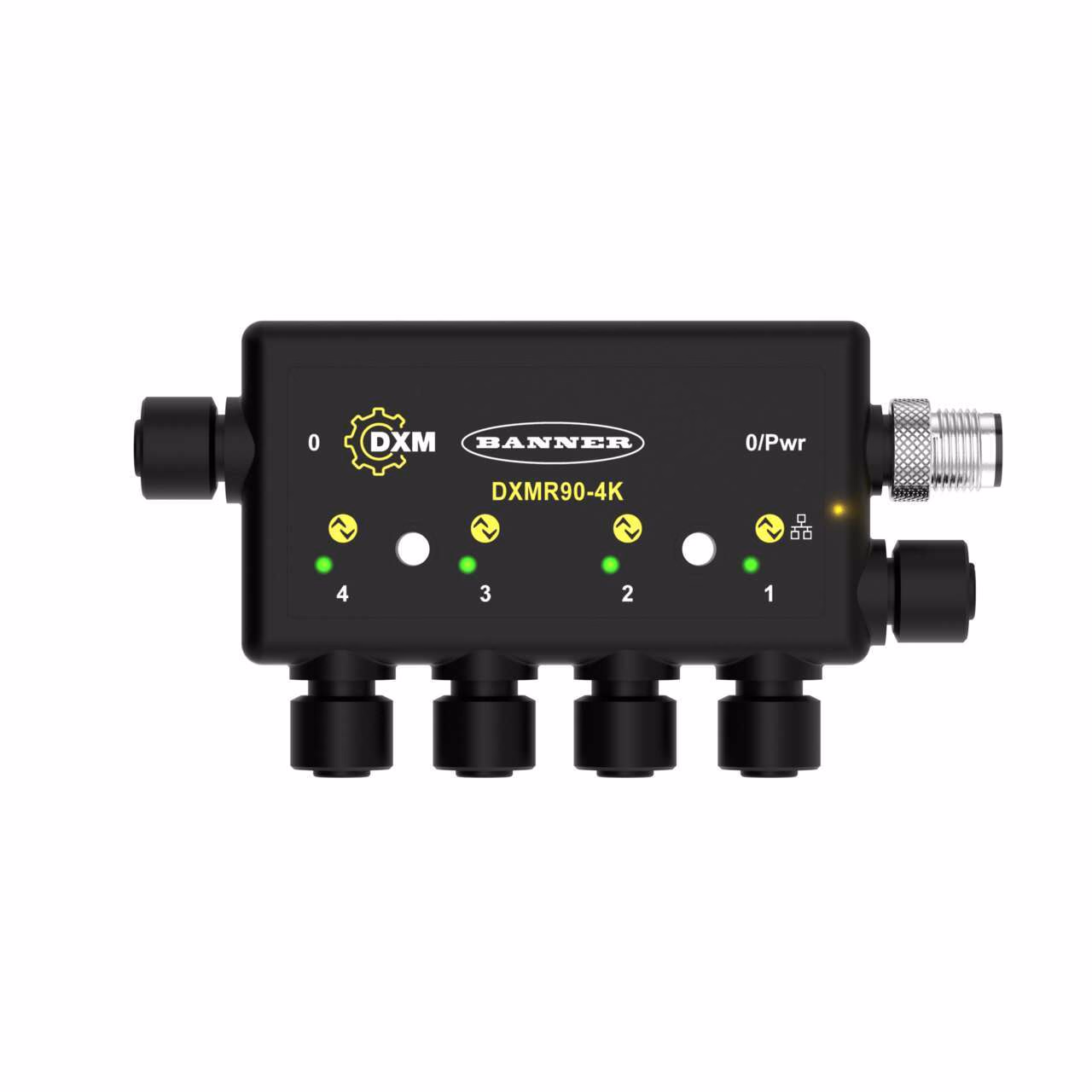

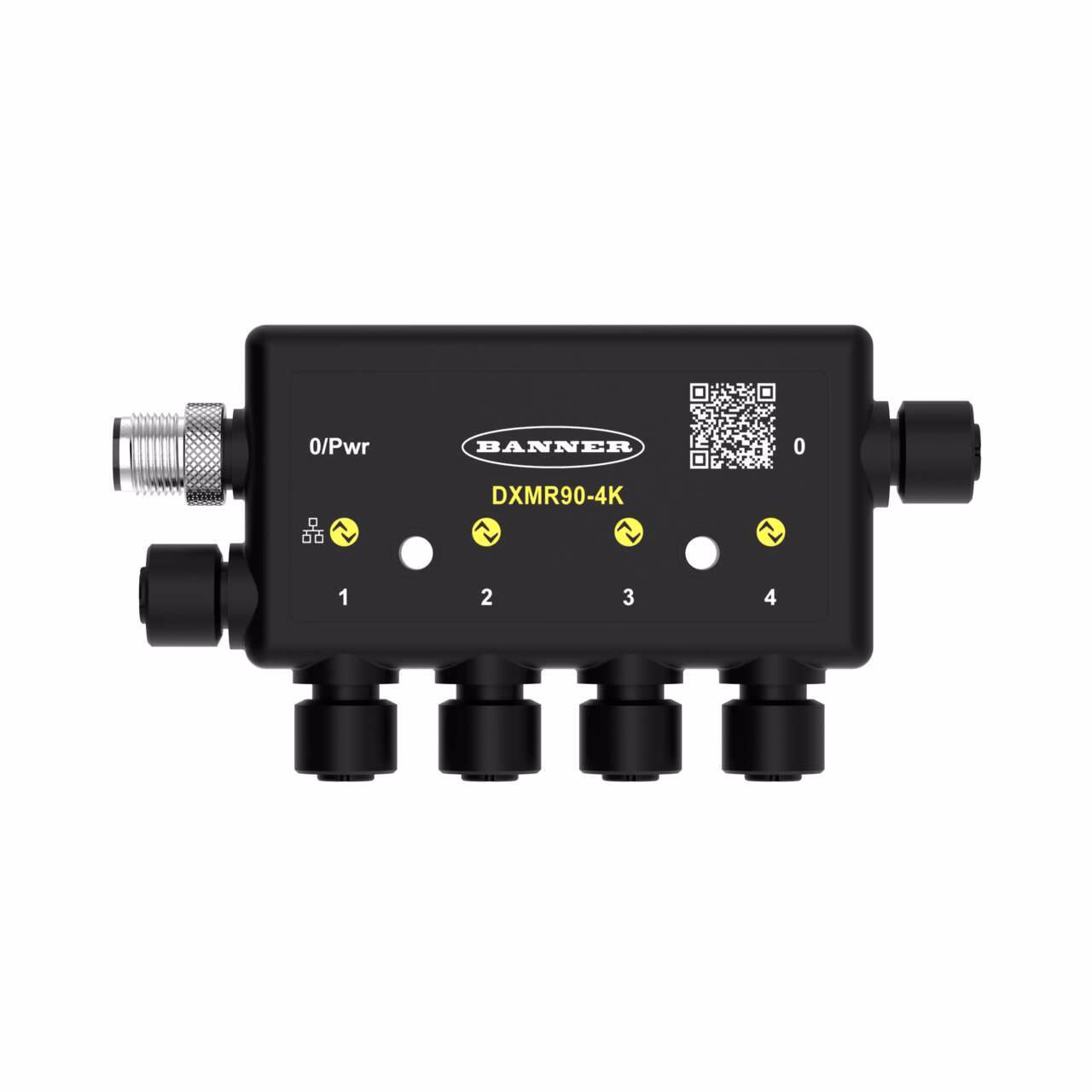

Banner – DXMR90-4K
DXMR90 IO-Link Master/Controller
Power: 18-30 V dc
Female M12 (D-Code Ethernet)
IP65, IP67
Ethernet IP, Modbus TCP, and Profinet
| 1-wire Serial Interface | No |
|---|---|
| Dimension Length (mm) | 90.0 |
| Ethernet Connector Type | M12 (D-Code Ethernet) |
| LCD Display | No |
| Device type | Controller |
| EPLAN Original Sent Date | 12/18/2025 |
| EPLAN Status | Pending Publish |
| EtherNet/IP | Yes |
| Housing Style | Flat |
| Input/Output | IO-Link |
| IO Link | Yes |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 18-30 V dc |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP65, IP67 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| IO-Link Master | Yes |
| Device Size (mm) | 50 x 90 |
| Environmental Rating (IP) | IP67; IP68 |
| Application.1 | Indicator Light |
| Options Available | Modbus |
Description
DXMR90 IO-Link Master/Controller
Power: 18-30 V dc
Female M12 (D-Code Ethernet)
IP65, IP67
Ethernet IP, Modbus TCP, and Profinet
