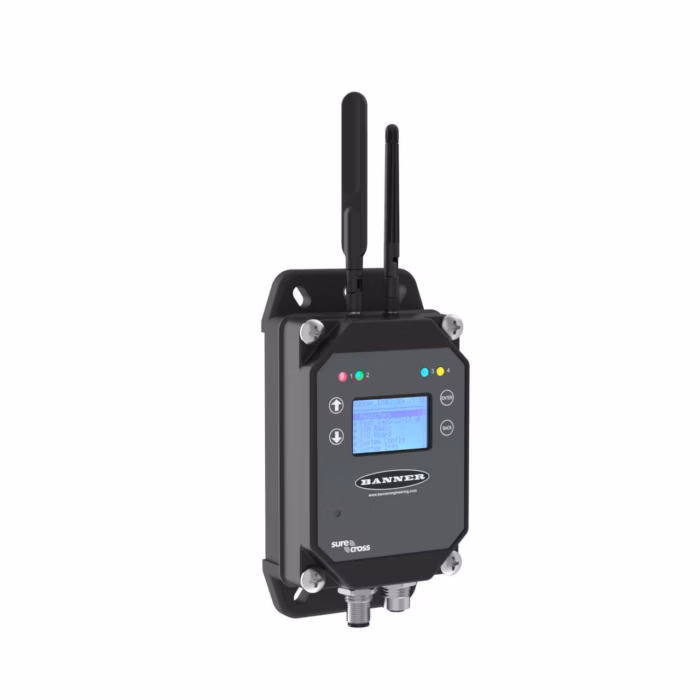

Banner – DXM700-B1
DXM700 Controller
I/O Base Board Only
Outputs: 4 PNP
M7 Processor, 16MB Memory, LCD Display
RS-485, Ethernet, USB
| 1-wire Serial Interface | No |
|---|---|
| Dimension Length (mm) | 70.0 |
| Discrete Output Type | PNP |
| Ethernet Connector Type | RJ45 Jack |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 60.0 |
| Min Temp Operating Conditions (C) | -20.0 |
| On-Board Memory (MB) | 16.0 |
| Output Details | 4 PNP |
| Processing Speed (MHz) | 300.0 |
| Tree Topology | No |
| Cert | Australia/New Zealand, Brazil, Korea |
| Device type | Wireless Controller |
| Digital output | 4 |
| EtherNet/IP | Yes |
| Housing Style | External Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP20 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light, Pick-to-Light |
| Options Available | Modbus |
Description
DXM700 Controller
I/O Base Board Only
Outputs: 4 PNP
M7 Processor, 16MB Memory, LCD Display
RS-485, Ethernet, USB
