Banner – K50LYXALSXPQ

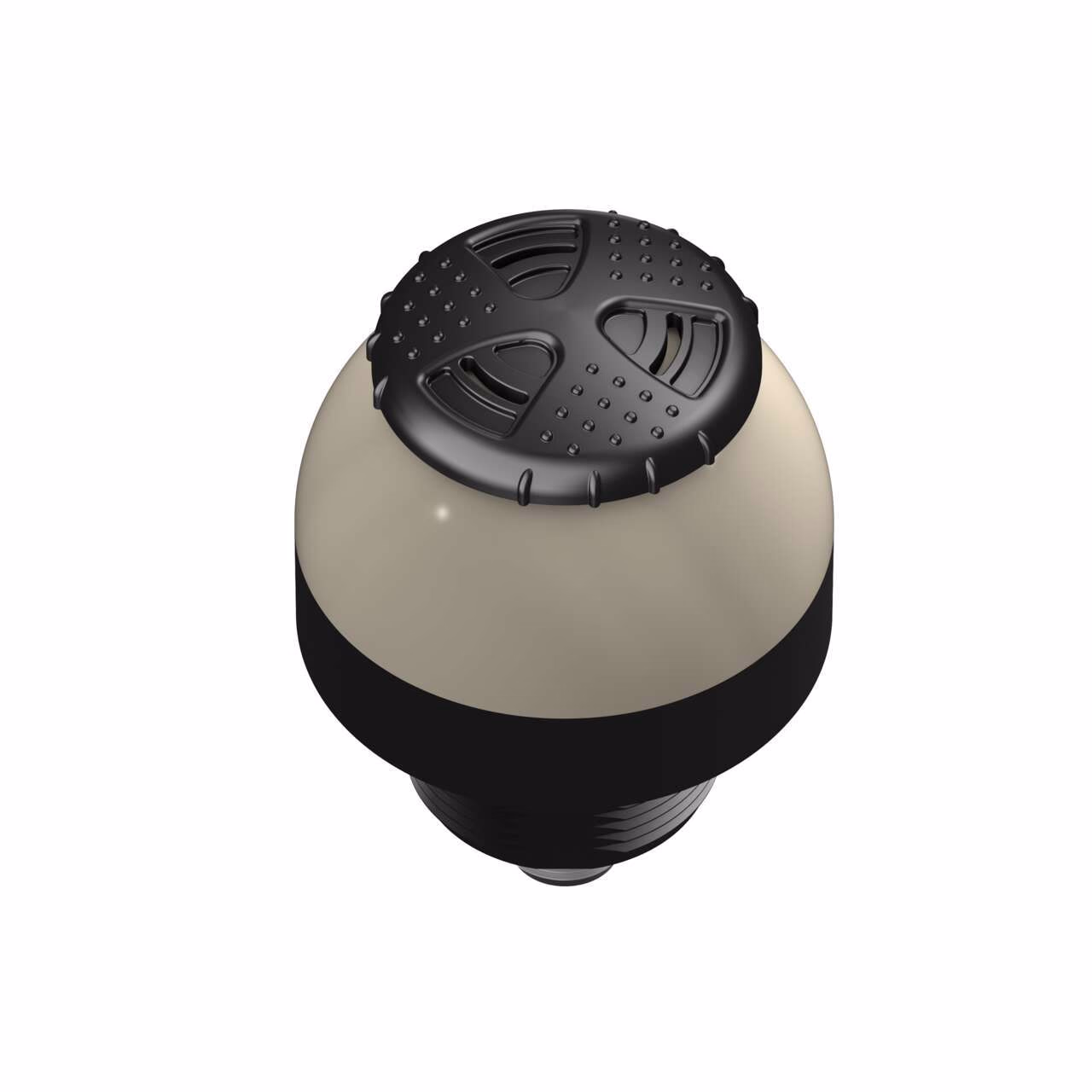

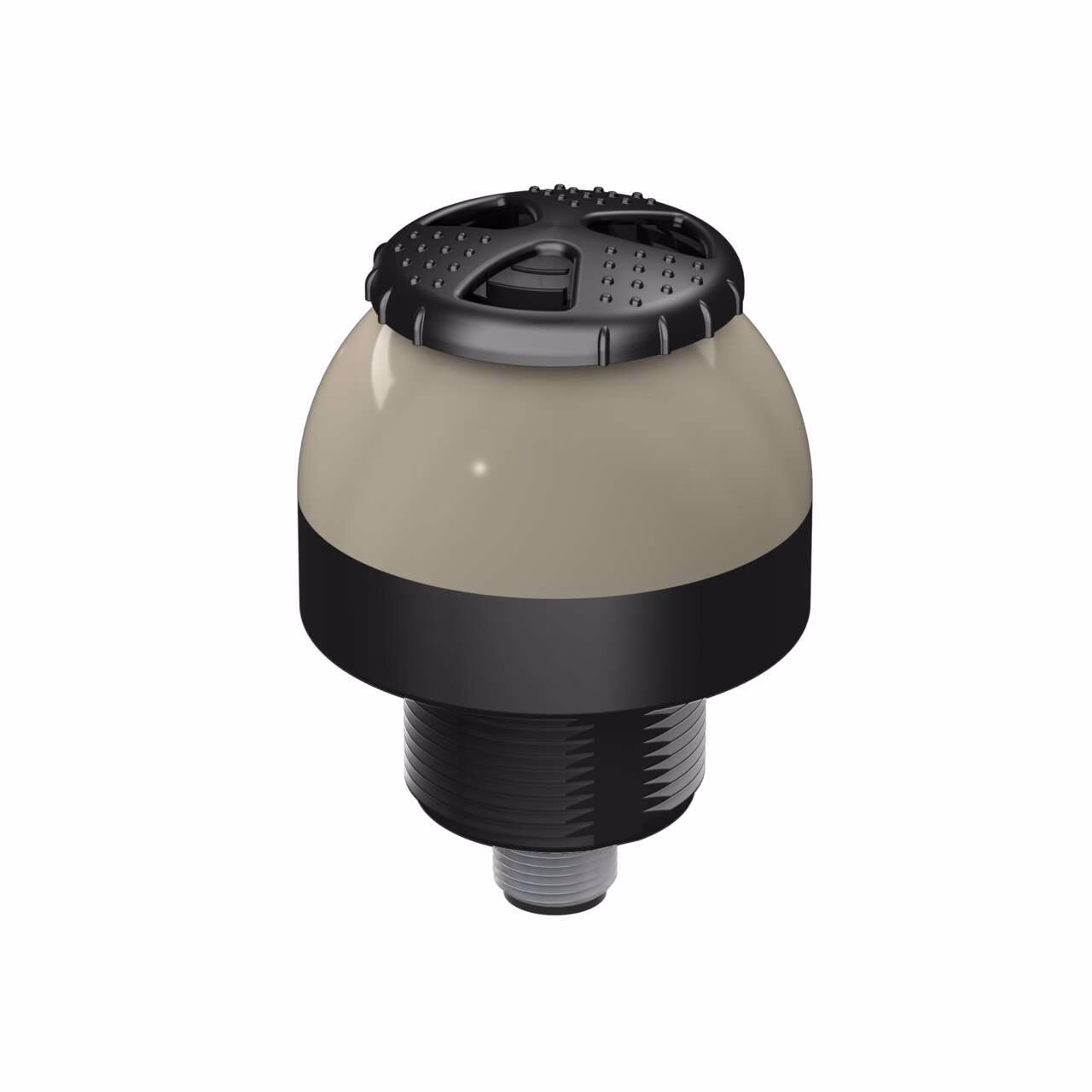

K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Tone: Loud; Input: PNP; Colors: Yellow
5-pin M12 Integral QD
| Audible Alarm Type | Continuous |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Discrete | Yes |
| Feature: Audible | Yes |
| Input Type | PNP |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Yellow |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Feature | Encapsulated, Quick Disconnect |
| Housing Style | Dome |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Max Audible Intensity (dB at 1m) | 94.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 70.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 73.0 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | No |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Switching frequency (kHz) | 2.9 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -20.0 |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 35.0 |
| Max Input Response Time (ms) | 1.0 |
| Max Current - Audible Alarm (mA) | 35.0 |
| Secondary Material | Thermoplastic |
Description
K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Tone: Loud; Input: PNP; Colors: Yellow
5-pin M12 Integral QD
