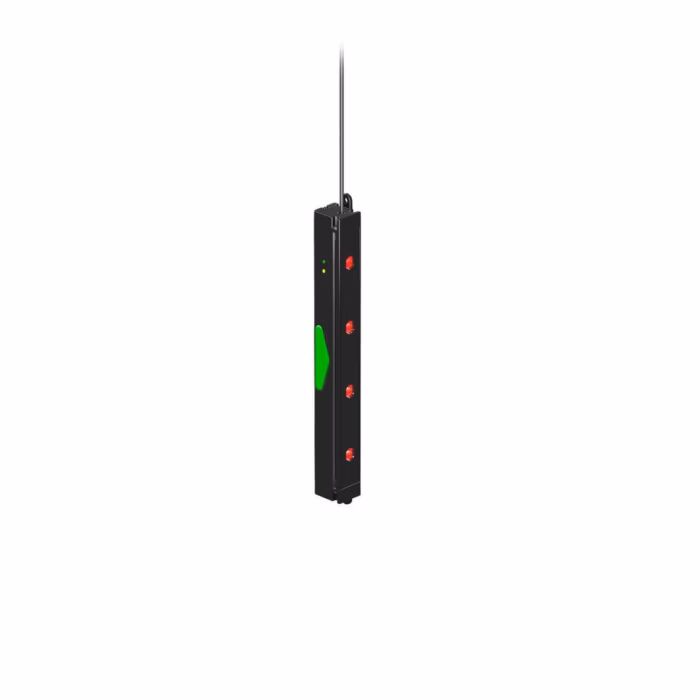

Banner – LX3ESR
LX Series: Emitter; Short Range
Range: Normal 100-200 mm; input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Max Sensing Range (mm) | 200 |
| Minimum Object Detection (mm) | 5.6 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Slot Depth/Array Length (mm) | 67 |
| Connection technology signal | Emitter |
| Homerun Exit Location | 0.8 ON/6 OFF |
| Housing Style | Array |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of measuring axes | 5.6 |
| Number of pins | 5 |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Max Op. Temperature (C) | 70 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Slot Overall Depth (mm) | 25.4 |
Description
LX Series: Emitter; Short Range
Range: Normal 100-200 mm; input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable
