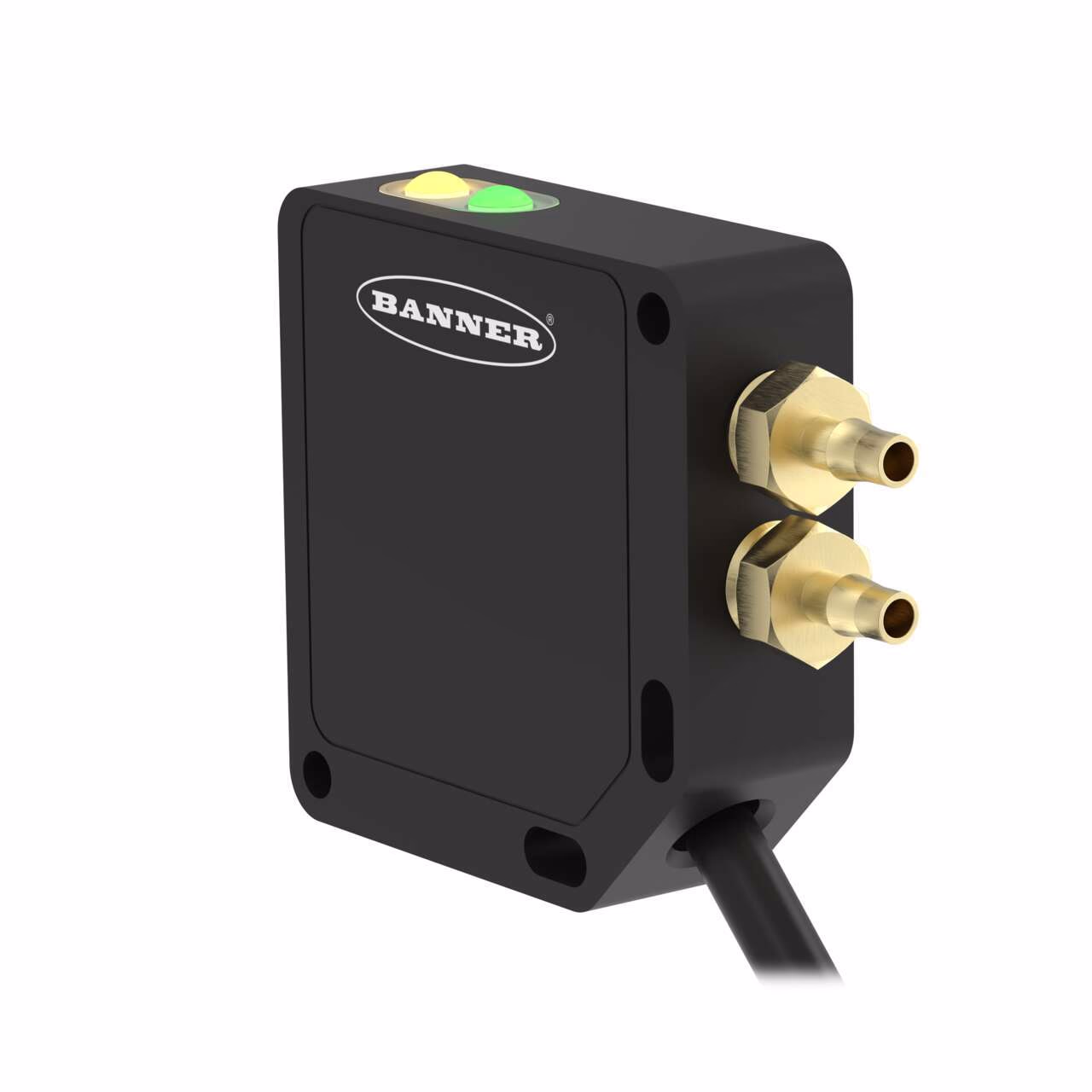

Banner – QM42-DPS5-2Q
Differential Pressure +/- 5 in W.C.
Modbus RS-485 Serial Interface
2.09 m (6.9 ft) 5-pin M12 Pigtail QD
| 1-wire Serial Interface | No |
|---|---|
| Condition Monitoring Sensor Type | Differential Pressure |
| Connection | Pigtail QD |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Temp Operating Conditions (C) | -25.0 |
| Tree Topology | No |
| Connection mode | Pressure |
| Device type | Sensor |
| EtherNet/IP | No |
| Housing Style | Rectangular |
| Input/Output | Serial (Modbus) |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Pressure type | Yes |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| Slot width (mm) | 0.15 |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Temperature Input |
Description
Differential Pressure +/- 5 in W.C.
Modbus RS-485 Serial Interface
2.09 m (6.9 ft) 5-pin M12 Pigtail QD
