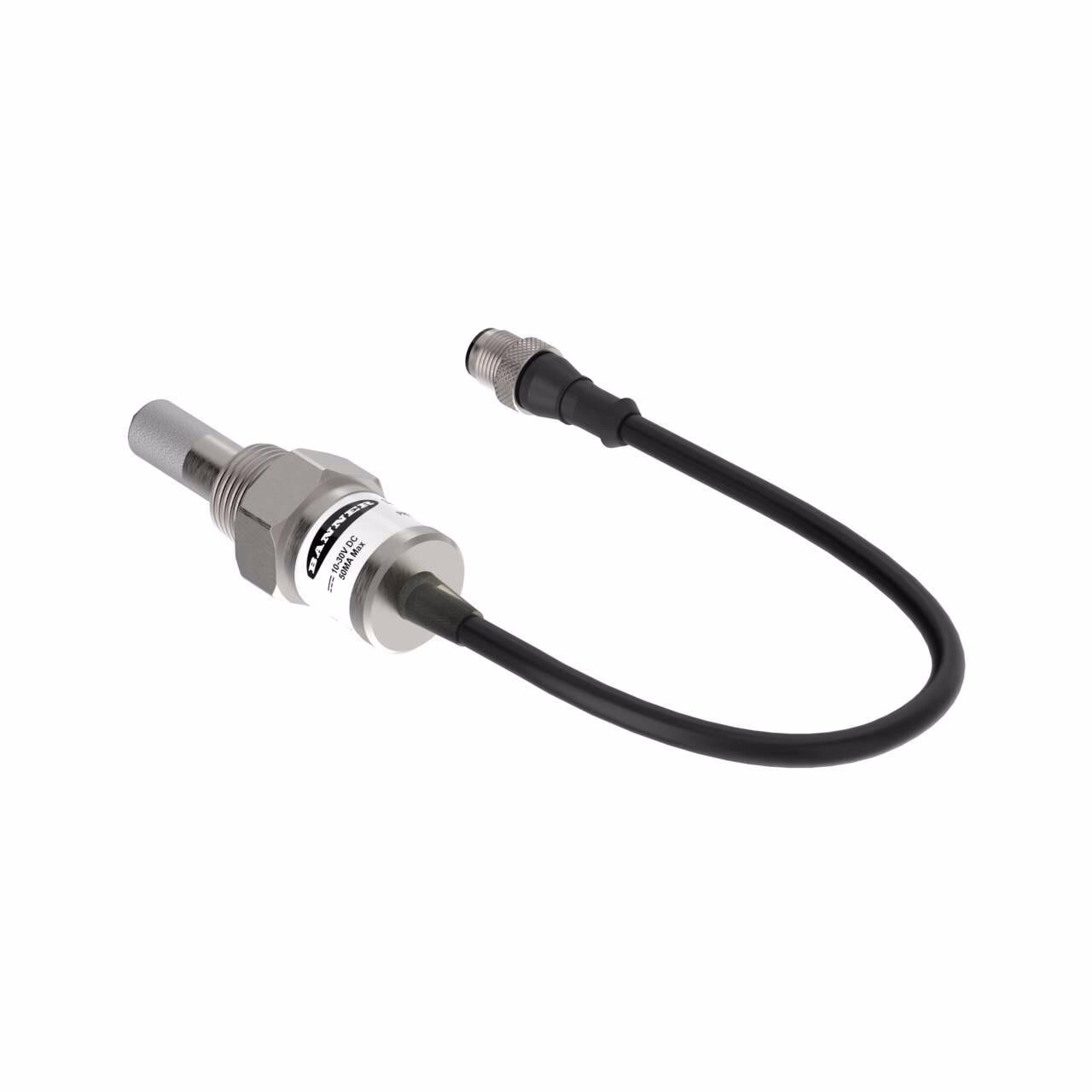

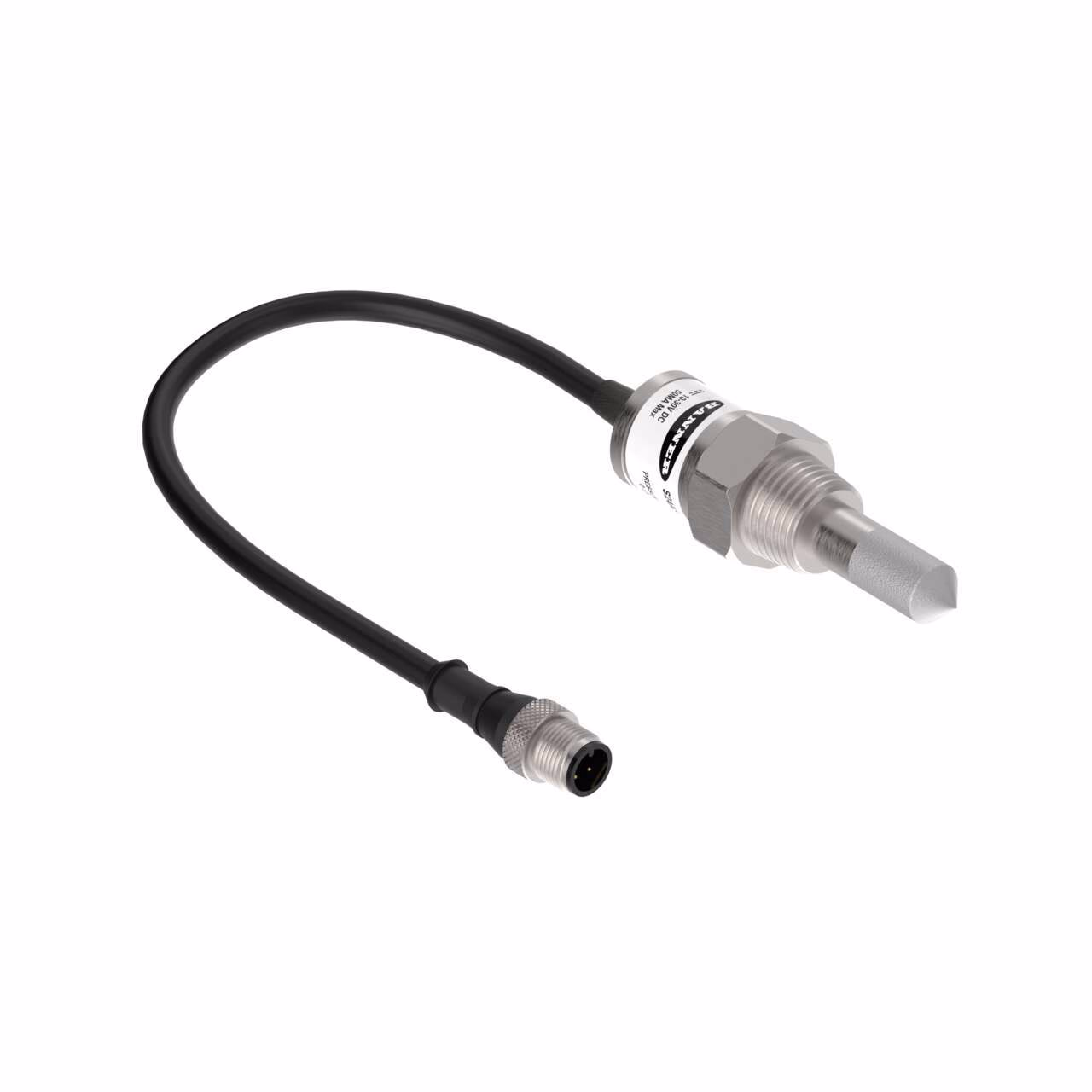

Banner – S24AS-D-MQP
Dewpoint Sensor
10-30 V dc; Modbus RTU
1/2 NPT Process fitting
M12 Pigtail QD
| 1-wire Serial Interface | No |
|---|---|
| Condition Monitoring Sensor Type | Temperature, Humidity & Dew Point |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Tree Topology | No |
| Connection mode | Temperature/Humidity/Dewpoint |
| Device type | Sensor |
| EPLAN Original Sent Date | 07/10/2023 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Input/Output | Serial (Modbus) |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP65, IP67, IP68 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Relative Humidity Input, Temperature Input |
Description
Dewpoint Sensor
10-30 V dc; Modbus RTU
1/2 NPT Process fitting
M12 Pigtail QD
