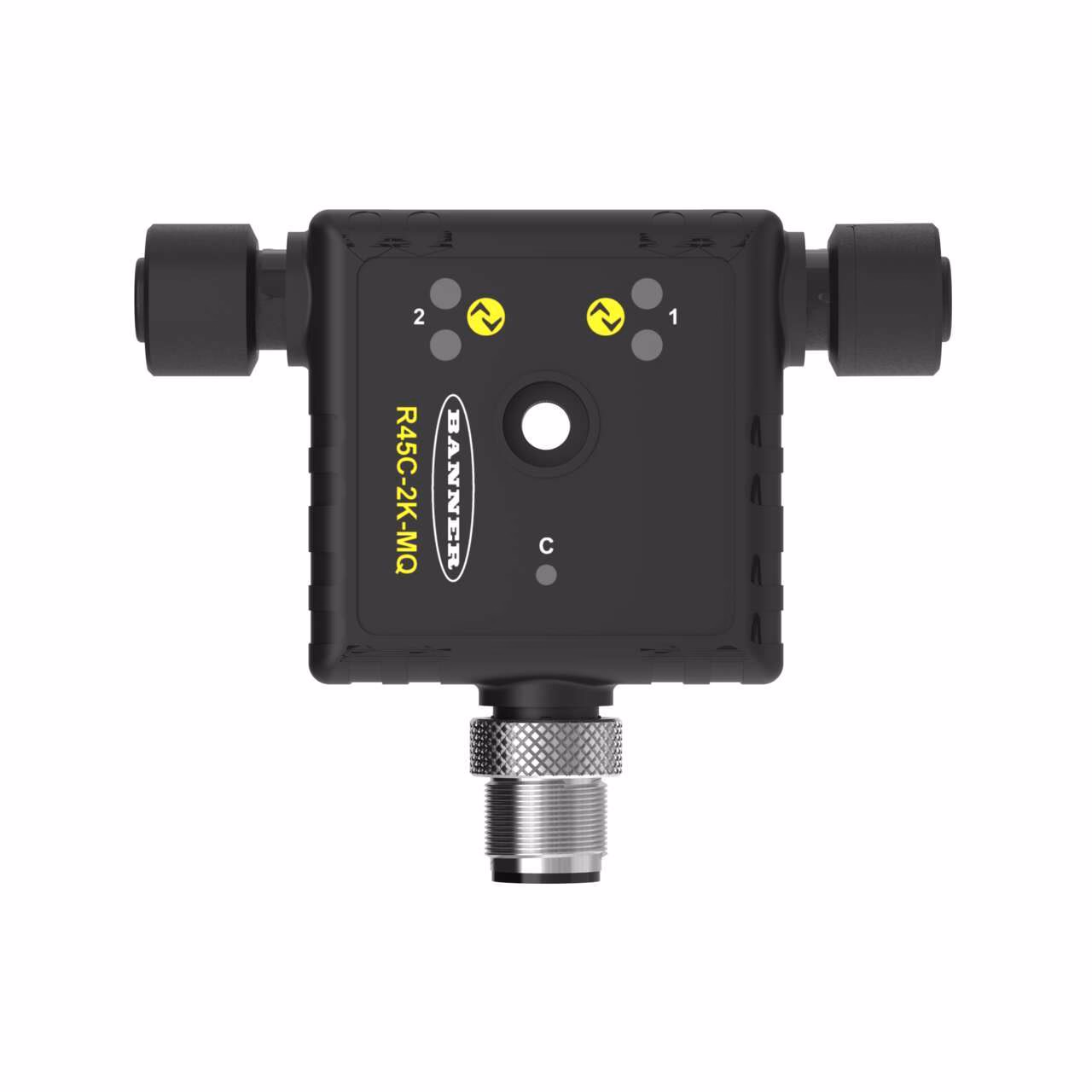

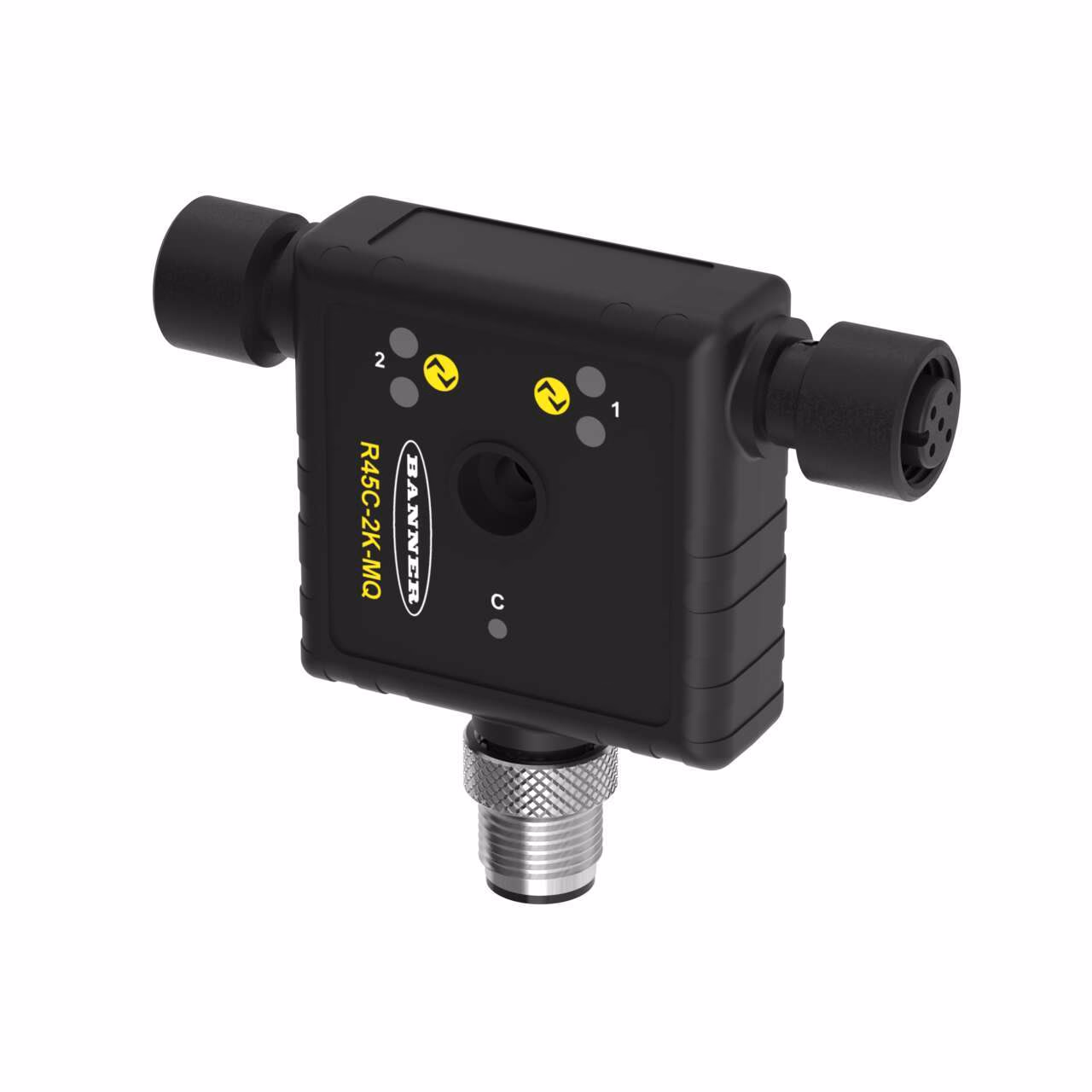

Banner – R45C-2K-MQ
R45C-2K-MQ 2-port IO-Link Master
Inputs: 2 IO-Link Devices
RS-485
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| EPLAN Status | Published |
| Housing Style | Flat |
| IO Link | Yes |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 18-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP65, IP67, IP68 |
| RS-485 | Yes |
| IO-Link Device | No |
| Modbus Server | Yes |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | Yes |
| Form Factor | R90 |
| Modbus Client | No |
| Device Size (mm) | 45 x 45 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <50 mA |
Description
R45C-2K-MQ 2-port IO-Link Master
Inputs: 2 IO-Link Devices
RS-485
